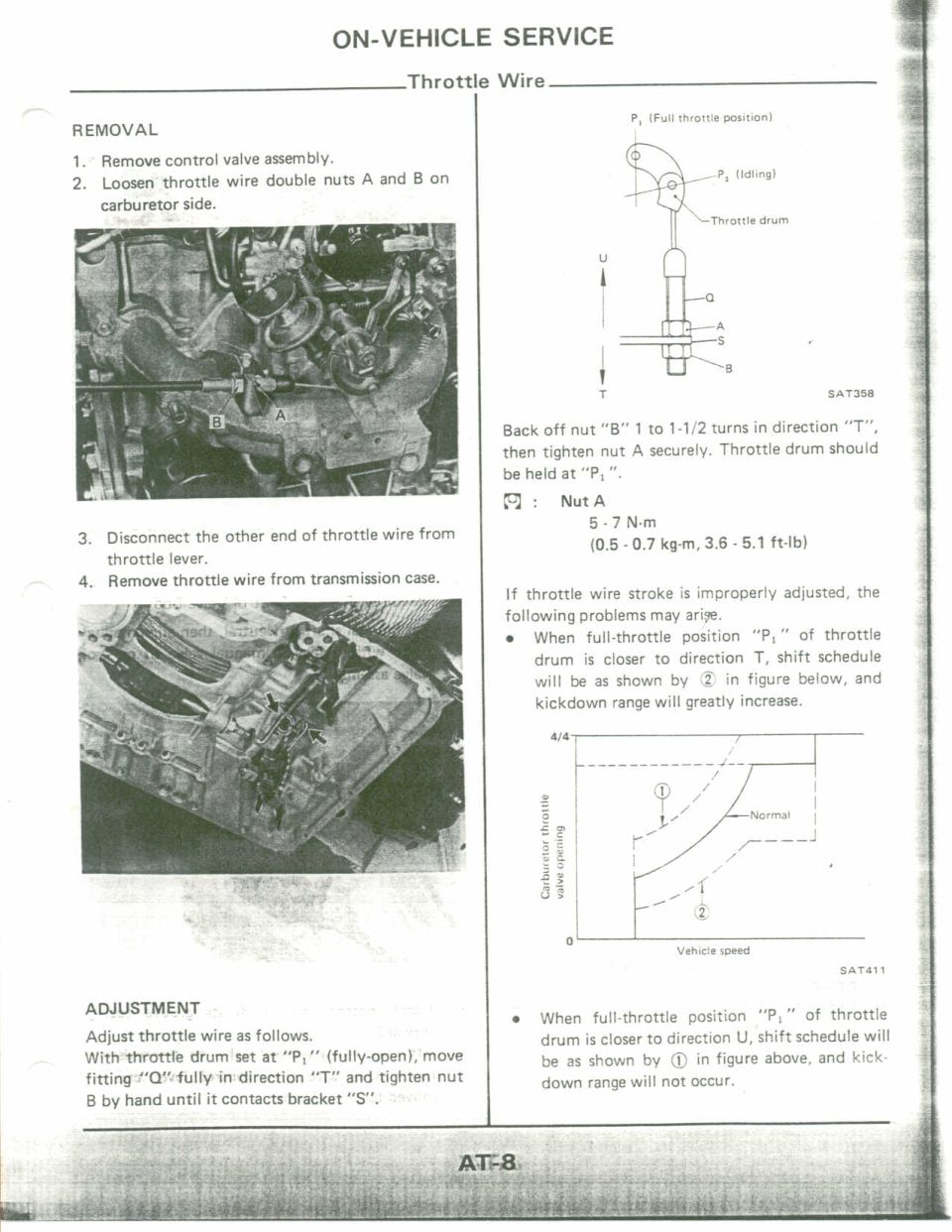

Automatic transmission service manual page on throttle wire remo…

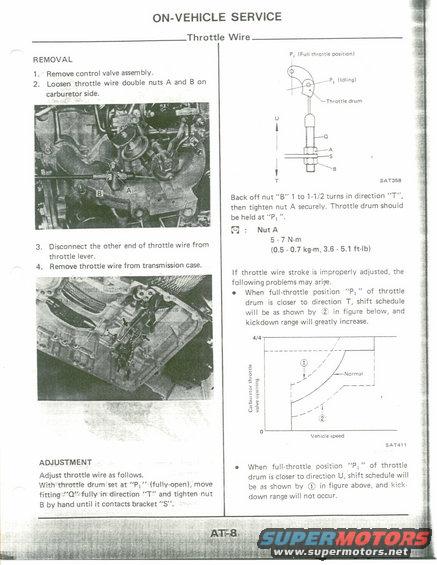

ON-VEHICLE SERVICE REMOVAL 1. Remove control valve assembly. 2. Loosen throttle wire double nuts A and B on carburetor side. 34 Disconnect the other end of throttle wire from throttle lever. 4. Remove throttle wire from transmission case. ADJUSTMENT Adjust throttle wire as follows. With throttle drum set at "F," (fullyopen), move fitting "0" fully in direction T" and tighten nut B by hand until it contacts bracket 5 Throttle Wire Pl mm mmme position] :/ a Armonie drum u i o ' A ' s l E B 7 snasa Back off nut B 1 to 1-1/2 turns in direction ,T then tighten nut A securely. Throttle drum should be held at "P, P1 : Nut A 5 - 7 Nam (05 - 0.7 kg-m, 3.6 - 5.1 ft-lb) If throttle wire stroke is improperly adjusted, the following problems may arise. 0 When full-throttle position "P, of throttle drum is closer to direction T, shift schedule will be as shown by f in figure below, and kickdown range will greatly increase. AMH , _ Vehicm speed SAl'dl I 0 When fuilrthrottle position "Pr " of throttle drum is closer to direction U, shift schedule will be as shown by (D in figure above. and kick down range will not occur.
