What does the AT-15 Major Overhaul page show?

It shows a full exploded parts diagram of the automatic transaxle, labeling all components from the differential assembly and final gear through the governor, band servo, control valve assembly, parking mechanism, and oil pan.

Where does the manual say to look for brake band adjustment?

A callout reads 'Adjust brake band – Refer to Minor Adjustment for brake band.'

How is the differential side bearing shim selected?

The diagram notes 'Select shim – Refer to Diff. Side Bearing Preload Adjustment' for the shim at the differential side bearing.

Where is throttle wire adjustment covered?

The throttle wire assembly callout states 'Adjust throttle wire – Refer to On-Vehicle Service.'

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/252941

Nissan Micra Automatic Transaxle Major Overhaul Exploded Diagram (AT-15)

Major overhaul exploded diagram of automatic transaxle showing gears, clutches, servo, governor and case components

‹ ›

Exploded parts diagram (AT-15) of the automatic transaxle major overhaul with all internal components labeled.

AI caption October 2005 · Photo 197 of 412

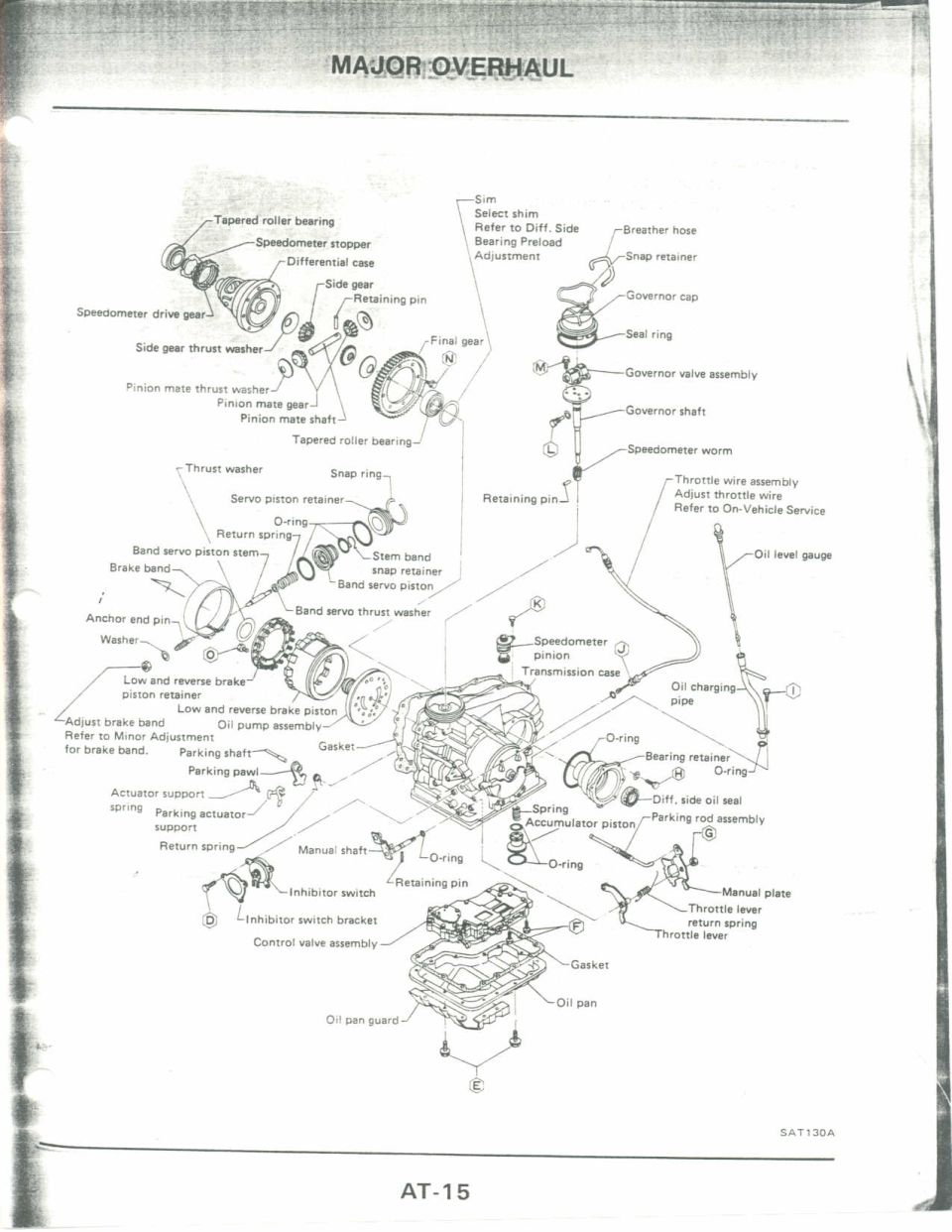

This document is page AT-15 from a Nissan factory service manual, showing a complete exploded parts diagram for the 'Major Overhaul' of an automatic transaxle. The single large illustration identifies every major component and its assembly order, including the differential assembly (differential case, side gears, pinion mate gears and shafts, thrust washers, tapered roller bearings, speedometer drive gear, final gear), the governor assembly (governor cap, seal ring, governor valve assembly, governor shaft, speedometer worm), the band servo (servo piston retainer, return spring, band servo piston stem, brake band, anchor end pin), the low and reverse brake piston, oil pump assembly, parking mechanism (parking shaft, pawl, actuator support, parking rod assembly, manual plate), manual shaft, inhibitor switch and bracket, control valve assembly, accumulator piston with spring and O-rings, bearing retainer, differential side oil seal, throttle lever with return spring, throttle wire assembly, oil level gauge, oil charging pipe, gaskets, oil pan and oil pan guard. The diagram also includes cross-references directing the reader to 'Diff. Side Bearing Preload Adjustment' for shim selection, 'Minor Adjustment' for brake band adjustment, and 'On-Vehicle Service' for throttle wire adjustment. Circled letters (D–O) key specific fasteners/points. Figure reference SAT130A.
