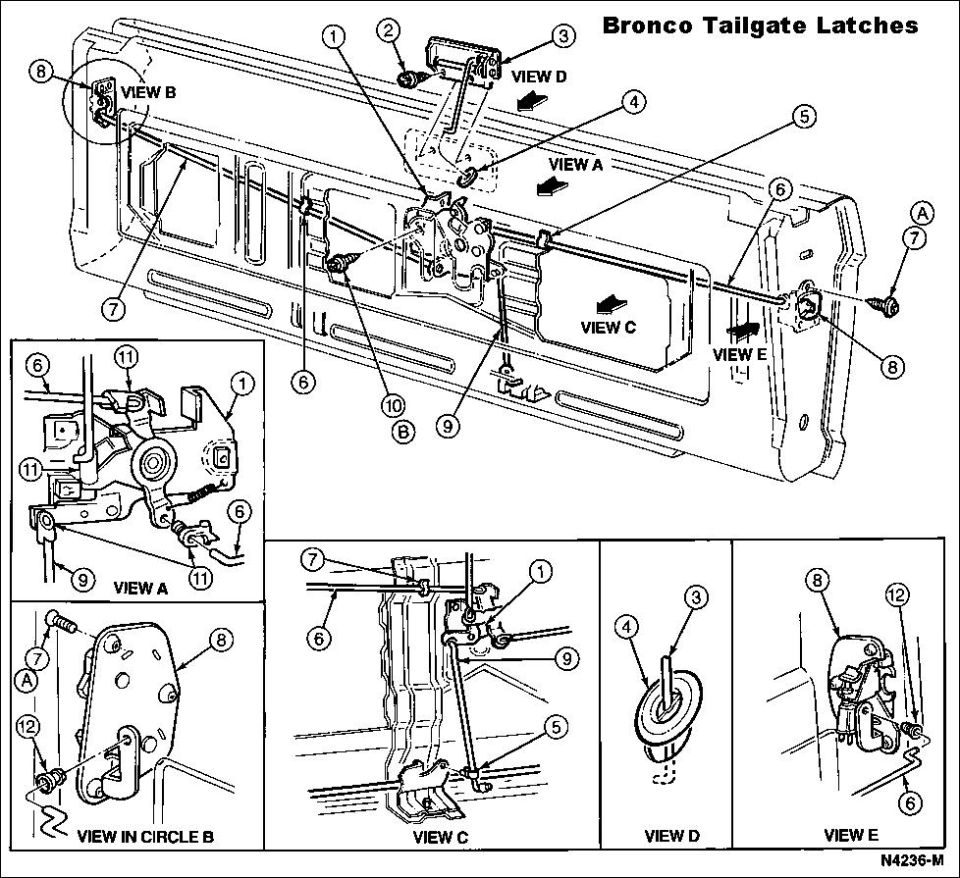

Bronco tailgate latch assembly exploded diagram

Latches

1 Tailgate Latch Remote Control D8TZ-9843170-B (JBG 34520)
2 Screw 56950-S55
3 Tailgate Latch Release Handle 431C62
4 Plug Button 388016-S
5 Clip 98431F72 (382929-S) AuVeCo 23307
6 Tailgate Latch Release Link 43868
7 Screw and Washer 387819-S103
8 Tailgate Latch Bracket 431D76
9 Tailgate Latch Control Rod 9843880
10 Screw and Washer 57502-S2
11 Clip 389666-S
12 Bushing 386656-S
A Tighten to 3-8 N-m (27-71 Lb-In)
B Tighten to 9-14 N-m (80-124 Lb-In)

The torsion bar retainer (430A32) in View C is available from Dennis Carpenter as 98430A30

For a writeup on installation & alignment, read this:
http://www.fourdoorbronco.com/board/showthread.php?t=5224
