What does the Green wire on the Commando EZ 2100 connect to?

The Green wire is the Spark Plug Sense Wire; it is wrapped around the vehicle's spark plug wires.

Which wires on the EZ 2100 handle ignition and starter functions?

Purple is the starter wire, Orange is accessory, Yellow is ignition #1, Brown is ignition #2, and the two Red wires (Red 1 and Red 2) are constant power.

Where does the Yellow wire on the right side of the module connect?

To the (+) brake light switch — the wire that only has power when the brake pedal is pressed.

What are the dip switch settings on the Commando EZ 2100?

Default is ON. Turn off for: 1. Tach/Spark Sense, 2. Vacuum Switch, 3. Long Crank, 4. Diesel.

What does the Gray wire do on the EZ 2100?

It is a ground output when the engine is running, used for additional features such as a VATS system or an anti-grind relay.

Home/ Registry/ Jeep/ Wrangler/ 1997-2006/ “Ruby”/ Photo supermotors.net/registry/media/289619

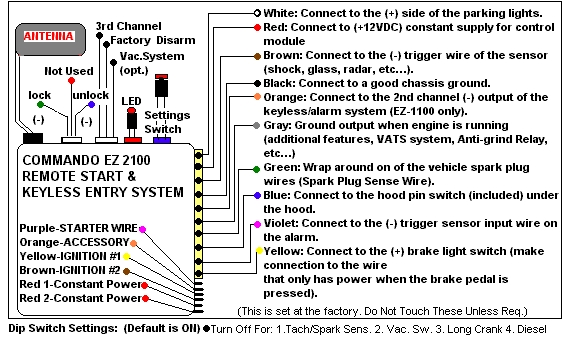

Commando EZ 2100 Remote Start & Keyless Entry Wiring Diagram - Wire Color Guide

Commando EZ-2100 remote start and keyless entry system wiring connection legend

‹ ›

Wiring connection diagram for a Commando EZ-2100 remote start/keyless entry module listing color-coded wires and their hookup functions.

AI caption February 2006 · Photo 129 of 364

This document is a wiring/installation diagram for the Commando EZ 2100 Remote Start & Keyless Entry System control module. It shows the module with its antenna and identifies all wire connections. On the left side, the high-current harness wires are labeled: Purple (starter wire), Orange (accessory), Yellow (ignition #1), Brown (ignition #2), and two Red wires for constant power. Top connections include lock (-) and unlock (-) outputs, a 3rd channel/factory disarm wire, an optional vacuum system connection, an LED, and a settings switch; one connector is marked 'Not Used.' The right side legend explains each colored wire: White to (+) parking lights, Red to +12VDC constant supply, Brown to a sensor's (-) trigger wire, Black to chassis ground, Orange to the 2nd channel (-) output (EZ-1100 only), Gray as a ground output when the engine is running (for VATS, anti-grind relay, etc.), Green wrapped around spark plug wires as a tach/spark sense wire, Blue to the included hood pin switch, Violet to the alarm's (-) trigger sensor input, and Yellow to the (+) brake light switch. A footnote lists dip switch settings (default ON) to turn off for tach/spark sense, vacuum switch, long crank, or diesel applications. Some connections are factory-set and should not be altered.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What does the Green wire on the Commando EZ 2100 connect to?: The Green wire is the Spark Plug Sense Wire; it is wrapped around the vehicle's spark plug wires.
Which wires on the EZ 2100 handle ignition and starter functions?: Purple is the starter wire, Orange is accessory, Yellow is ignition #1, Brown is ignition #2, and the two Red wires (Red 1 and Red 2) are constant power.
Where does the Yellow wire on the right side of the module connect?: To the (+) brake light switch — the wire that only has power when the brake pedal is pressed.
What are the dip switch settings on the Commando EZ 2100?: Default is ON. Turn off for: 1. Tach/Spark Sense, 2. Vacuum Switch, 3. Long Crank, 4. Diesel.
What does the Gray wire do on the EZ 2100?: It is a ground output when the engine is running, used for additional features such as a VATS system or an anti-grind relay.
