Nissan Micra Body Alignment - Engine Compartment Reference Points (BF-24)

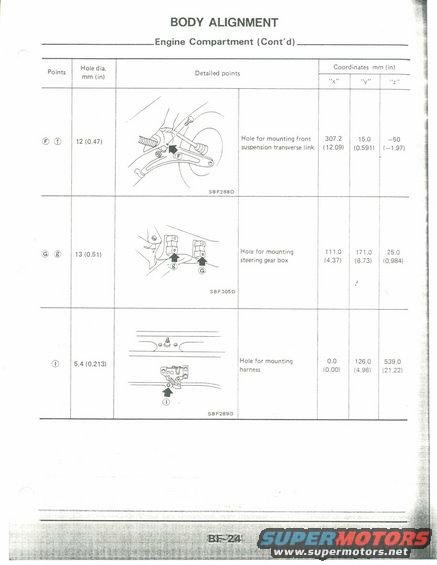

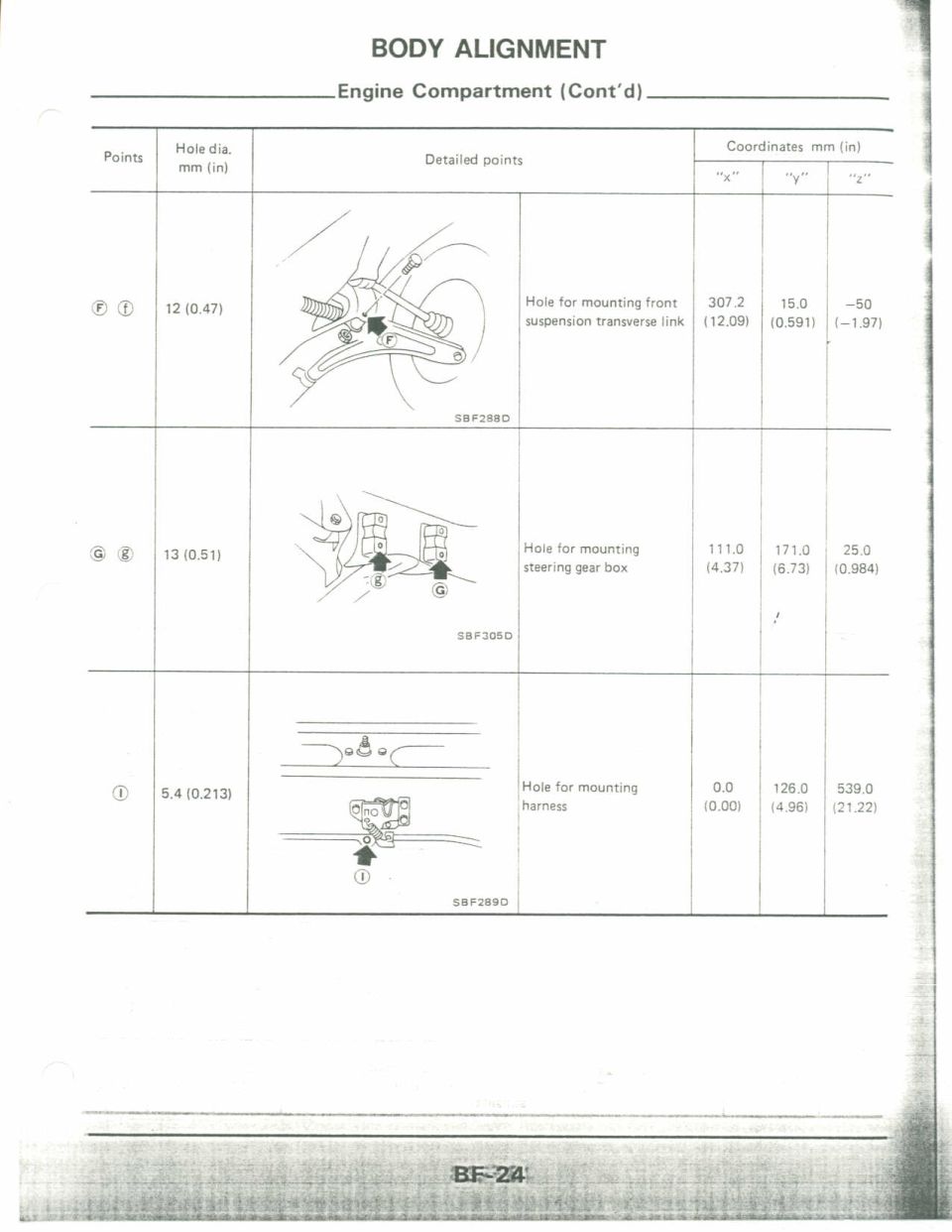

This document is one page (BF-24) from a factory body/frame service manual section titled "Body Alignment – Engine Compartment (Cont'd)." It presents a table of body alignment reference points in the engine compartment, each identified by a letter (F/f, G/g, and I), with the hole diameter in millimeters and inches, an illustration showing the location of each hole, a description of the detailed point, and its X, Y, and Z coordinates in both millimeters and inches. Point F (12 mm / 0.47 in hole) is the hole for mounting the front suspension transverse link, at coordinates x=307.2 mm (12.09 in), y=15.0 mm (0.591 in), z=−50 mm (−1.97 in). Point G (13 mm / 0.51 in hole) is the hole for mounting the steering gear box, at x=111.0 (4.37), y=171.0 (6.73), z=25.0 (0.984). Point I (5.4 mm / 0.213 in hole) is the hole for mounting the harness, at x=0.0 (0.00), y=126.0 (4.96), z=539.0 (21.22). Illustration reference codes SBF288D, SBF305D, and SBF289D accompany each row. This data is used for checking and repairing body/chassis alignment after collision damage.
