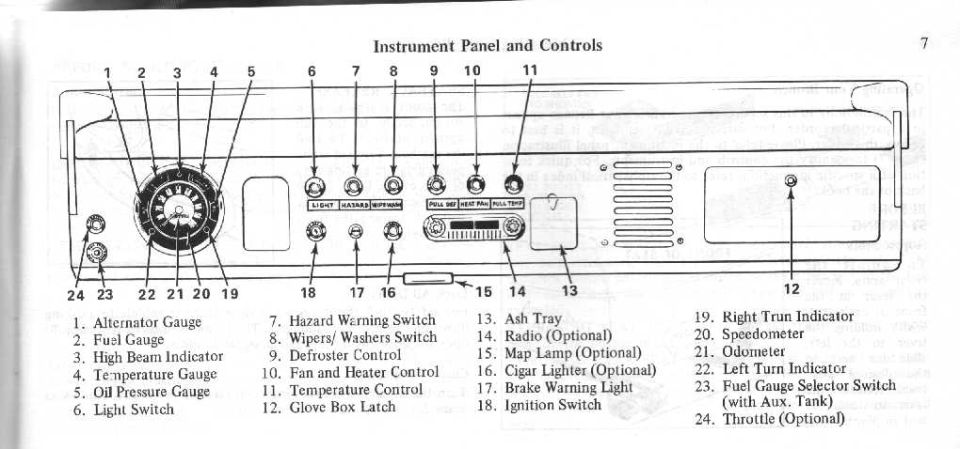

What do the numbered items on the early Bronco instrument panel diagram represent?

The legend identifies 24 items including the alternator gauge, fuel gauge, high beam indicator, temperature gauge, oil pressure gauge, light switch, hazard warning switch, wipers/washers switch, defroster control, fan and heater control, temperature control, glove box latch, ash tray, radio, map lamp, cigar lighter, brake warning light, ignition switch, turn indicators, speedometer, odometer, fuel gauge selector switch, and throttle.

Which instrument panel items are listed as optional on this Bronco?

The radio (14), map lamp (15), cigar lighter (16), and throttle (24) are marked as optional.

What is the fuel gauge selector switch for?

Item 23, the fuel gauge selector switch, is used with the auxiliary (Aux.) tank.

What labels appear on the dash control knobs in the diagram?

The knob/switch labels shown are LIGHT, HAZARD, WIPE WASH, PULL DEF, HEAT FAN, and PULL TEMP.

Where is the ignition switch located per this diagram?

The ignition switch is item 18, shown on the left-center portion of the instrument panel near the wiper switch (16) and brake warning light (17).
