Bronco owner's manual page 15 on parking brake release and manua…

Bronco owner's manual page 15 on parking brake release and manual transmission shift pattern
Bronco owner's manual page 15 on parking brake release and manual transmission shift patternOriginal file
Bronco owner's manual page 15 on parking brake release and manual transmission shift pattern

Reference · 1966-1977 BroncoAll 50 manual pages

1973 Ford Bronco Owner's Manual Page 18 - 4WD Transfer Case Shifting Guide Bronco owner's manual page 17 with automatic selector positions diagram and four-wheel drive operation Bronco owner's manual page 16 with clutch free travel note and transfer case shift speed table Bronco owner's manual page 15 on parking brake release and manual transmission shift pattern Bronco owner's manual page 14 on fuel economy driving tips and new vehicle break-in 1973 Ford Bronco Owner's Manual Page 13 - Wipers, Headlamps & Dimmer Switch 1973 Ford Bronco Instrument Panel & Controls Diagram - Owner's Manual Page 7 1973 Ford Bronco Instrument Cluster Diagram - Gauges & Indicator Lights Four-wheel-drive club Code of Ethics page with eleven numbered trail conduct pledges 4x4 club rules page 13 covering on and off road conduct, trail boss authority and military ordnance precaution 50manual pages1966-1977 Ford Bronco More reference 1974 Ford Bronco Windshield Wiper Assembly Exploded Parts DiagramExploded parts 1974 Ford Bronco Wiring Diagram - Rear Stop/Turn, Marker, License & Heater BlowerWiring diagram Early Ford Bronco Wiring Harness Locations Diagram - Engine, Dash, TaillightSchematic Ford Bronco Transfer Case Assembly - Output Shaft Bearings & Shift Rail SealsService procedure Magazine Metamorphosis feature continuation page on a modified Bronco buildBrochure 1973-74 Ford Bronco Fuse Box Diagram: Fuse Panel & Circuit Breaker ChartFuse chart Ford Bronco & Econoline Transmission/Transfer Case Torque Specs & Gear RatiosTorque spec 1967 Ford Bronco Tire Rack Blueprint - Dimensioned Fabrication DrawingBlueprint Ford certification label dated 04/73 with GVWR 4900, axle ratings and MPV typeSpec plate '65-72 C-4 vacuum throttle valve, lines and fittings routing with part numbersVacuum routing

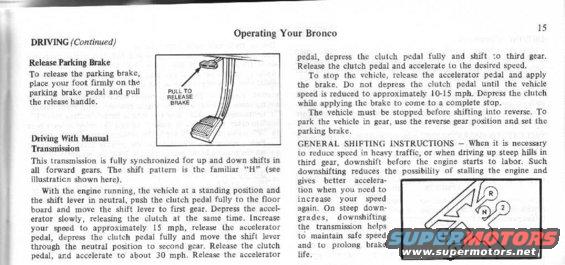

Page 15 of the Bronco owner's manual covering the pull-to-release parking brake, manual transmission shifting and general downshifting instructions.

Part of 1966-1977 Ford Bronco Manual Pages

AI caption · Photo 19 of 206

Operating Your Bronco DRIVING (Continued) Release hiking Brake To release the parking brnke, place your lent firmly on the piirhing brake pedal and pull aniim the release handle. saga? Driving wnh Manual Transmission This transmission is tiilly synchronized lor up and dnwn shins in all forward gears. The shirt pailei-n 5 the lainilirr H" (see iiluslralicn shown herb). wiih lhe engine running. the VChi'cle lit a standing position and [he shill level in neutral, push the chnch peilnl hilly m rhe oor board and move me shitt lever to inst gear. Depress ihe eel- emu)! slowly. releasing ihe olnieli ai the same hrne. lnoreose yniir speed to nppmxmmtely 15 mph. release lhe aaieleiater peddl. depresl the clinch pednl riilly no movie the shin lever through the neutral posiiidn to second gear, Relense [he clmch pedal, :utd accelnmte u: about 30 mph. Relcnw the nocclexalur 15 pedal, depress Lhu chili-h pedal inlly and shift :0 thud gear. Release the eliiroh pedal and seerlerale Ln ihe desired speed. Tu sinp thr vchiclc. relense the accelerator pcial and apply Lh: Duke Du nul clap-ms; |hc dutch pedal Unlll the vehicle speed is rediised 7.0 nnproriinorely ICHS mph. Dcpn'ss ihe oliiinii while applying ilie brake to some to n complete stop. The vehicle must tie stopped before shining into reverse. To palk ihe vehicle in gain. use the IZVIXSC star pusmun and 5:21 lb: parking hrnhe. GENERAL SHIFTING INSTRUCTIONS , thn )K is nuc sdry to mducc speed in hcnvy traffic, or when iinvnig iig steep hills in third gear, downshiit beloro zlic engine starts (a labor, Such downshlflmg reduces the pusslbjly m srallirig the engine and gives better aeeelera- uun when you need to grg inorense your speed 2 grades. iinwiisliitting " the transmission hi-Ips to maintain 53: Spud V dud [u picking make again On steel: downe lile. /\
