What are the Ford part numbers for the Bronco headlight door/bezel?

The diagram shows 13200 for the right-hand and 13201 for the left-hand headlight door.

What is the part number for the headlight retaining/mounting rings?

The diagram calls out 13032 and 13015 as rings surrounding the 13007 sealed beam, with 13064 as the larger mounting ring.

Does this diagram distinguish between model years?

Yes. One group of side marker/lamp parts (376309-S MM-216-N, 13A082, 32957-S, 13380) is marked '1966/69 ONLY,' and another callout is marked '1970/' indicating 1970-and-later parts (15A434, 15A460, 15A201, etc.).

What part number is shown for the headlight adjusting screw?

52742-S (U-385) is shown as the adjusting screw, along with 375452-S (BB-630-D) hardware.

What part number covers the headlight wiring?

14290 is called out for the wiring assembly, with 13031 shown as the connector/socket at the back of the sealed beam.

Home/ Registry/ Ford/ Bronco/ 1966-1977/ 1974 Ford Bronco/ Photo supermotors.net/registry/media/307978

Ford Bronco Headlight & Front Lamp Exploded Parts Diagram (1966-1970+) FoMoCo

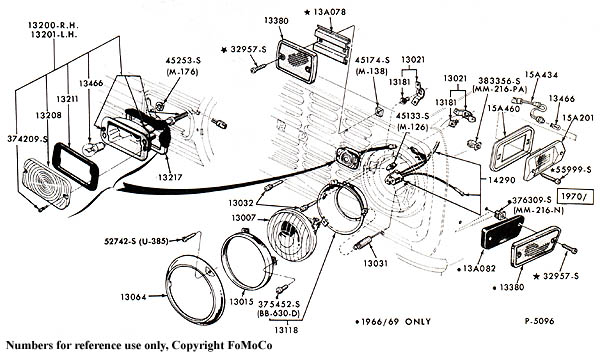

Exploded drawing of headlamp and parking lamp assemblies with Ford part numbers

‹ ›

Reference · 1966-1977 BroncoAll 140 exploded parts diagrams

Early Ford Bronco Hood-to-Cowl Seal Diagram - Part 16004 Location

1974 Ford Bronco Hood & Latch Exploded Parts Diagram - FoMoCo Part Numbers

1974 Ford Bronco Heater Assembly Exploded Diagram - Defroster Hoses & Blower

Ford Bronco Headlight & Front Lamp Exploded Parts Diagram (1966-1970+) FoMoCo

1974 Ford Bronco Gas Tank Exploded Diagram - Fuel Tank Mounting & Straps

Early Ford Bronco Body Diagram - Part Numbers 16030/16031, 16040/16041, 16035

1974 Ford Bronco Front Seat Exploded Parts Diagram - Seat Back, Cushion & Hinge

1974 Ford Bronco Frame & Bumper Exploded Parts Diagram (FoMoCo)

'65-72 170 six and 289, 302, 351W V8 water pump exploded parts diagrams with part numbers

'66-72 Bronco body type 98 roof trim panel parts diagram and 1972 Bronco spare tire cover

'68-72 Bronco swing-away spare wheel carrier exploded parts diagram with part numbers

'69-72 Bronco tailgate and liftgate exploded parts diagram with part number callouts

140exploded parts diagrams1966-1977 Ford Bronco More reference

Manual page

Wiring diagram

Early Ford Bronco Wiring Harness Locations Diagram - Engine, Dash, Taillight

Schematic

Ford Bronco Transfer Case Assembly - Output Shaft Bearings & Shift Rail Seals

Service procedure

Magazine Metamorphosis feature continuation page on a modified Bronco build

Brochure

1973-74 Ford Bronco Fuse Box Diagram: Fuse Panel & Circuit Breaker Chart

Fuse chart

Torque spec

Chassis dimensions top and side view drawing with 92.00 wheelbase and 152.08 overall length

Blueprint

Ford certification label dated 04/73 with GVWR 4900, axle ratings and MPV type

Spec plate

'65-72 C-4 vacuum throttle valve, lines and fittings routing with part numbers

Vacuum routing

Exploded parts diagram of front headlamp and parking lamp assemblies with FoMoCo part numbers.

Part of 1966-1977 Ford Bronco Exploded Parts Diagrams

AI caption April 2006 · Photo 97 of 206

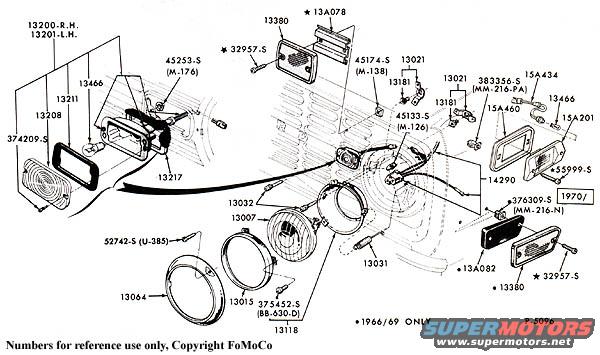

This document is a Ford Motor Company (FoMoCo) exploded parts diagram (plate P-5096) showing the headlight and front lamp assembly for an early Ford Bronco. It illustrates the headlight door/bezel (13200 right-hand, 13201 left-hand), headlight bucket and mounting components (13208, 13211, 13466, 374209-S seal), headlight sealed beam bulb (13007), retaining rings (13032, 13015), adjusting hardware (52742-S U-385 screw, 375452-S BB-630-D), mounting ring (13064), and wiring/connector items (13031, 14290 wiring assembly). Also shown are the front parking/turn signal lamp assemblies: lens (13380), housing components (13A078, 13A082), sockets and bulbs (13466, 13021, 13181), and side marker lamp components (15A434, 15A460, 15A201, 383356-S MM-216-PA, 376309-S MM-216-N, 55999-S). Various fasteners are called out with S-suffix hardware numbers such as 45253-S (M-176), 45174-S (M-138), 45133-S (M-126), and 32957-S. The diagram notes some parts apply to '1966/69 ONLY' and others to '1970/' (1970 and later), indicating it covers the 1966-1977 early Bronco front lighting design with year-based variations. A footer states the numbers are for reference use only, copyright FoMoCo.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What are the Ford part numbers for the Bronco headlight door/bezel?: The diagram shows 13200 for the right-hand and 13201 for the left-hand headlight door.
What is the part number for the headlight retaining/mounting rings?: The diagram calls out 13032 and 13015 as rings surrounding the 13007 sealed beam, with 13064 as the larger mounting ring.
Does this diagram distinguish between model years?: Yes. One group of side marker/lamp parts (376309-S MM-216-N, 13A082, 32957-S, 13380) is marked '1966/69 ONLY,' and another callout is marked '1970/' indicating 1970-and-later parts (15A434, 15A460, 15A201, etc.).
What part number is shown for the headlight adjusting screw?: 52742-S (U-385) is shown as the adjusting screw, along with 375452-S (BB-630-D) hardware.
What part number covers the headlight wiring?: 14290 is called out for the wiring assembly, with 13031 shown as the connector/socket at the back of the sealed beam.
