1974 Ford Bronco Hood & Latch Exploded Parts Diagram - FoMoCo Part Numbers

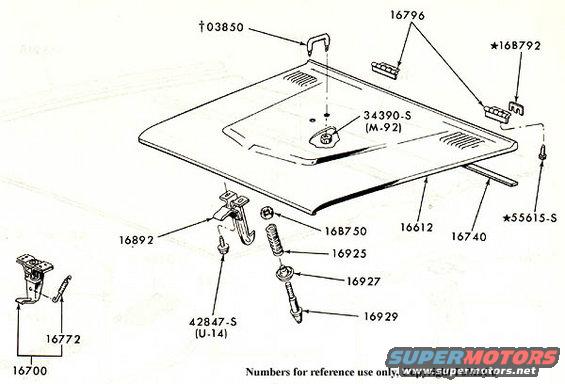

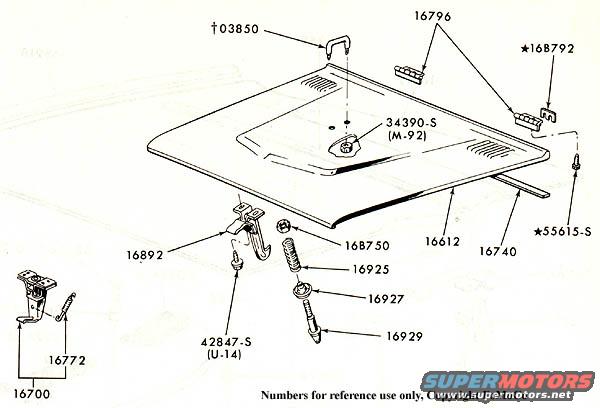

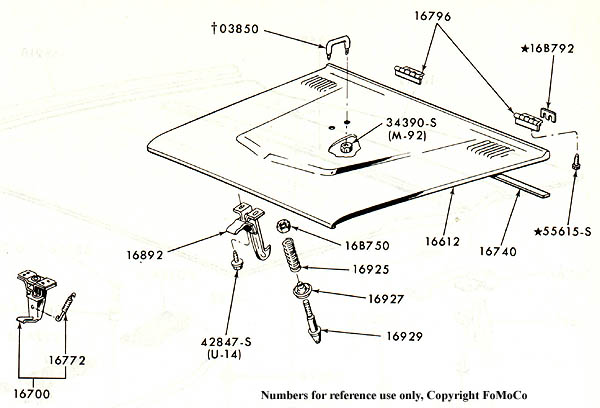

This document is an exploded parts diagram from a Ford (FoMoCo) parts reference showing the hood assembly and related hardware. The illustration depicts the hood panel (16612) with callouts identifying the associated components by Ford base part number: a hood bumper/clip (03850), hood-to-cowl seal retainers (16796), a bracket assembly (16B792), fastener 34390-S (M-92), hood hinge assembly (16892), spring clip 16B750, hood rear seal (16740), screw 55615-S, hood latch support components (16925, 16927, 16929), bolt 42847-S (U-14), and the hood latch/catch assembly (16700) with its spring (16772). Items marked with a dagger (†) or star (★) symbols distinguish certain hardware pieces. The footer notes 'Numbers for reference use only, Copyright FoMoCo.' A reader can use this diagram to identify Ford part numbers for hood components, understand how the hood latch, springs, bumpers, seals, and hinge hardware assemble, and to source replacement parts. The document itself carries no year, model, or engine applicability statement; it was uploaded as applicable to a 1974 Ford Bronco. All part numbers are clearly legible and the line-art illustration shows the physical relationship of each component to the hood panel.
