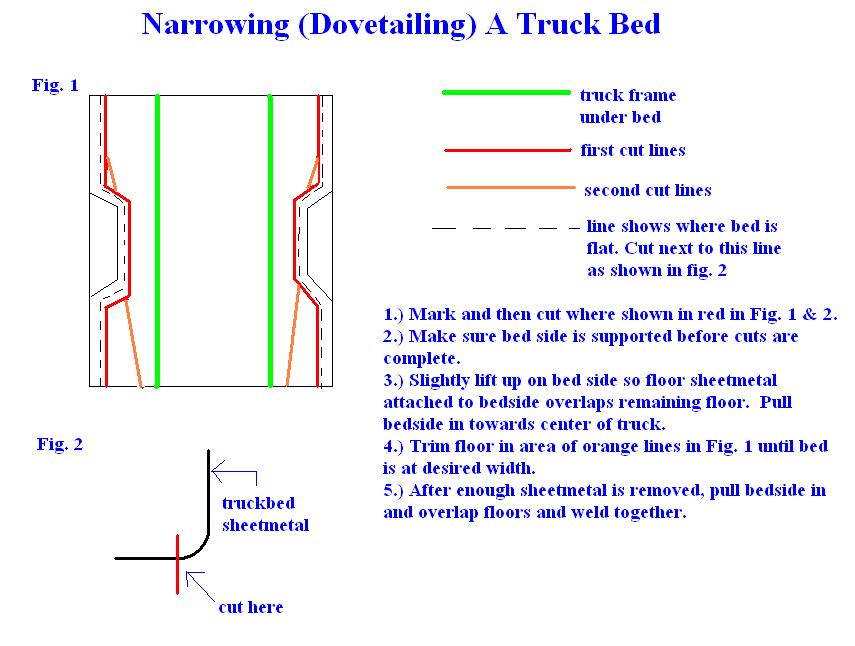

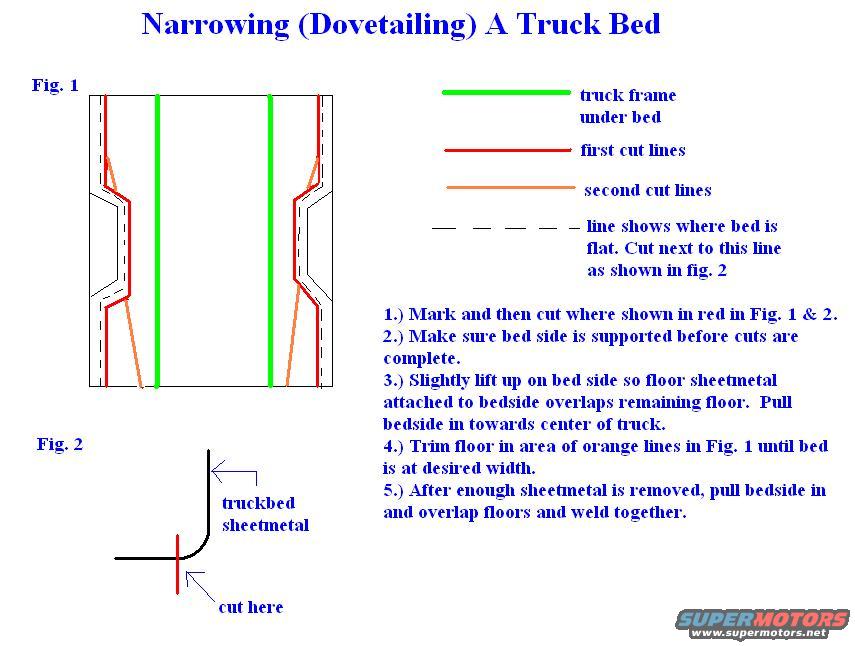

What do the different colored lines in Fig. 1 mean?

Green lines show the truck frame under the bed, red lines are the first cut lines, orange lines are the second cut lines, and the dashed line shows where the bed is flat — cut next to that line as shown in Fig. 2.

What is the first step in narrowing a truck bed?

Mark and then cut where shown in red in Fig. 1 & 2, making sure the bed side is supported before the cuts are complete.

How do you determine how much floor sheetmetal to remove?

Trim the floor in the area of the orange lines in Fig. 1 until the bed is at the desired width.

Where exactly should the cut be made on the bedside sheetmetal?

Fig. 2 shows the cut is made at the lower bend of the truckbed sheetmetal, next to the dashed line where the bed floor is flat.
