Crown Victoria & Grand Marquis Window/Roof Moulding Exploded Parts Diagram

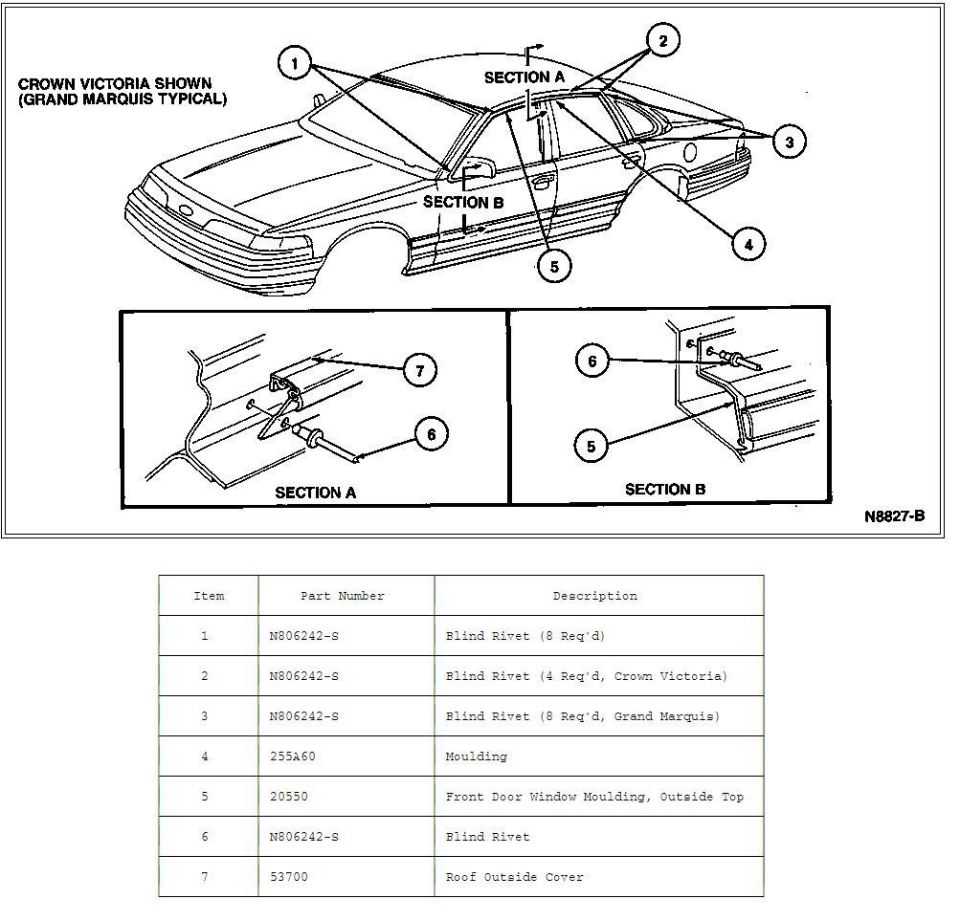

This document is an exploded parts diagram from a Ford service manual showing the installation of exterior window and roof mouldings on the Ford Crown Victoria and Mercury Grand Marquis ("Crown Victoria Shown, Grand Marquis Typical"). The main illustration depicts a side view of the sedan with seven numbered callouts identifying moulding components and fasteners along the roofline, windshield pillar, and door window frames. Two detail insets, Section A and Section B, show cross-sectional views of how the blind rivets secure the mouldings — Section A shows items 7 (roof outside cover) and 6 (blind rivet), while Section B shows items 6 and 5 (front door window moulding, outside top). An accompanying parts table lists each item number with its part number and description: blind rivet N806242-S is used in multiple locations (8 required at item 1, 4 required for Crown Victoria at item 2, 8 required for Grand Marquis at item 3), plus moulding 255A60, front door window moulding outside top 20550, and roof outside cover 53700. The illustration reference number is N8827-B. A reader can learn which rivets and moulding parts are needed to remove or replace the exterior roof and window trim on these vehicles.
