Exploded view of EGR and emissions vacuum components with Ford p…

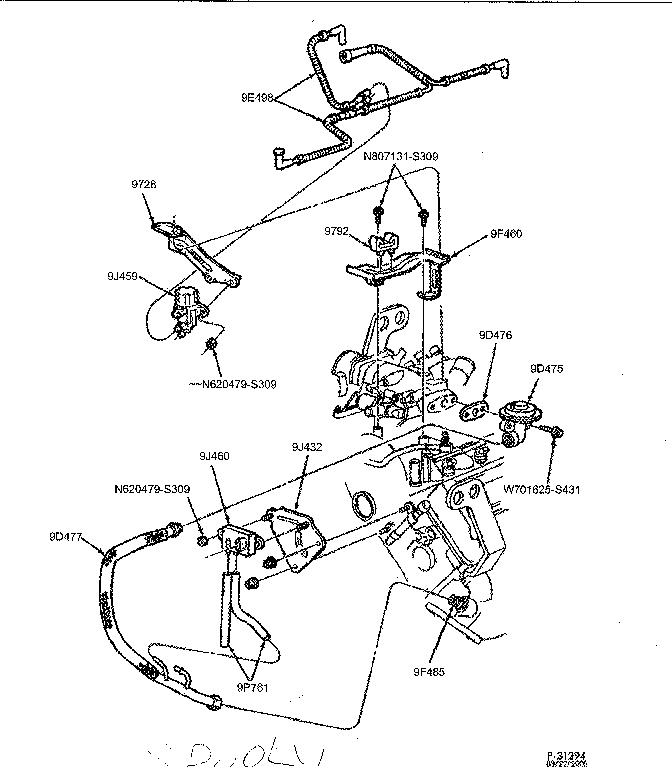

Exploded view of EGR and emissions vacuum components with Ford part numbers 9D475, 9F460 and 9J459
Exploded view of EGR and emissions vacuum components with Ford part numbers 9D475, 9F460 and 9J459Original file
Exploded view of EGR and emissions vacuum components with Ford part numbers 9D475, 9F460 and 9J459

Reference · 1992-1997 Grand MarquisAll 6 exploded parts diagrams

Exploded view of EGR and emissions vacuum components with Ford part numbers 9D475, 9F460 and 9J459 2006+ Crown Victoria, Grand Marquis and Town Car transmission fluid cooler tubes with torque callouts '92-97 Crown Victoria, Grand Marquis and Town Car transmission cooling tubes with and without external cooler '92-97 Crown Victoria, Grand Marquis and Town Car power steering with external cooler exploded views '92-97 Crown Victoria, Grand Marquis and Town Car engine cooling system exploded diagrams with parts tables Crown Victoria & Grand Marquis Window/Roof Moulding Exploded Parts Diagram 6exploded parts diagrams1992-1997 Mercury Grand Marquis More reference 2003-2004 Lincoln Town Car Cornering Lamps Wiring Diagram - Circuit 91-1Wiring diagram Hinkley Ceiling Fan Wall Control Installation Instructions (2019) - Wiring StepsService procedure Surgeon 591 Rifle Q4 2022 Sale Flyer - SAC Pricing, SKUs .308 & 6.5CMBrochure Mercury Grand Marquis Speed Control (Cruise) ON Button & 30 mph Minimum SpeedManual page 1997 Mercury Grand Marquis 4.6 Dyno Sheet - 199 HP / 238 TQ Dynojet ResultsSpec plate Engine lifting bracket location using two M12 x 1.25 x 20 metric boltsSchematic

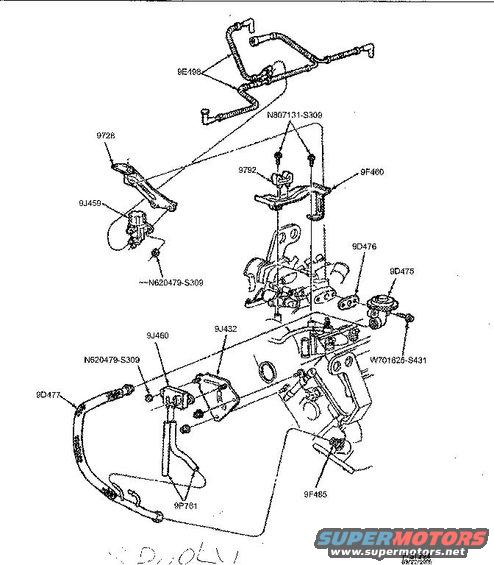

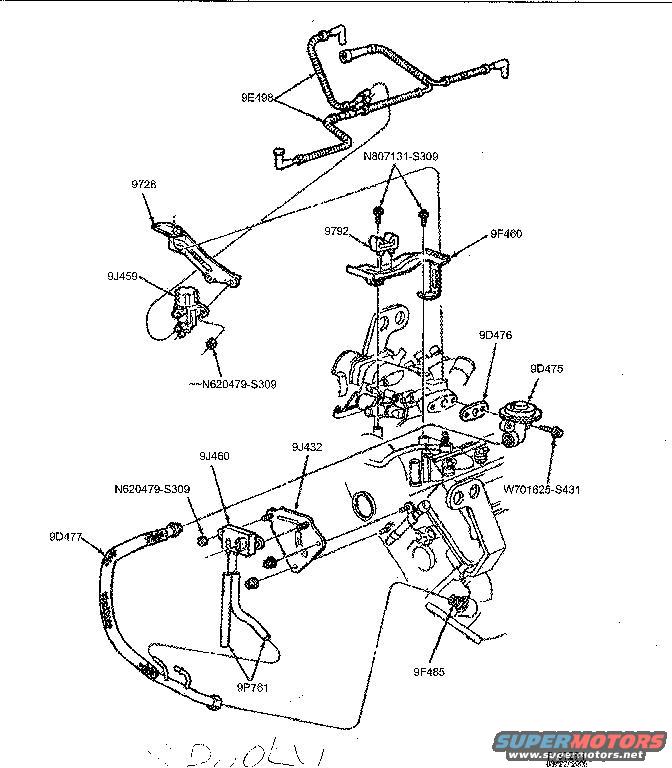

Exploded diagram of EGR system parts with callouts including 9E498 tube, 9D475 valve, 9D476 gasket, 9J459, 9F460, 9D477 and fasteners N807131-S309.
