'92-97 Crown Victoria, Grand Marquis and Town Car power steering…

'92-97 Crown Victoria, Grand Marquis and Town Car power steering with external cooler exploded views
'92-97 Crown Victoria, Grand Marquis and Town Car power steering with external cooler exploded viewsOriginal file
'92-97 Crown Victoria, Grand Marquis and Town Car power steering with external cooler exploded views

Reference · 1992-1997 Grand MarquisAll 6 exploded parts diagrams

2006+ Crown Victoria, Grand Marquis and Town Car transmission fluid cooler tubes with torque callouts '92-97 Crown Victoria, Grand Marquis and Town Car transmission cooling tubes with and without external cooler '92-97 Crown Victoria, Grand Marquis and Town Car power steering with external cooler exploded views '92-97 Crown Victoria, Grand Marquis and Town Car engine cooling system exploded diagrams with parts tables Crown Victoria & Grand Marquis Window/Roof Moulding Exploded Parts Diagram Exploded view of EGR and emissions vacuum components with Ford part numbers 9D475, 9F460 and 9J459 6exploded parts diagrams1992-1997 Mercury Grand Marquis More reference 2003-2004 Lincoln Town Car Cornering Lamps Wiring Diagram - Circuit 91-1Wiring diagram 1996 Mercury Grand Marquis Bumper Cover R&R - Fastener Torque 7 Nm (62 lb-in)Service procedure Mercury Grand Marquis Speed Control (Cruise) ON Button & 30 mph Minimum SpeedManual page Surgeon 591 Rifle Q4 2022 Sale Flyer - SAC Pricing, SKUs .308 & 6.5CMBrochure 1997 Mercury Grand Marquis 4.6 Dyno Sheet - 199 HP / 238 TQ Dynojet ResultsSpec plate Engine lifting bracket location using two M12 x 1.25 x 20 metric boltsSchematic

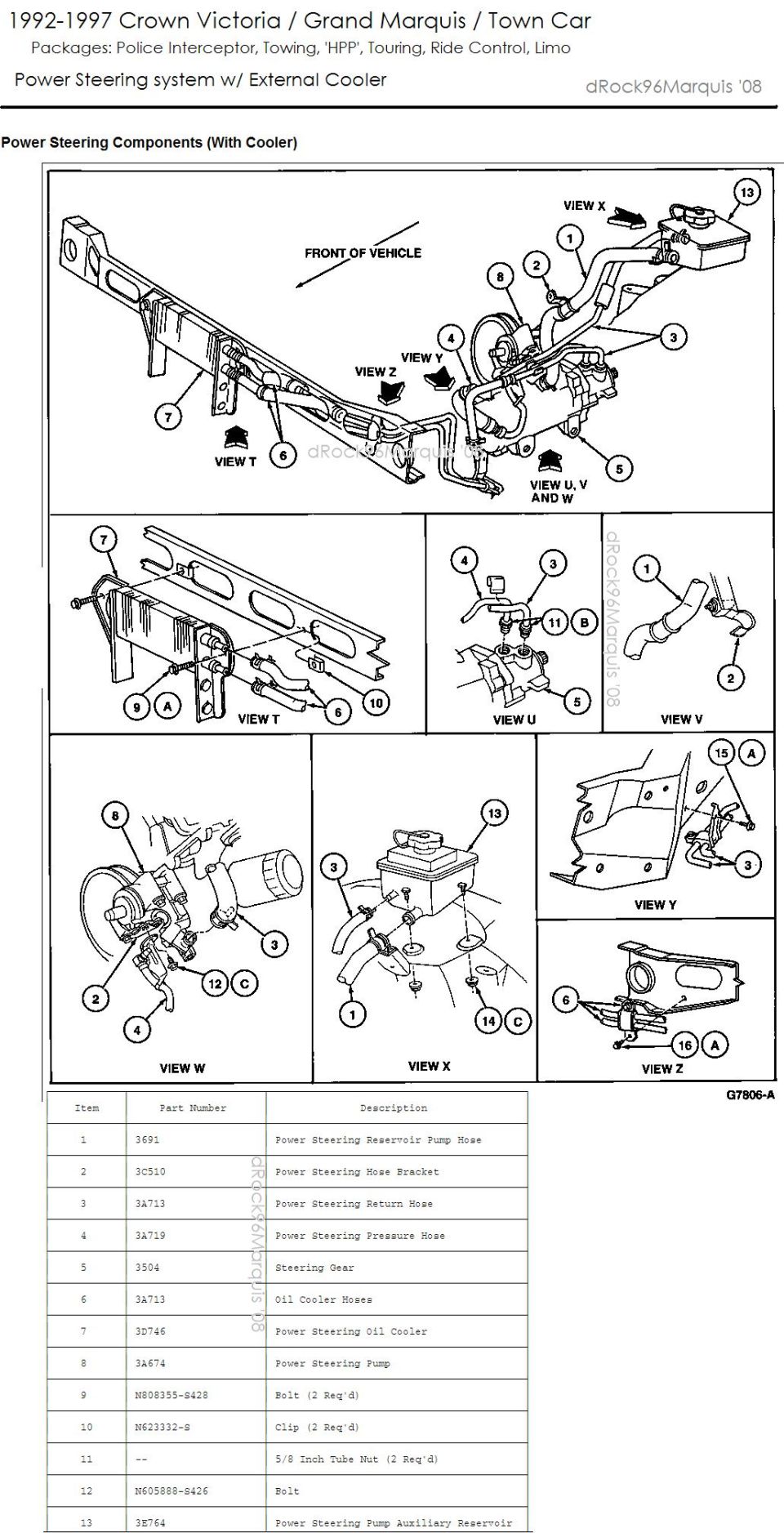

Power steering system with external cooler for the 1992-1997 Crown Victoria/Grand Marquis/Town Car, views T through Z with a numbered parts legend.

Part of 1992-1997 Mercury Grand Marquis Exploded Parts Diagrams
