1996 Mercury Grand Marquis Bumper Cover R&R - Fastener Torque 7 Nm (62 lb-in)

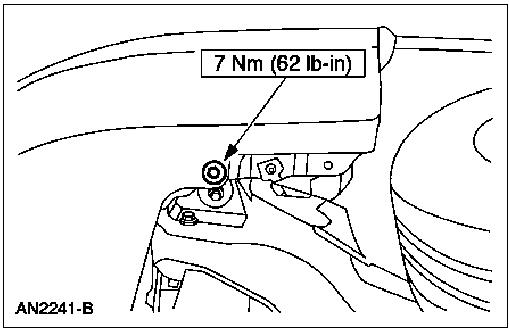

This is a single illustration page from a bumper cover removal and installation (R&R) service procedure, part of a multi-page set. The line drawing shows a close-up view of a fastener location at the front corner of a vehicle, near the fender/headlamp area and adjacent to what appears to be a wheel or tire. A callout arrow points to a bolt/screw with the torque specification "7 Nm (62 lb-in)", indicating the tightening torque for this bumper cover fastener during installation. The figure reference number "AN2241-B" appears in the lower left corner of the illustration. No year, model, part numbers, or additional instructions are printed on this particular page; it serves solely to identify the fastener location and its required torque. The document was uploaded as page 2 of 5 in a bumper cover R&R procedure set attributed to a 1996 Mercury Grand Marquis. Readers can learn the correct torque value (7 Nm / 62 lb-in) for the depicted bumper cover attachment fastener and its approximate location on the vehicle.
