1996 Mercury Grand Marquis Bumper Cover Fastener Torque Diagram (7 Nm / 62 lb-in)

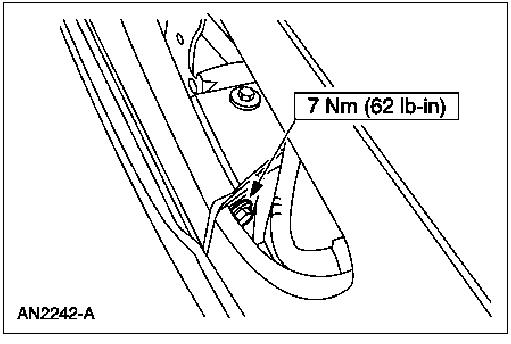

This document is a single service illustration (figure ID AN2242-A) from a bumper cover removal and installation procedure, uploaded as page 4 of a 5-page set for a 1996 Mercury Grand Marquis. The line drawing shows a close-up view of a fastener location at what appears to be the end of a bumper cover where it meets the vehicle body/fender area. A callout box specifies a torque value of 7 Nm (62 lb-in) for the fastener indicated by the arrow. No other text, part numbers, model names, or year information appears in the image. Readers can learn the correct tightening torque (7 Nm / 62 lb-in) for this bumper cover attachment fastener when reinstalling the bumper cover. Because this is one page of a multi-page procedure, the surrounding steps and additional fastener locations would be found in the companion scans (bumpercoverR&R1 through bumpercoverR&R5) in the same album. The document itself contains no explicit vehicle applicability statement, so its attribution to the 1996 Mercury Grand Marquis rests on the uploader's claim and album context.
