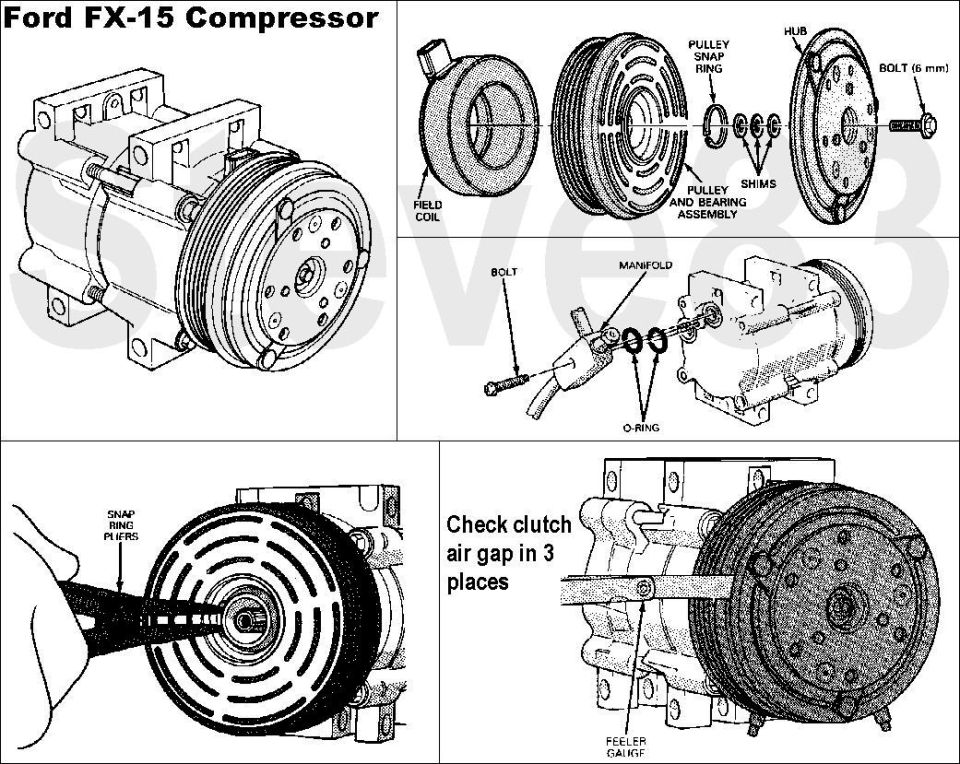

Diagram of Ford FX-15 air conditioning compressor with clutch pa…

FX-15 Compressor

Type: swashplate with 5 double-acting axial pistons
Displacement: 10.4 CI (170cc)
Bore: 29mm
Stroke: 25.7mm
Rotation: CW
Rational Torque (no load): 10 Nm (7 ft-lb)
Oil (for R-12 Refrigerant): YN-9 (E73Z-19577-A)
System Capacity: 7 oz (207ml) standard
Clutch Air Gap: 0.2-0.3" (0.45-0.85mm)
Use Clutch Shim Kit Motorcraft YF1800A
Clutch Current Draw: 4.36A @ 12VDC
Runout (either): 0.02"
Hose Manifold-to-Compressor Bolt: 17 lb-ft
Clutch Hub Bolt: 8-10 lb-ft



This shows a disassembled compressor:
http://www.p71interceptor.com/accompressor/disassembled/part2/PICT7615-vi.jpg
