C-II Power Steering Pump (E7TZ-3A674-BBRM) uses Motorcraft MERCONŽ ATF XT-2-QDX or MERCONŽ equivalent.
IF THE IMAGE IS TOO SMALL, click it.

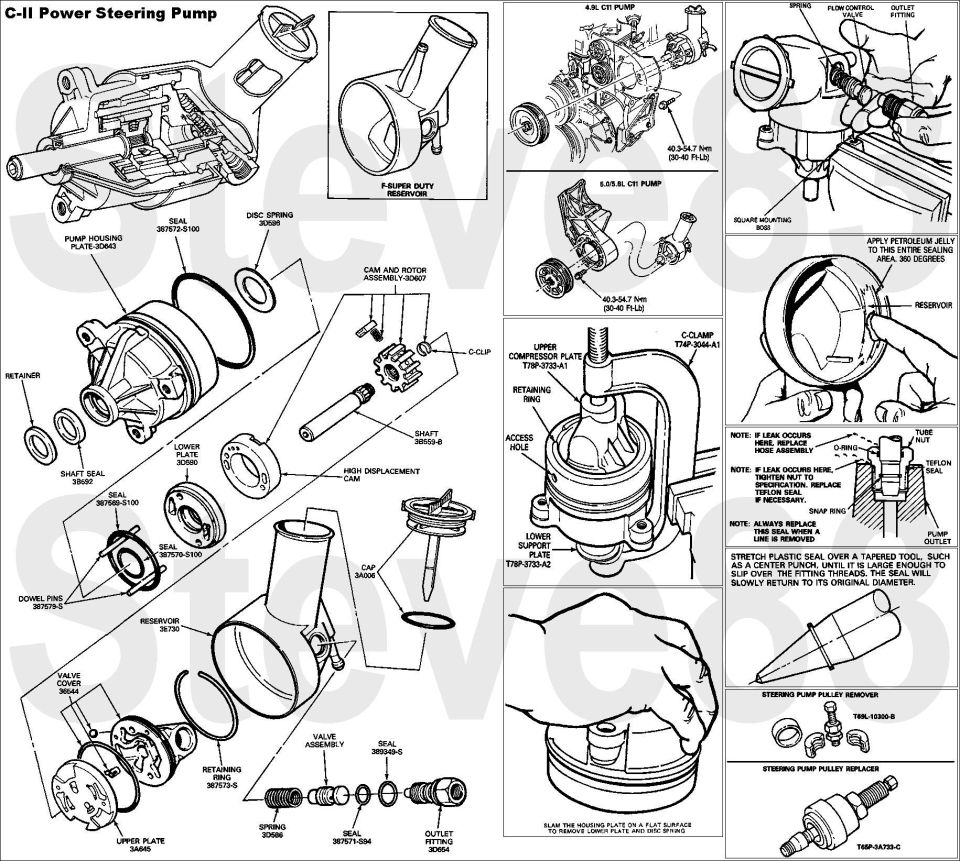

The C-II power steering pump (3A674) is a belt-driven, slipper-type pump with a fiberglass reinforced nylon power steering oil reservoir (3A697). The power steering oil reservoir is attached to the rear side of the pump housing front plate and the power steering pump housing (3A643) is encased within the housing and reservoir. The power steering pressure hose (3A719) is attached with a quick connect fitting, located below the filler neck at the outboard side of the power steering oil reservoir. The fitting allows the line to swivel. This is normal and does not indicate an untorqued fitting.
A pressure sensitive identification tag is attached to the power steering oil reservoir. The top line of this tag indicates the basic model number and the suffix.
Note: Always use the tags when requesting service parts as there may be slight differences in internal components.
Using a Ford D79L33610A/D81T33610A or Rotunda 01400207/01400230 Power Steering System Analyzer, pressure at 74-79°C (165-175°F) should be above 1034 kPa (150 psi).
Ford C2 - - - - - - Minimum Flow @ 740 psi - - - - - - - Minimum Pressure Relief - - Maximum Pressure Relief
Pump Model - - - Liters/Minute - - Gallons/Minute - - - kPa - - - - - - - - psi - - - - - - - kPa - - - - - - psi
- - - - - - - - - - - - - 76C ~ 15C - - - 170°F ~ 5°F - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
HBC-JX (F/U) - - - - - 5.3 - - - - - - - - - - 1.4 - - - - - - - - 9650 - - - - - - 1400 - - - - - - 10550 - - - - 1530
HBC-JY (F/U) - - - - - 5.7 - - - - - - - - - - 1.5 - - - - - - - - 10000 - - - - - - 1450 - - - - - - 10550 - - - - 1530
HBC-KK (E) - - - - - - 5.3 - - - - - - - - - - 1.4 - - - - - - - - - 9650 - - - - - - 1400 - - - - - - 10550 - - - - 1530
