2WD High The front output sliding gear is centered (neutral) and…

2WD High

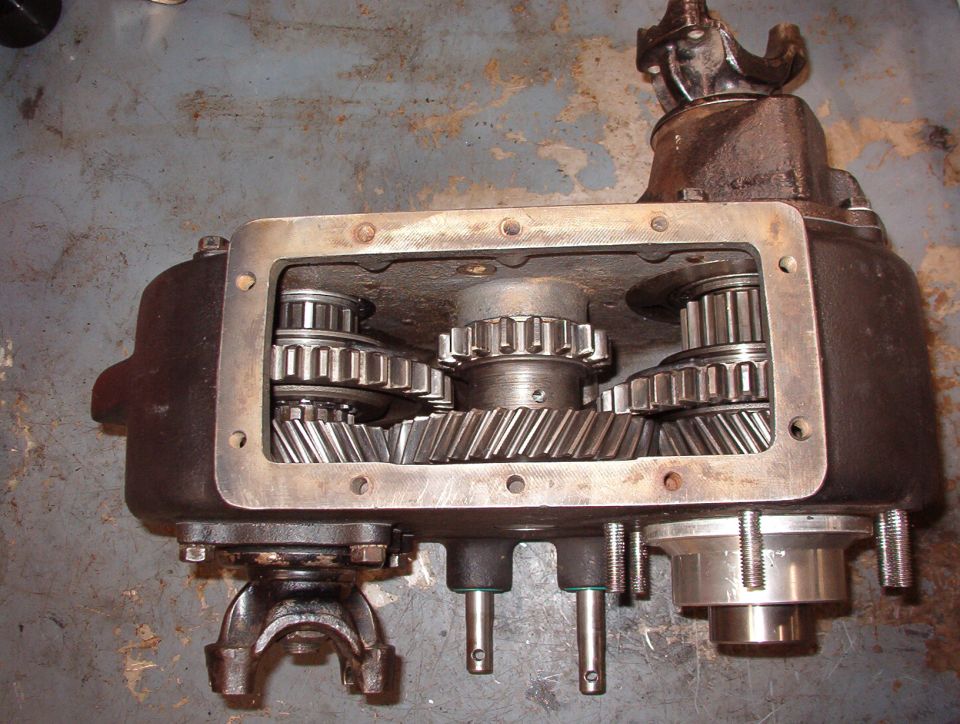

The front output sliding gear is centered (neutral) and can only move forward (front high). The rear output is engaged to the input (1:1) and can move rearward to neutral.

The Aluminum sleeve & stub shaft at the lower R are for the Advance Adapters kit for the AOD. Removing that shaft from the t-case allows about a dozen roller bearings to fall loose into & out of the t-case. Finding & re-installing them is a challenge.
