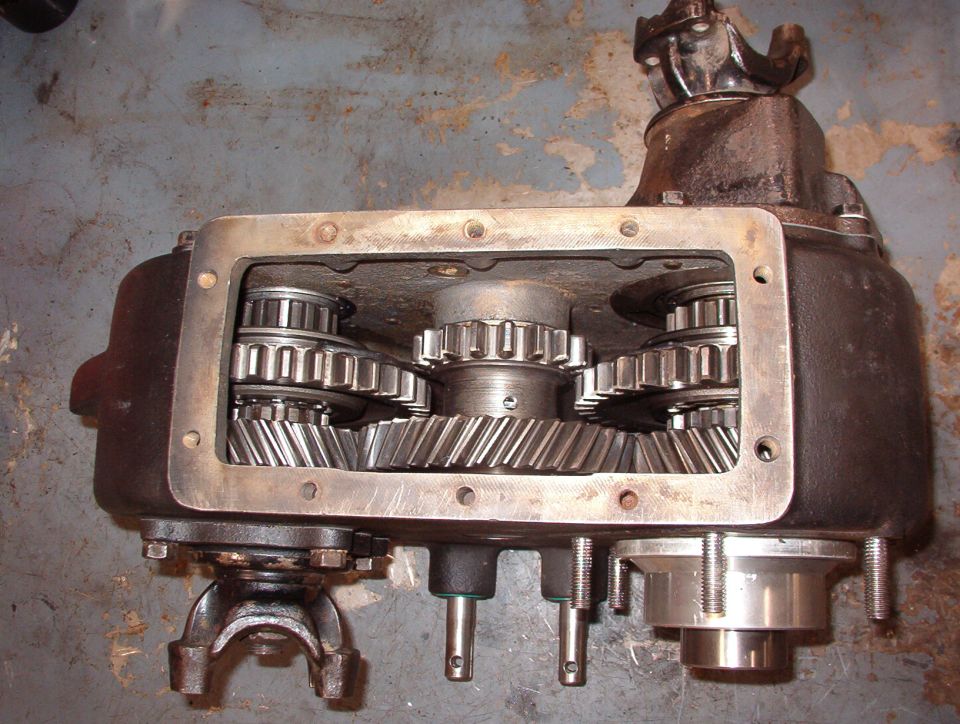

Neutral
Both sliding gears (and the shift rails) are centered, UNlocking both outputs. The pills prevent the front output shift rail from moving; only the rear can move either direction.

The Aluminum sleeve & stub shaft at the lower R are for the Advance Adapters kit for the AOD. Removing that shaft from the t-case allows about a dozen roller bearings to fall loose into & out of the t-case. Finding & re-installing them is a challenge.

Owner caption March 2008 · Photo 205 of 689
