TSB 95-8-5 Front Passenger Seat Back Rattles or Squeaks - Loose or Missing Bushing - Vehicles Built Through 1/4/95
Publication Date: APRIL 24, 1995

LIGHT TRUCK: 1992-1995 BRONCO, F-150-350 SERIES

ISSUE: The passenger side seat back may "squeak" or "rattle" on some F-Series Supercabs and Broncos equipped with a split bench seat. This may be caused by a loose or missing seat bushing on the side of the seat.

ACTION: Install a new bushing on the side of the seat back frame. Refer to the following Service Procedure for details.

SERVICE PROCEDURE
Remove the attaching screw from the seat back latch lower cover.
Remove the bolt attaching the seat back frame to the seat.
Remove the bushing (if present).

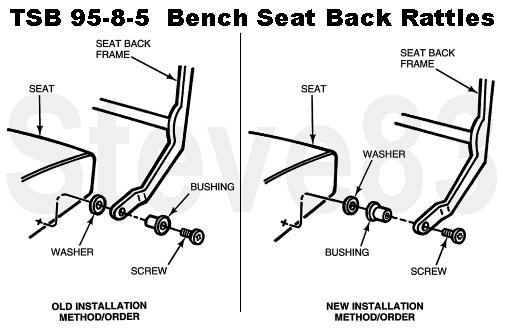

Install the new bushing (F4TZ-1560394-BB) so the bushing and washer are between the seat and the seat back frame. Refer to Figure 1.
Install the bolt and torque to 18-22 lb-ft (24-30 N-m).
Install the seat back latch lower cover.

PART NUMBER PART NAME
F4TZ-1560394-BB Bushing
OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage
OPERATION - DESCRIPTION - - - - - - - - - - - - - - - TIME
950805A - - Reposition Or Replace New Bushing - 0.3 Hr.
