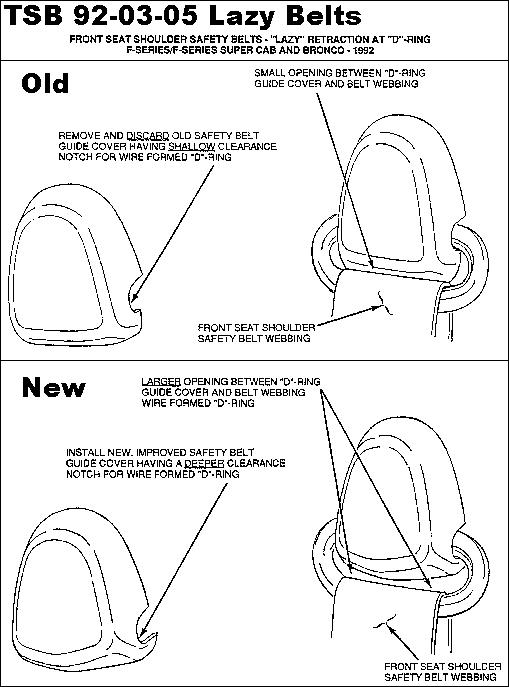

Ford TSB 92-03-05 diagram for lazy seat belts showing old and ne…

TSB 92-3-5 Front Shoulder Safety Belts Slow Retraction at "D" Ring
Publication Date: JANUARY 29, 1992

LIGHT TRUCK: 1992 BRONCO, F SUPER DUTY, F-150-350 SERIES, F-47

ISSUE: The front seat shoulder safety belts may be slow or "lazy" to retract. This occurs because the opening, which allows the front seat shoulder safety belt webbing to pass between the "D"-ring cover and the wire formed "D"-ring, is too small.

ACTION: Replace the existing safety belt guide covers with improved design covers as shown in Figure 1. Refer to the Parts Block below for correct parts usage.

PART NUMBER PART NAME
F2TZ-1560262-A Cover - Front Seat Shoulder Strap Guide (Mocha - 2 Req.)
F2TZ-1560262-B Cover - Front Seat Shoulder Strap Guide (Scarlet - 2 Req.)
F2TZ-1560262-C Cover - Front Seat Shoulder Strap Guide (Crystal Blue - 2 Req.)
F2TZ-1560262-D Cover - Front Seat Shoulder Strap Guide (Granite - 2 Req.)

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: Eligible Under Bumper To Bumper Warranty Coverage And Safety Restraint Warranty Coverage

OPERATION: 920305A
DESCRIPTION: Replace "D" Ring Cover(s) - One or Both
TIME: 0.2 Hr.
