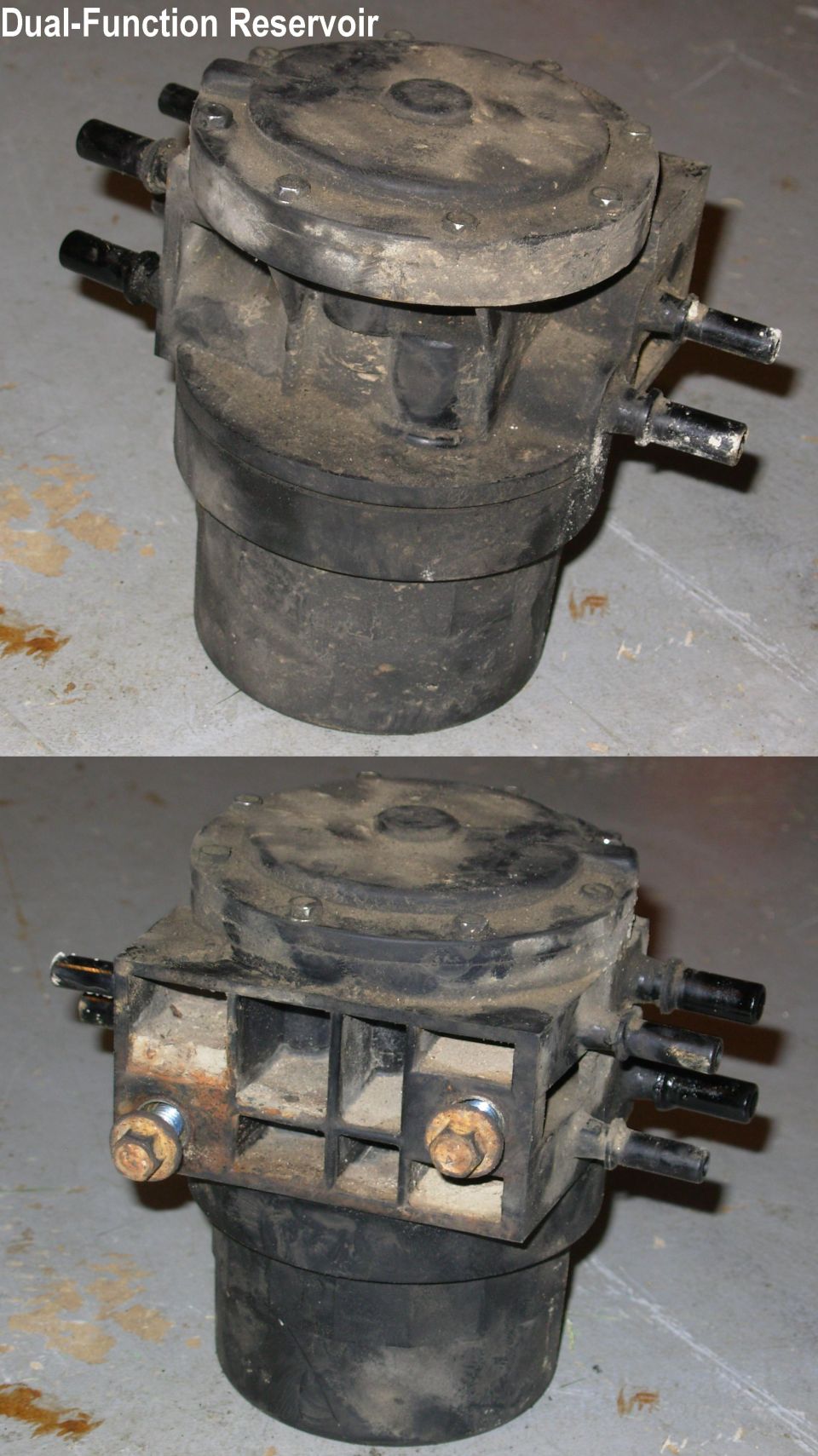

dualfunctionreservoir.jpg Dual-Function Reservoir F1UZ-9B263-B
If available, priced from $90-300 plus sh [url=http://www.amazon.com/dp/B0042HFX68/]Ford F1UZ-9B263-B[/url], [url=https://www.rockauto.com/en/moreinfo.php?pk=8165048&cc=1121780&pt=6276&jsn=1023]Dorman 911000[/url], or any knock-off copy like [url=https://www.amazon.com/dp/B08LG1Q5FF]this one[/url] or [url=https://www.amazon.com/dp/B08MFD5NL9]this other[/url] or [url=https://www.amazon.com/dp/B08RBTQYM5]this third[/url]...

Used on '84-89 F-series/E-series/Rangers/others with dual tank dual-pump EFI.  NOT used on Broncos.

If the engine only runs on one tank, but dies after a minute running on the other, AND both tank fuel pumps are known to be good, the reservoir's switching valve mechanism is probably stuck.  Remove its 2 mounting bolts & clean it thoroughly BEFORE disconnecting any lines.  Replace the reservoir on the frame & loosen (but do not remove) the reservoir cup BEFORE removing the reservoir assembly from the vehicle.  See the NEXT several pics & captions...

To semi-permanently eliminate the reservoir and use only 1 tank, use [url=https://www.amazon.com/dp/B0033YHPHG]these Dorman fuel tubes[/url].

A reservoir marked "DO NOT REMOVE CUP" does not contain a filter.  For a replacement O-ring for the cup, buy a NAPA 3268, [url=https://www.amazon.com/dp/B000C33KSY]Fram CG3862DP[/url], or equivalent filter.

See this caption:

[url=http://www.supermotors.net/vehicles/registry/media/477914_1][img]http://www.supermotors.net/getfile/477914/thumbnail/fsa89s76fuelline.jpg[/img][/url]
dualfunctionreservoir.jpg | Hits: 12851 | Posted on: 9/7/08 | View original size (720.98 KB)

Dual-Function Reservoir F1UZ-9B263-B
If available, priced from $90-300 plus sh Ford F1UZ-9B263-B, Dorman 911000, or any knock-off copy like this one or this other or this third...

Used on '84-89 F-series/E-series/Rangers/others with dual tank dual-pump EFI. NOT used on Broncos.

If the engine only runs on one tank, but dies after a minute running on the other, AND both tank fuel pumps are known to be good, the reservoir's switching valve mechanism is probably stuck. Remove its 2 mounting bolts & clean it thoroughly BEFORE disconnecting any lines. Replace the reservoir on the frame & loosen (but do not remove) the reservoir cup BEFORE removing the reservoir assembly from the vehicle. See the NEXT several pics & captions...

To semi-permanently eliminate the reservoir and use only 1 tank, use these Dorman fuel tubes.

A reservoir marked "DO NOT REMOVE CUP" does not contain a filter. For a replacement O-ring for the cup, buy a NAPA 3268, Fram CG3862DP, or equivalent filter.

See this caption:
