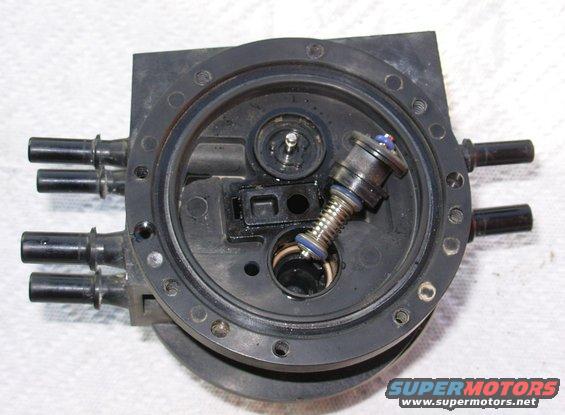

d08valve.jpg Dual Function Reservoir Switching Valve

Noting their orientations, extract each valve from its bore.  If they remain, carefully remove the white O-rings without distorting them.

The valves must be reinstalled facing the correct direction.
d08valve.jpg | Hits: 5345 | Posted on: 9/7/08 | View original size (300.13 KB)

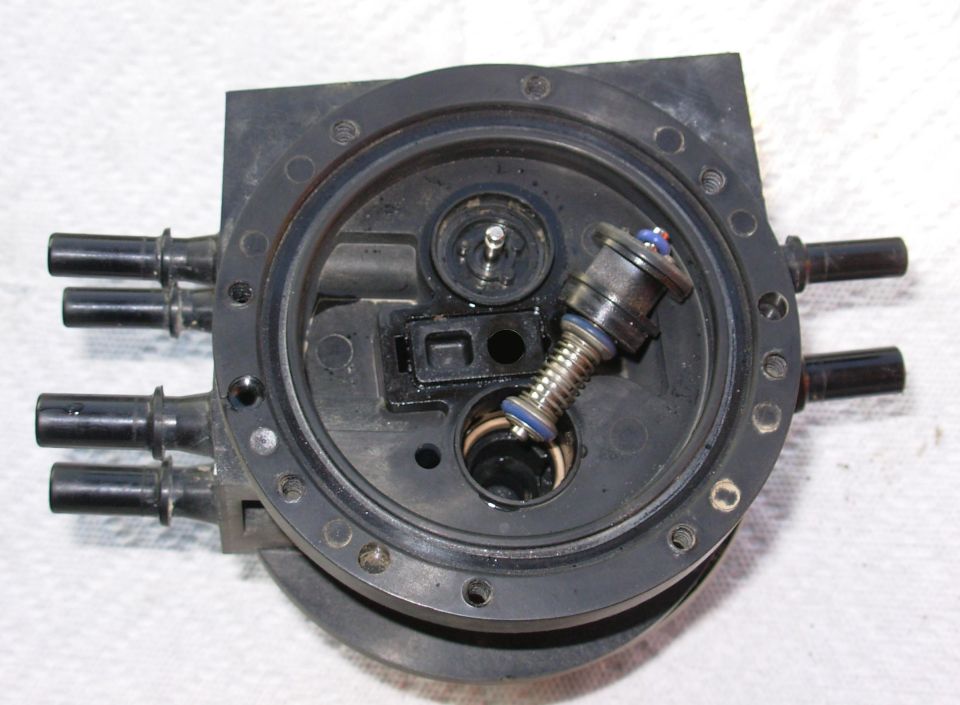

Dual Function Reservoir Switching Valve

Noting their orientations, extract each valve from its bore. If they remain, carefully remove the white O-rings without distorting them.

The valves must be reinstalled facing the correct direction.
