Dual Function Reservoir Switching Valve
IF THE IMAGE IS TOO SMALL, click it.

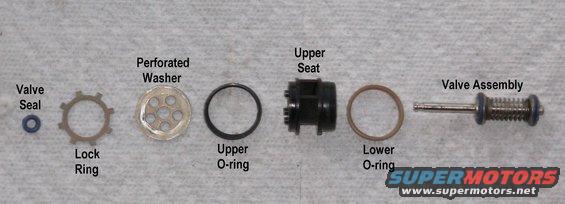

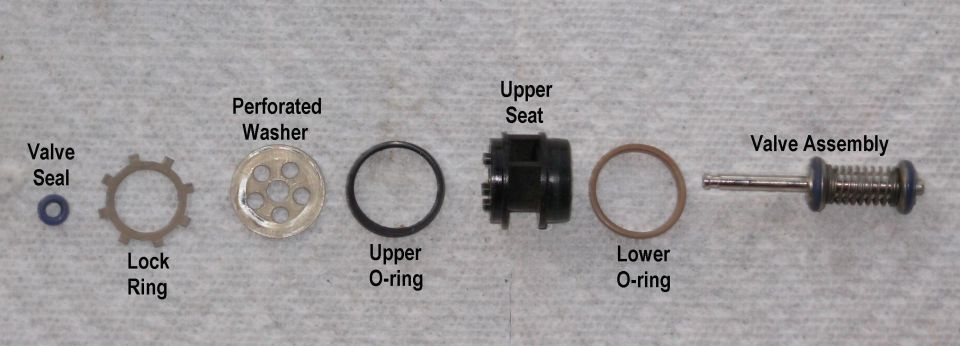

Without distorting any rubber parts, slide each component off the top end of the valve stem, keeping them in order.

If the valve assembly must be disassembled, remove the E-ring from the bottom end & carefully slide each component off. Do not use silicone grease anywhere near the fuel system. The only acceptable lubricant is clean motor oil.
