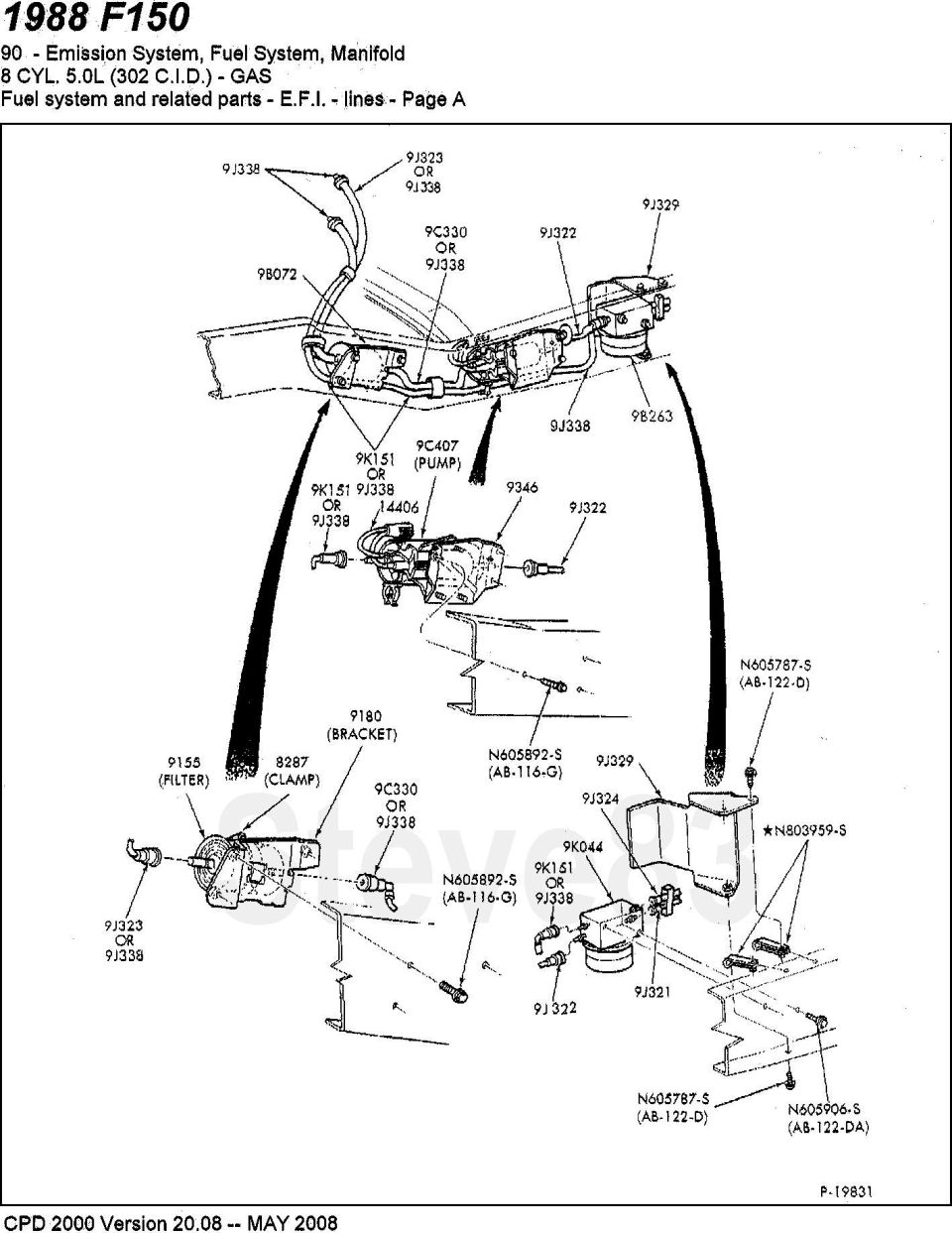

1988 Ford F-150 emission and fuel system parts diagram

Single-Function Reservoir Installation
IF THE IMAGE IS TOO SMALL, click it.

NOTE: The frame mounted fuel filter was repositioned to between the fuel pump and engine in February, 1986.

To permanently eliminate the reservoir, use these Dorman fuel tubes.
