Ford Power Distribution Box Fuse Chart - Positions 4-26, Amp Ratings & Functions

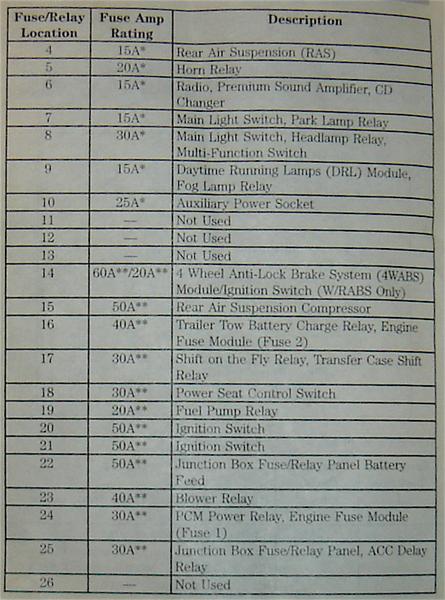

This document is a scanned page of a fuse/relay chart listing fuse and relay locations 4 through 26, their amperage ratings, and the circuits they protect. Standard fuses (marked with a single asterisk) include 15A for the Rear Air Suspension (RAS), 20A for the Horn Relay, 15A for the Radio/Premium Sound Amplifier/CD Changer, fuses for the Main Light Switch and headlamp circuits, the Daytime Running Lamps (DRL) Module and Fog Lamp Relay, and a 25A Auxiliary Power Socket fuse. Positions 11, 12, 13, and 26 are marked Not Used. Higher-amperage fuses (marked with double asterisks, likely maxi-fuses or cartridge fuses) cover the 4 Wheel Anti-Lock Brake System (4WABS) module (60A/20A), Rear Air Suspension Compressor (50A), Trailer Tow Battery Charge Relay (40A), Shift on the Fly and Transfer Case Shift Relays (30A), Power Seat (30A), Fuel Pump Relay (20A), Ignition Switch feeds (two 50A), Junction Box Fuse/Relay Panel Battery Feed (50A), Blower Relay (40A), PCM Power Relay (30A), and the Junction Box Fuse/Relay Panel ACC Delay Relay (30A). The chart lets a reader identify which fuse position and amperage corresponds to a given electrical system when diagnosing blown fuses or electrical faults.
