1997 Ford F-150 RAP Module Location Diagram - Driver's Side Instrument Panel

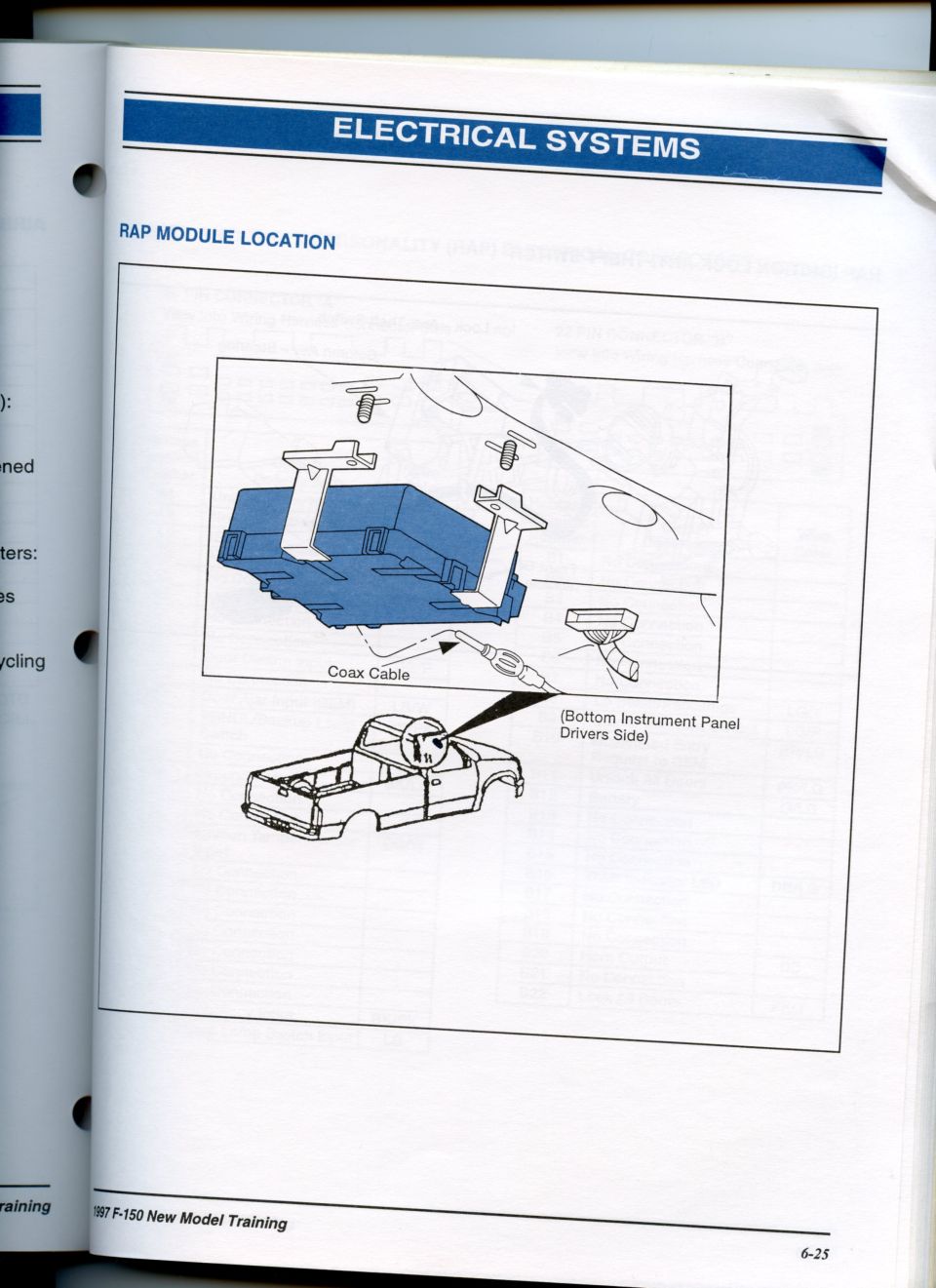

This is page 6-25 from the 1997 Ford F-150 New Model Training manual, in the Electrical Systems chapter. The page is titled 'RAP MODULE LOCATION' and shows where the Remote Anti-theft Personality (RAP) module is installed in the truck. A large illustration depicts the RAP module (highlighted in blue) mounted with two bracket-and-screw fasteners, along with an attached coax cable and its connector. A callout labels the 'Coax Cable' leading to the antenna connection. A smaller line drawing of the pickup truck cab includes a magnified callout showing that the module is located at the '(Bottom Instrument Panel Drivers Side)'. From this page a reader learns exactly where to find the RAP module in a 1997 F-150 — under the lower driver's side of the instrument panel — how it mounts, and that a coax cable (antenna lead) connects to it. Some faint text from the reverse side of the page bleeds through but is not legible; the primary content is the location diagram and its labels.
