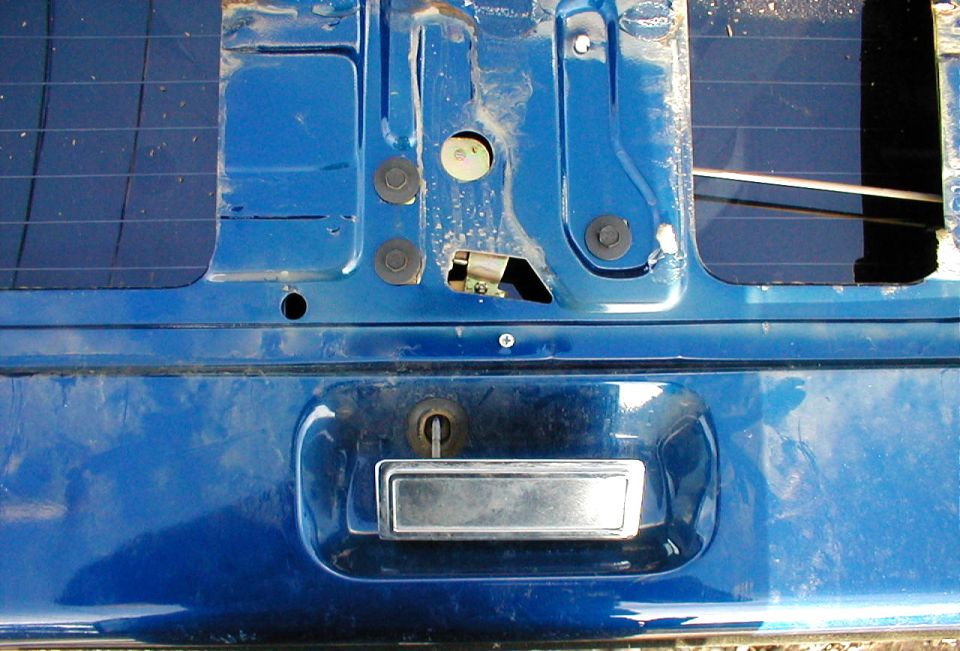

mechanism.jpg The 3 black bolts hold the center latch mechanism (remote control) and are used to align it so the handle lies flat, and the latches open at the same time.
mechanism.jpg | Hits: 10457 | Posted on: 7/7/03 | View original size (239.43 KB)

The 3 black bolts hold the center latch mechanism (remote control) and are used to align it so the handle lies flat, and the latches open at the same time.
