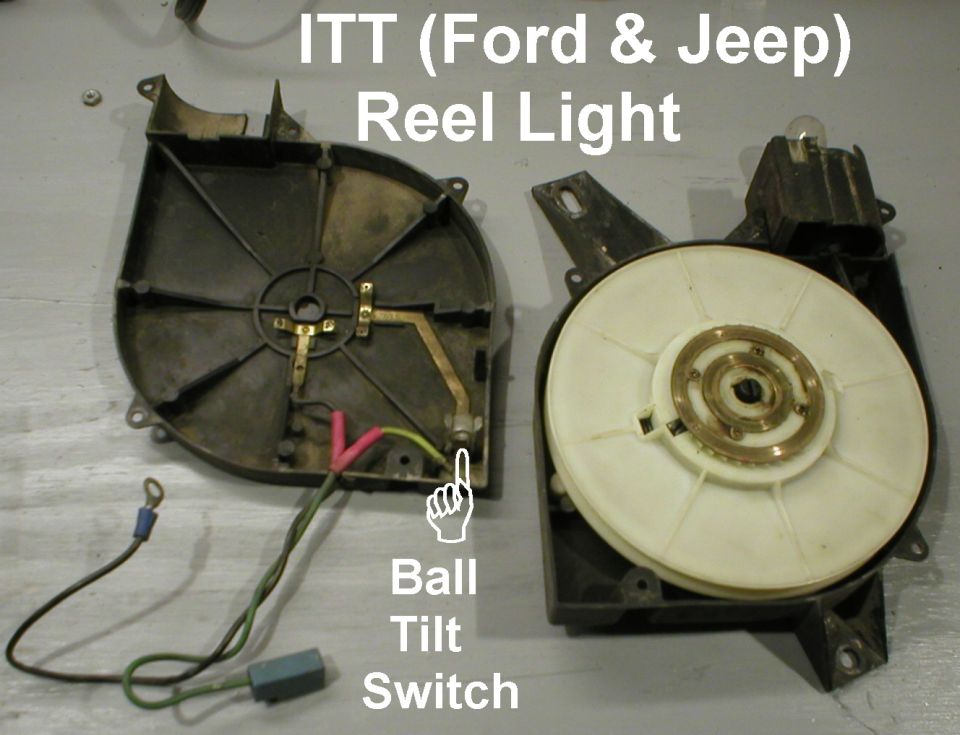

ITT Ford and Jeep reel light dome lamp housing showing ball tilt…

This light was used on ~'80~90 Ford trucks and some Jeep Cherokees (with a different connector). It reaches ~25' and has a magnetic base. There should be a clear dome over the #90 bulb, but the retainers break easily and the bulb is often replaced with an oversize one #1004, which melts the dome.

. .
_____________________________________________________________________
TSB 01-19-04 Revised Mechanical Hood Lamp Switch Replaces Mercury Switch
Publication Date: SEPTEMBER 18, 2001

FORD: 1990-95 ESCORT
1990-2000 CROWN VICTORIA
1991 TAURUS
1992-95 E SERIES
1994 F-150, F-250, F-350
2000-2001 F-150, SUPER DUTY F SERIES
2001 EXCURSION
LINCOLN: 1888-89 MARK VII
2000-2001 TOWN CAR
2002 BLACKWOOD
MERCURY: 1990-95 GRAND MARQUIS, TRACER
1993-98 VILLAGER

ISSUE: This article is to provide information on replacement hood lamp switches. The 14 degree Mercury style hood switches will no longer be available. Replacement 14 degree Mechanical switches will be available as a service replacement.

ACTION: For vehicles requiring hood lamp switch replacement, replace the 14 degree Mercury switch with new 14 degree Mechanical switch. Replace hood lamp switch per the appropriate model year Workshop Manual as needed.

Old Service Part Number - New Service Part Number
F3XY-15702-A - - - - - - - - - - YW1Z-15702-BA
E8LY-15702-A - - - - - - - - - - YW1Z-15702-BA

PART NUMBER PART NAME
YW1Z-15702-BA 14 degree Mechanical Hood Lamp Switch
OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 201000, 201200
