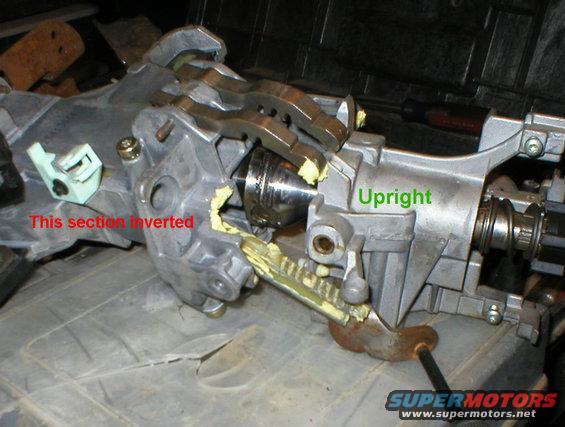

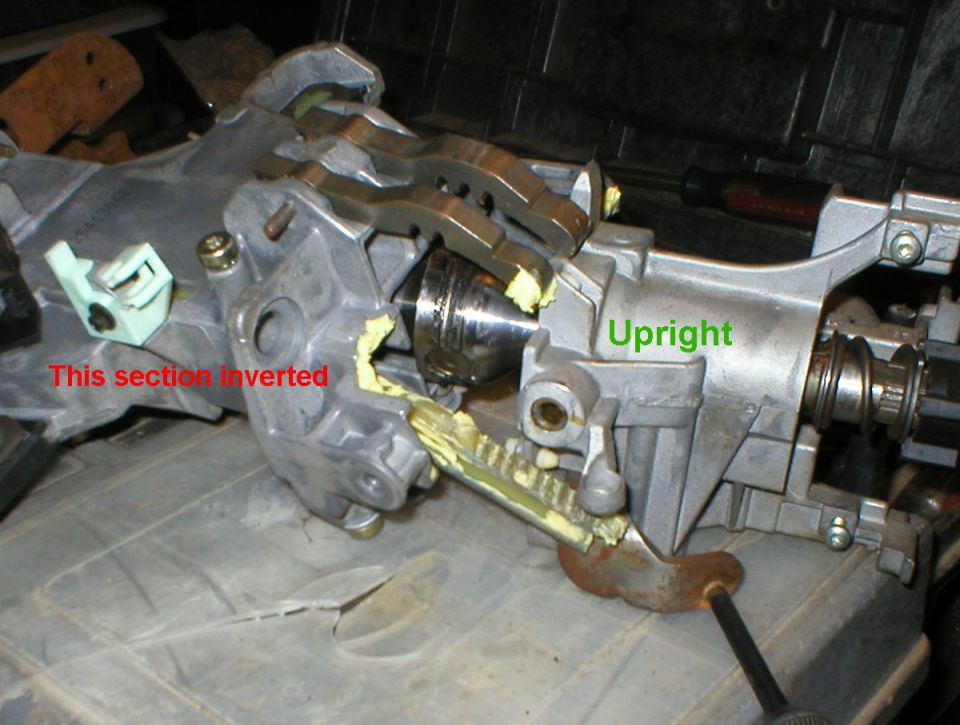

This is the ignition pushrod in '92-96 tilt columns. It's the plastic gear rack. The L section of the colulmn is upside-down. I didn't have time to disassmble it any further.
