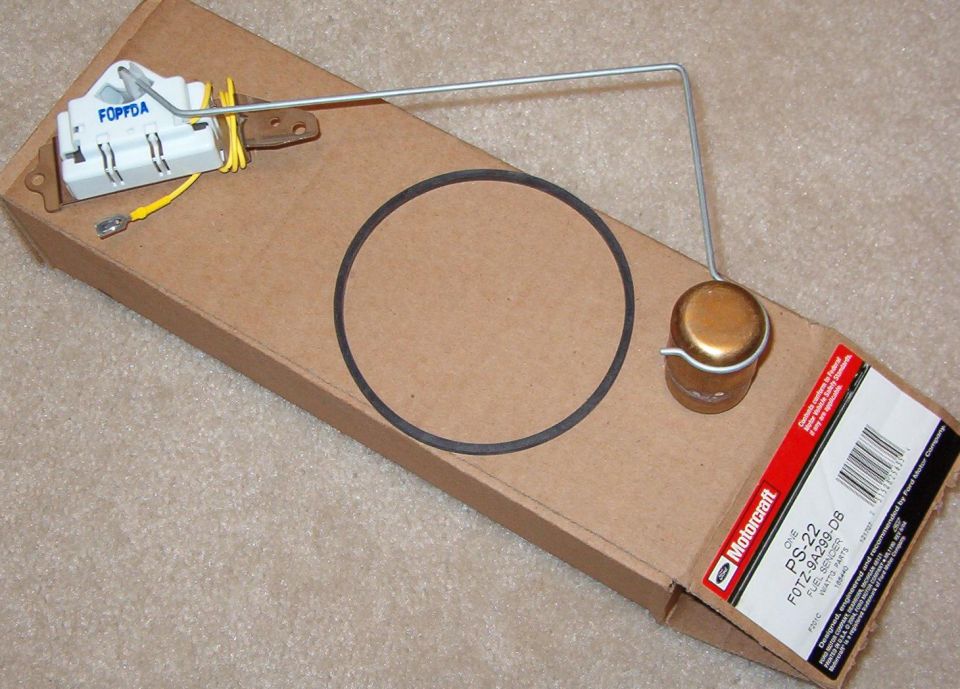

fuellevelsender.jpg PS22 (FOTZ-9A299-DB) Fuel Level Sender

Apparently, this fits all '90-96 Broncos.  '90-97 F-series use PS19 in the front tank & PS23 in the rear.  List is ~$80 tax from Ford; I paid ~$55 total from Parts Plus.  It should read ~160 Ohms Full (Up), ~16 Ohms Empty (Down, as shown).

Before buying a new one, try disassembling the plastic cover from the metal plate & polishing all the contact surfaces with super-fine steel wool to remove the fuel deposits that can interfere with the electrical flow.

Before buying craptasmic cheapo aftermarket parts, check for [url=http://owner.ford.com/servlet/ContentServer?pagename=Owner/Page/ServiceCouponsPage]coupons & service offers from Ford[/url].
--------------------------------------------------
TSB 88-18-03 Fuel Gauge Erratic

Publication Date: AUGUST 31, 1988

FORD:  1987-88 MUSTANG, TAURUS
LINCOLN-MERCURY:  1987-88 SABLE
1988 LINCOLN TOWN CAR
LIGHT TRUCK:  1987-88 BRONCO, F-SERIES

ISSUE: An erratic fuel gauge needle when the fuel tank is 1/2 to 1/4 full may be caused by excessive wear of the resistive film on the fuel pump sender assembly. The wear occurs during transporting of the vehicles via rail or truck over long distances. The fuel gauge will indicate correctly from a full tank to about 1/2 or 1/4 tank of fuel. When the fuel gauge needle is below the 1/2 to 1/4 tank range the needle will swing all the way above the full mark on the fuel gauge.

ACTION: To correct this, install a new fuel pump sender assembly. Refer to the appropriate 1988 Car/Light Truck Shop Manual, Section 24 for detailed service information. Refer to the following fuel pump sender application chart for the correct service part number.

Fuel Pump Sender Application Chart
Model Year  Application  Engine  Tank Size  Service Part
1987-88  Mustang  2.3L./5.0L  All  E7ZZ-9275-A
1988  Lincoln Town Car  5.0L  All  E8TZ-9H307-G
1987-88  F-Series/Bronco  4.9L/5.0L  All  E9VY-9275-A
1987-88  Taurus/Sable  2.5L  16.0  E8DZ-9H307-F
1987-88  Taurus/Sable (W/ Tripminder)  2.5L  18.6  E8DZ-9H307-E
1987-88  Taurus/Sable (W/O Tripminder)  2.5L  18.6  E8DZ-9H307-A
1987-88  Taurus/Sable  3.0L  16.0  E8DZ-9H307-C
1987-88  Taurus/Sable (W/ Tripminder)  3.0L  18.6  E8DZ-9H307-D
1987-88  Taurus/Sable (W/O Tripminder)  3.0L  18.6  E8DZ-9H307-B

PART NUMBER  PART NAME
E8DZ-9H307-A  Fuel Pump Sender Assembly
E8DZ-9H307-B  Fuel Pump Sender Assembly
E8DZ-9H307-C  Fuel Pump Sender Assembly
E8DZ-9H307-D  Fuel Pump Sender Assembly
E8DZ-9H307-E  Fuel Pump Sender Assembly
E8DZ-9H307-F  Fuel Pump Sender Assembly
E8TZ-9H307-G  Fuel Pump Sender Assembly
E7ZZ-9275-A  Fuel Pump Sender Assembly
E9VY-9275-A  Fuel Pump Sender Assembly

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: Eligible Under Basic Warranty Coverage

OPERATION  DESCRIPTION  TIME
881803A  F Series Aft Of Axle Tank  1.2 Hrs.
881803A  F Series Midship Tank  0.9 Hr.
881803A  F Series Both Tanks  2.0 Hrs.
881803A  Bronco  1.2 Hrs.
881803A  Lincoln Town Car  1.4 Hrs.
881803A  Mustang  0.9 Hr.
881803A  Taurus/Sable  1.0 Hr

For other TSBs, check [url=http://www.revbase.com/BBBMotor/]here[/url].

See also:
[url=https://www.supermotors.net/registry/media/768511][img]https://www.supermotors.net/getfile/768511/thumbnail/55fuelfloat.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/744437][img]https://www.supermotors.net/getfile/744437/thumbnail/fuellevelwiring.jpg[/img][/url]
fuellevelsender.jpg | Hits: 10631 | Posted on: 4/23/09 | View original size (241.29 KB)

PS22 (FOTZ-9A299-DB) Fuel Level Sender

Apparently, this fits all '90-96 Broncos. '90-97 F-series use PS19 in the front tank & PS23 in the rear. List is ~$80 tax from Ford; I paid ~$55 total from Parts Plus. It should read ~160 Ohms Full (Up), ~16 Ohms Empty (Down, as shown).

Before buying a new one, try disassembling the plastic cover from the metal plate & polishing all the contact surfaces with super-fine steel wool to remove the fuel deposits that can interfere with the electrical flow.

Before buying craptasmic cheapo aftermarket parts, check for coupons & service offers from Ford.
--------------------------------------------------
TSB 88-18-03 Fuel Gauge Erratic

Publication Date: AUGUST 31, 1988

FORD: 1987-88 MUSTANG, TAURUS
LINCOLN-MERCURY: 1987-88 SABLE
1988 LINCOLN TOWN CAR
LIGHT TRUCK: 1987-88 BRONCO, F-SERIES

ISSUE: An erratic fuel gauge needle when the fuel tank is 1/2 to 1/4 full may be caused by excessive wear of the resistive film on the fuel pump sender assembly. The wear occurs during transporting of the vehicles via rail or truck over long distances. The fuel gauge will indicate correctly from a full tank to about 1/2 or 1/4 tank of fuel. When the fuel gauge needle is below the 1/2 to 1/4 tank range the needle will swing all the way above the full mark on the fuel gauge.

ACTION: To correct this, install a new fuel pump sender assembly. Refer to the appropriate 1988 Car/Light Truck Shop Manual, Section 24 for detailed service information. Refer to the following fuel pump sender application chart for the correct service part number.

Fuel Pump Sender Application Chart
Model Year Application Engine Tank Size Service Part
1987-88 Mustang 2.3L./5.0L All E7ZZ-9275-A
1988 Lincoln Town Car 5.0L All E8TZ-9H307-G
1987-88 F-Series/Bronco 4.9L/5.0L All E9VY-9275-A
1987-88 Taurus/Sable 2.5L 16.0 E8DZ-9H307-F
1987-88 Taurus/Sable (W/ Tripminder) 2.5L 18.6 E8DZ-9H307-E
1987-88 Taurus/Sable (W/O Tripminder) 2.5L 18.6 E8DZ-9H307-A
1987-88 Taurus/Sable 3.0L 16.0 E8DZ-9H307-C
1987-88 Taurus/Sable (W/ Tripminder) 3.0L 18.6 E8DZ-9H307-D
1987-88 Taurus/Sable (W/O Tripminder) 3.0L 18.6 E8DZ-9H307-B

PART NUMBER PART NAME
E8DZ-9H307-A Fuel Pump Sender Assembly
E8DZ-9H307-B Fuel Pump Sender Assembly
E8DZ-9H307-C Fuel Pump Sender Assembly
E8DZ-9H307-D Fuel Pump Sender Assembly
E8DZ-9H307-E Fuel Pump Sender Assembly
E8DZ-9H307-F Fuel Pump Sender Assembly
E8TZ-9H307-G Fuel Pump Sender Assembly
E7ZZ-9275-A Fuel Pump Sender Assembly
E9VY-9275-A Fuel Pump Sender Assembly

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: Eligible Under Basic Warranty Coverage

OPERATION DESCRIPTION TIME
881803A F Series Aft Of Axle Tank 1.2 Hrs.
881803A F Series Midship Tank 0.9 Hr.
881803A F Series Both Tanks 2.0 Hrs.
881803A Bronco 1.2 Hrs.
881803A Lincoln Town Car 1.4 Hrs.
881803A Mustang 0.9 Hr.
881803A Taurus/Sable 1.0 Hr

For other TSBs, check here.
