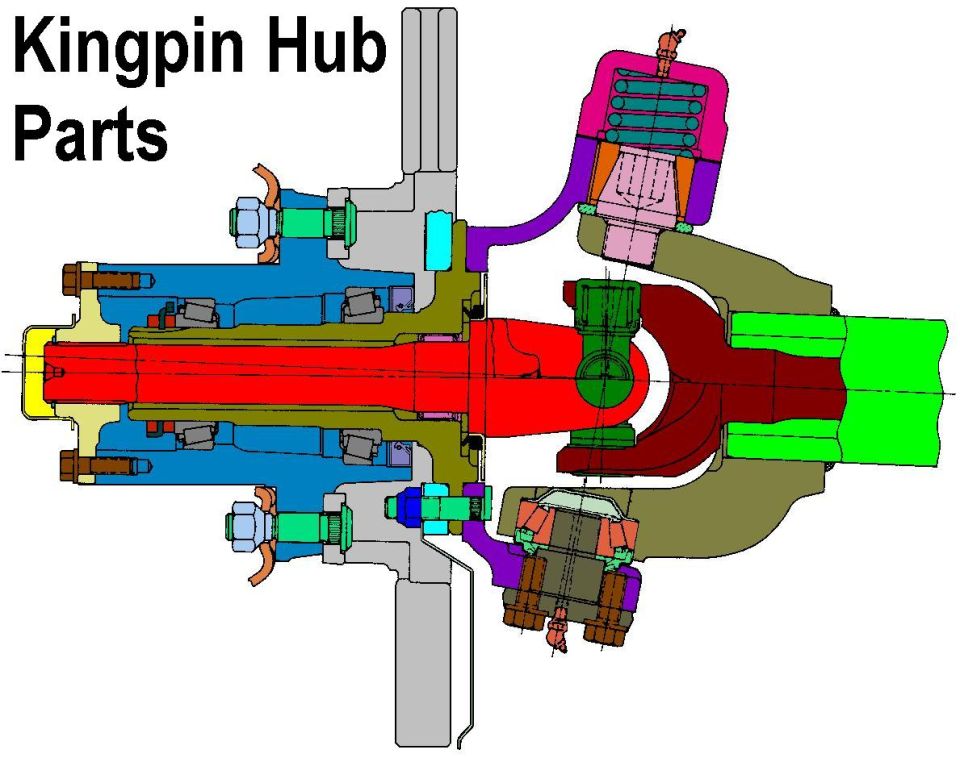

Kingpin Hub Parts This diagram shows a drive flange (pale yellow) where most have a hub lock. Ford 8.8" axle uses 10 lug studs D6AZ-1107-A ('83-00) Dana 44IFS uses 10 lug studs D6TZ-1107-A ('83-96) Ford TIB axle uses 10 lug studs F4UZ-1107-A ('94-96) Note that, to make the drawing easier, the axle tube (bright green) is shown inclined. But in actuality, it is perfectly horizontal, and the spindle (olive green) & stub shaft (red) are angled slightly down. See also:  .  |
|
![Kingpin Hub Parts
This diagram shows a drive flange (pale yellow) where most have a hub lock.
Ford 8.8" axle uses 10 lug studs D6AZ-1107-A ('83-00)
Dana 44IFS uses 10 lug studs D6TZ-1107-A ('83-96)
Ford TIB axle uses 10 lug studs F4UZ-1107-A ('94-96)
Note that, to make the drawing easier, the axle tube (bright green) is shown inclined. But in actuality, it is perfectly horizontal, and the spindle (olive green) & stub shaft (red) are angled slightly down.
See also:
