Tatou 4S ATV Track System Rear Frame Dimensions & Specs Diagram

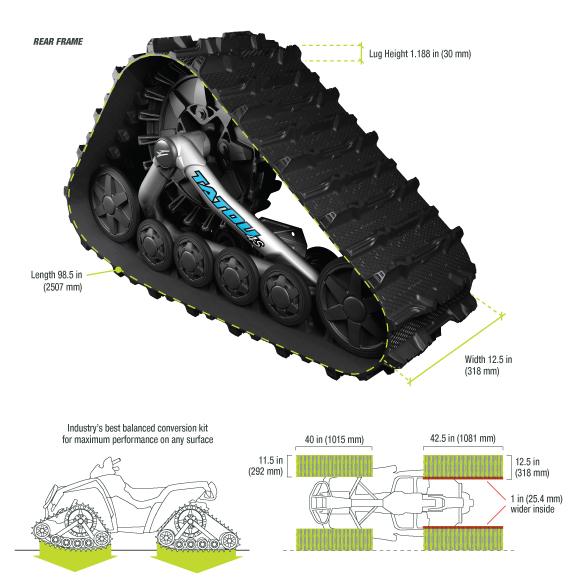

This document is a product illustration/brochure page for the Tatou 4S ATV track conversion system, showing dimensional specifications of the rear track assembly and overall kit footprint. The main graphic depicts a rear-frame track unit (a triangular rubber track with drive sprocket and bogie wheels) labeled with key dimensions: lug height of 1.188 in (30 mm), overall track length of 98.5 in (2507 mm), and track width of 12.5 in (318 mm). A lower panel promotes the kit as the "industry's best balanced conversion kit for maximum performance on any surface," accompanied by a side-view illustration of an ATV fitted with tracks and a top-view dimensional diagram. The top view specifies front track ground contact of 40 in (1015 mm) with an 11.5 in (292 mm) width, and rear track contact of 42.5 in (1081 mm) with a 12.5 in (318 mm) width, noting the rear tracks sit 1 in (25.4 mm) wider inside. A reader learns the physical dimensions and footprint of the Tatou 4S track system for evaluating fitment and ground contact area. No vehicle make, model year, or part numbers are stated on this page.
