What are the main wiring harness part group numbers shown?

The illustration calls out harnesses 14A200, 14630, 14A630, and 14631, plus switch parts 14644, 14632-R.H., 14633-L.H., 14527, 14529, and 14405.

What fastener part numbers are used to install the power window harnesses?

The drawing shows fasteners 13713, 376389-S (UU-82-D), 56910-S, 42014-S (U-240), 52012-S (U-202), and 52388-S.

Do 2-door and 4-door models use different connector locations?

Yes — the top view labels location D for 4-door bodies and location J for 2-door bodies.

Is this the complete wiring illustration?

No, a note at the bottom states "PAGE-A continued on PAGE-B," so a second page continues the illustration.

Home/ Registry/ Ford/ Ranchero/ 1972-1976/ 1972 Ford Ranchero/ Photo supermotors.net/registry/media/842966

1972 Ford Torino Power Window Wiring Diagram - Harness Routing & Part Numbers

Electric window regulator wiring system diagram for 1972 Ford Torino with connectors

‹ ›

Wiring diagram of the 1972 Torino electric window regulator system showing harnesses, switches and connectors.

AI caption December 2010 · Photo 657 of 708

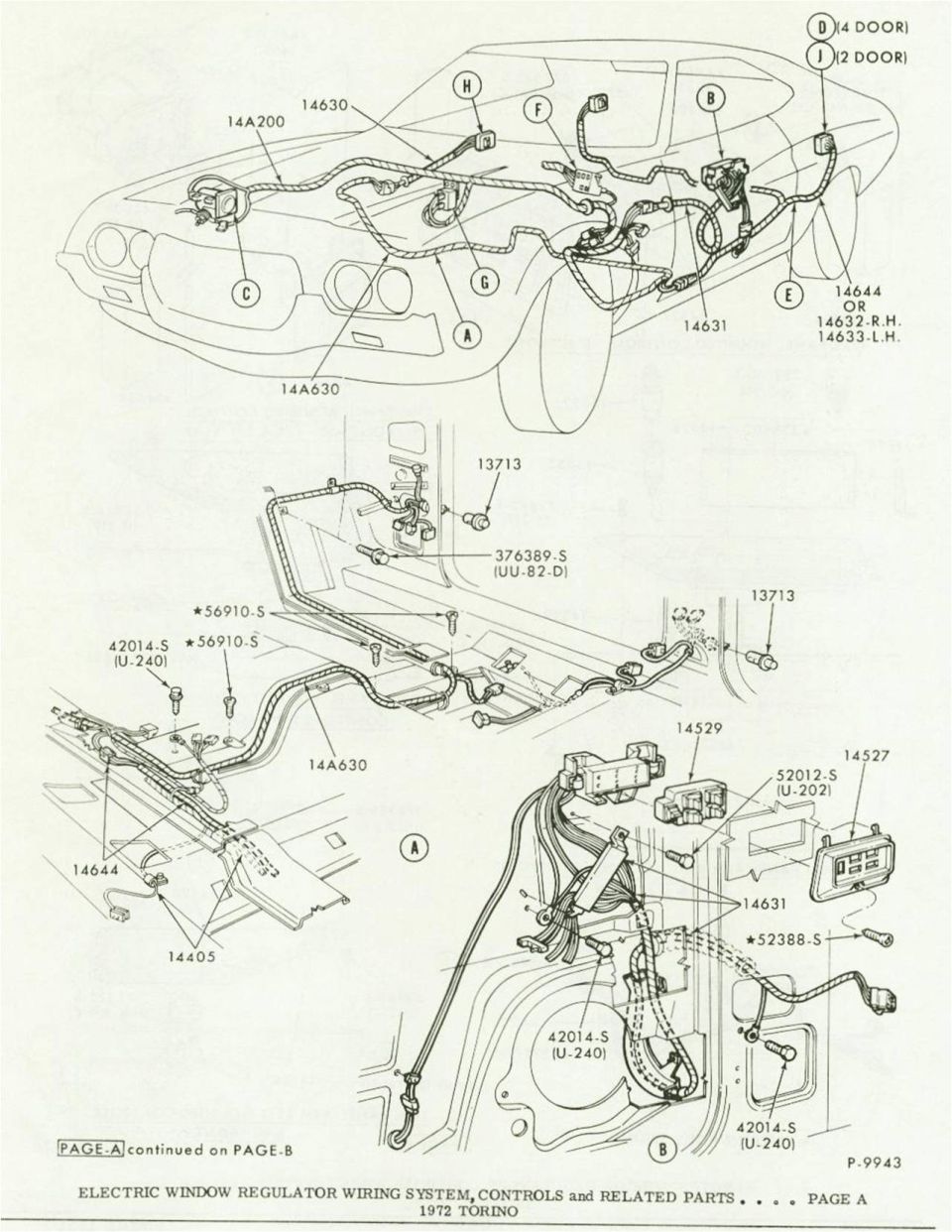

This is a scanned page from a Ford factory parts/service illustration (drawing P-9943) titled "Electric Window Regulator Wiring System, Controls and Related Parts – Page A, 1972 Torino." The page contains multiple exploded/phantom-view line drawings showing the routing and installation of the power window wiring harnesses in a 1972 Torino body. The top illustration shows an overall vehicle view with harnesses 14A200, 14630, 14A630, and 14631 routed from the front of the car through the doors and quarter panels, with circled location callouts A through J (D noted for 4-door, J for 2-door bodies) and switch/connector part numbers 14644, 14632-R.H., and 14633-L.H. Lower detail views show door and quarter-panel harness installation, including fasteners and clips: 13713, 376389-S (UU-82-D), 56910-S, 42014-S (U-240), 52012-S (U-202), and 52388-S, plus window switch/bezel parts 14527, 14529, and 14405. A note indicates "PAGE-A continued on PAGE-B." A reader can learn harness part group numbers, hardware part numbers, and routing locations for the electric window regulator wiring on 1972 Torino-based vehicles.
