What years and models does this engine mount diagram cover?

It covers 1966-1971 Ford Fairlane and Falcon models with 6-cylinder 170, 200, and 250 engines and 8-cylinder 289, 302, 351, 390, 427, 428, and 429 engines.

What are the engine mount bracket part numbers for the 6-cylinder 170 and 200 engines?

The diagram shows 6046-R.H. & L.H. insulators, 6038 (R.H. & L.H.), and 6028-R.H./6029-L.H. brackets, with hardware including 356685-S (BB-153), ★34419-S, 20348-S (B-77), 20388-S B-80, 373403-S (MM-173-J), ★373598-S, 34808-S (X-67), and 34670-S (M-54).

What do the starred (★) part numbers indicate?

A footnote states: '*USE WITH 170 C.I.D. ENGINE WITH 3 SPD. STD. TRANS. ONLY.'

What rear mount parts are common to all 6-cylinder and 8-cylinder 289, 302 & 351 engines?

The rear group shows 6068 insulator, ★356685-S, 34809-S (X-68), 20432-S (B-121), 6A023 crossmember, 44730-S (X-26), and 371951-S (MM-151).

Which parts are shown for the 6-cylinder 250 C.I.D. engine?

It shows 6046-R.H. & L.H. or 6030-R.H. & 6031-L.H. insulators, 6038-R.H. & L.H., 6028-R.H./6029-L.H. brackets, and hardware 34394-S (M-93-A), 356685-S (BB-153), 33772-S (M-89-LA), 373403-S (MM-173-J), ★56352-S, ★374886-S, and 20388-S (B-80).

Home/ Registry/ Ford/ Ranchero/ 1972-1976/ 1972 Ford Ranchero/ Photo supermotors.net/registry/media/912352

1966-1971 Ford Fairlane & Falcon Engine Mounts Diagram - 170-429 Engines

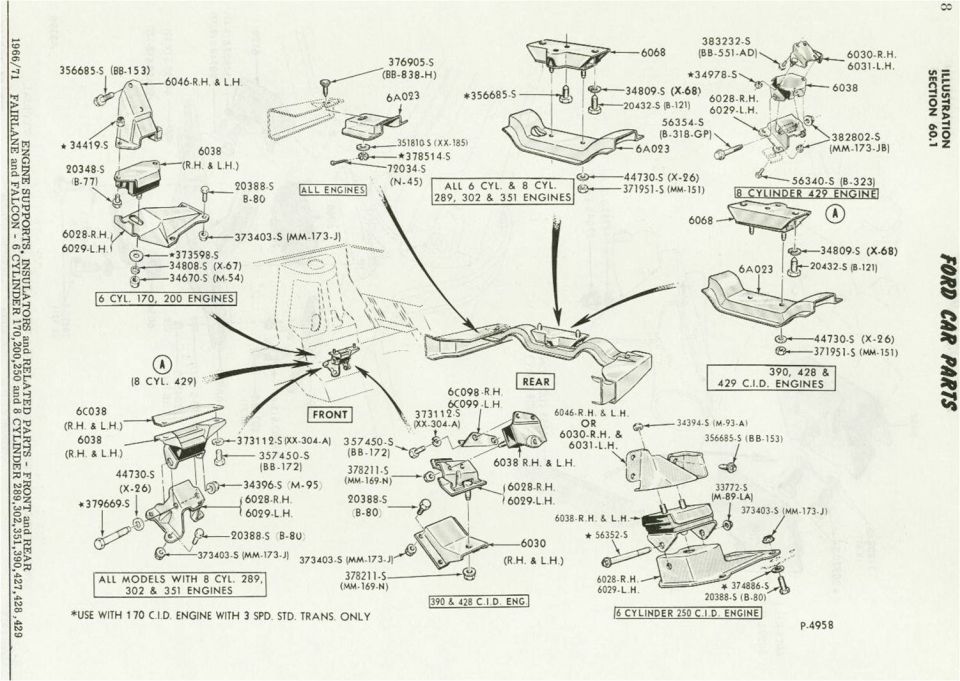

Ford engine supports and insulators exploded diagram across multiple engine types

‹ ›

Reference · 1972-1976 RancheroAll 26 exploded parts diagrams

1971 Ford Torino Radiator Grille Exploded Parts Diagram - Part Numbers

1970-1971 Ford Torino/Fairlane Grille & Headlamp Covers Exploded Parts Diagram

1966-67 Ford Fairlane & Falcon Floor Shift Steering Column Exploded Diagram

1966-1971 Ford Fairlane & Falcon Engine Mounts Diagram - 170-429 Engines

1965 Ford Falcon Engine Mount Parts Diagram - 170/200 Six & 289 V8 Supports

1965 Ford Falcon Engine Mount Diagram - 170/200 Six & 289 V8 Part Numbers

Ford Engine Camshaft, Gear, Bearings & Related Parts Exploded Diagram (P-2964)

1967-72 Ford, Thunderbird & Torino Air Leveler Rear Suspension Parts Diagram

Manual transmission exploded parts breakdown with numbered callouts for case, gears, shafts and shift forks

1960-67 Ford 3-Speed Manual Transmission 2.77 Exploded Parts Diagram

1960-67 Ford 3-Speed Overdrive Transmission Exploded Parts Diagram 352/390 V8

26exploded parts diagrams1972-1976 Ford Ranchero More reference

Ford door certification label dated 04/72 above a blank Bureau of Automotive Repair engine ID plate

Spec plate

Ford parts catalog page of '65-'72 3105/3106 R.H. and L.H. spindle part numbers for drum and disc brakes

Manual page

Air cleaner element catalog page with Motorcraft FA numbers, dimensions and K&N replacements

Brochure

Wiring diagram

1970 Ford Heater Hose Routing Diagram - Water Valve 18495 & Heater Inlet Hose

Schematic

Ranchero frame diagram annotated with body mount #1-#6 sizes and mount cross-section details

Blueprint

'67 Ranchero regular wheel jack storage and jacking instructions decal with labeled jack parts

Service procedure

Engine spec table for Ford, Lincoln, Mercury passenger and truck 6 and V6 engines by displacement and year

Torque spec

Ford car parts illustration of engine support and insulator components for various V8 and six-cylinder applications.

Part of 1972-1976 Ford Ranchero Exploded Parts Diagrams

AI caption March 2012 · Photo 680 of 707

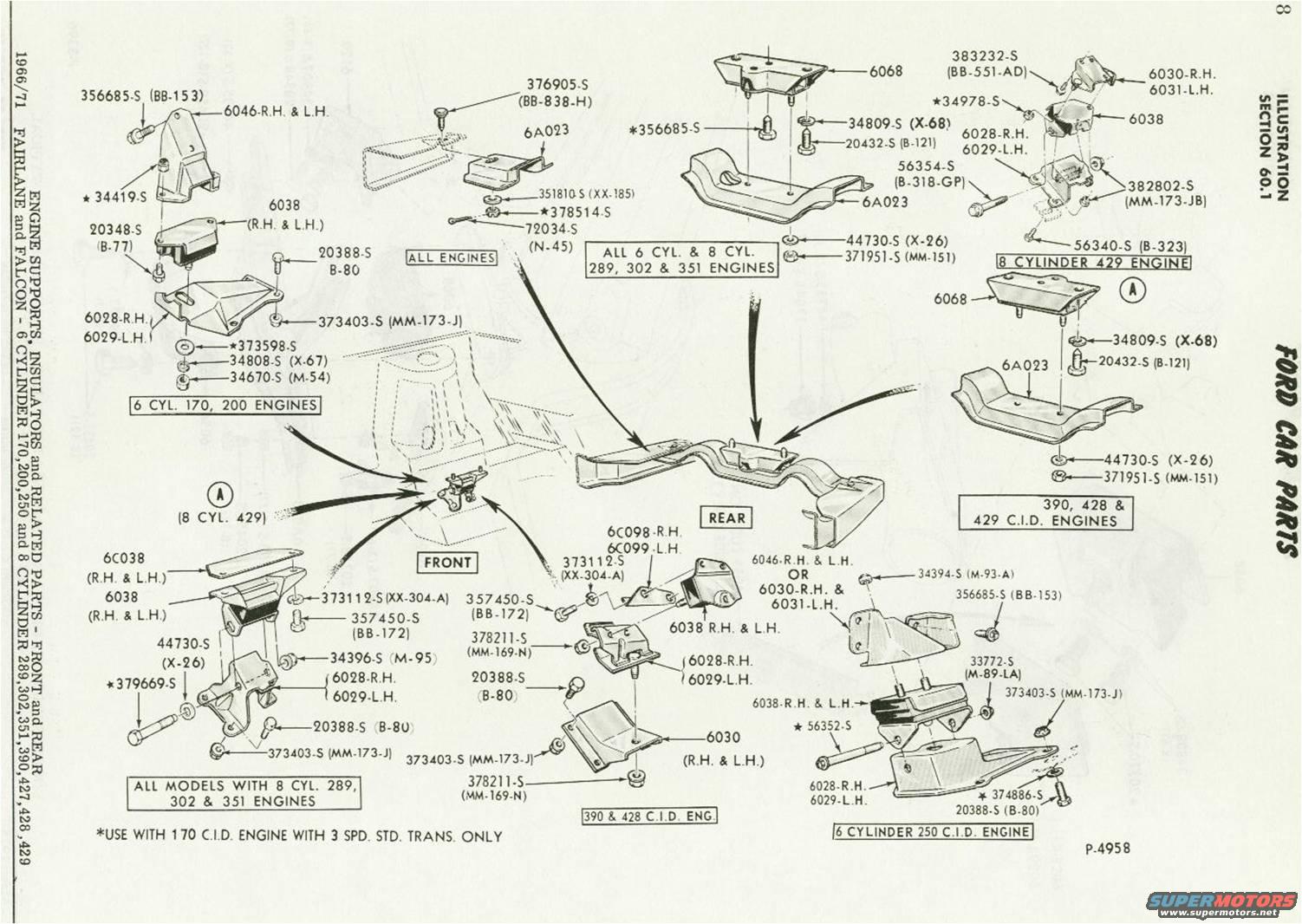

This is page 8 (Illustration Section 60.1) from a Ford Car Parts catalog covering 1966-1971 Fairlane and Falcon engine supports, insulators, and related parts, front and rear, for 6-cylinder 170, 200, and 250 engines and 8-cylinder 289, 302, 351, 390, 427, 428, and 429 engines. The page contains exploded-view drawings with part number callouts organized by engine application: 6-cyl. 170/200 engines; all engines (a rear support component group); all 6-cyl. and 8-cyl. 289/302/351 engines; 8-cylinder 429 engine; 390, 428 & 429 C.I.D. engines; all models with 8-cyl. 289/302/351 engines; 390 & 428 C.I.D. engines; and the 6-cylinder 250 C.I.D. engine. Base part numbers include 6028/6029 support brackets, 6030/6031 and 6046 insulators, 6038 insulator assemblies, 6068 rear insulator, 6A023 rear support crossmember components, and 6C038/6C098/6C099 brackets, plus fastener hardware numbers (bolts, nuts, washers) with standard-part suffixes. Diagrams are keyed FRONT and REAR to show mount positions on the chassis. A footnote states starred items are used with the 170 C.I.D. engine with 3-speed standard transmission only. Page reference P.4958.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What years and models does this engine mount diagram cover?: It covers 1966-1971 Ford Fairlane and Falcon models with 6-cylinder 170, 200, and 250 engines and 8-cylinder 289, 302, 351, 390, 427, 428, and 429 engines.
What are the engine mount bracket part numbers for the 6-cylinder 170 and 200 engines?: The diagram shows 6046-R.H. & L.H. insulators, 6038 (R.H. & L.H.), and 6028-R.H./6029-L.H. brackets, with hardware including 356685-S (BB-153), ★34419-S, 20348-S (B-77), 20388-S B-80, 373403-S (MM-173-J), ★373598-S, 34808-S (X-67), and 34670-S (M-54).
What do the starred (★) part numbers indicate?: A footnote states: '*USE WITH 170 C.I.D. ENGINE WITH 3 SPD. STD. TRANS. ONLY.'
What rear mount parts are common to all 6-cylinder and 8-cylinder 289, 302 & 351 engines?: The rear group shows 6068 insulator, ★356685-S, 34809-S (X-68), 20432-S (B-121), 6A023 crossmember, 44730-S (X-26), and 371951-S (MM-151).
Which parts are shown for the 6-cylinder 250 C.I.D. engine?: It shows 6046-R.H. & L.H. or 6030-R.H. & 6031-L.H. insulators, 6038-R.H. & L.H., 6028-R.H./6029-L.H. brackets, and hardware 34394-S (M-93-A), 356685-S (BB-153), 33772-S (M-89-LA), 373403-S (MM-173-J), ★56352-S, ★374886-S, and 20388-S (B-80).
