What part numbers are used for the 1971 Torino grille sections?

The diagram shows grille sections 8150 and 8151, with related components 8B272 and molding 8B391.

What fasteners attach the 1971 Torino grille?

The diagram calls out screws 55929-S and 57030-S, screw/nut 384273-S, and clips/nuts 383356-S (MM-216-PA) and 384963-S (MM-187-F).

What do the triangle (▲) symbols mean on this diagram?

Parts marked with a triangle (8242, 8243, 8418, 8419) are 'also serviced in 8B271-2 assy.' per the footnote.

Which body types does this grille diagram cover?

1971 Torino body types 54C, 57C, E, 63C, F, 65C, E, 66B, C, E, 71C, E, 76F — without headlamp covers.

When was this illustration published?

Home/ Registry/ Ford/ Ranchero/ 1972-1976/ 1972 Ford Ranchero/ Photo supermotors.net/registry/media/1010941

1971 Ford Torino Radiator Grille Exploded Parts Diagram - Part Numbers

Ford Torino radiator grille and related parts exploded illustration

‹ ›

Ford car parts illustration of 1971 Torino radiator grille and related mounting components with part numbers.

AI caption February 2014 · Photo 686 of 708

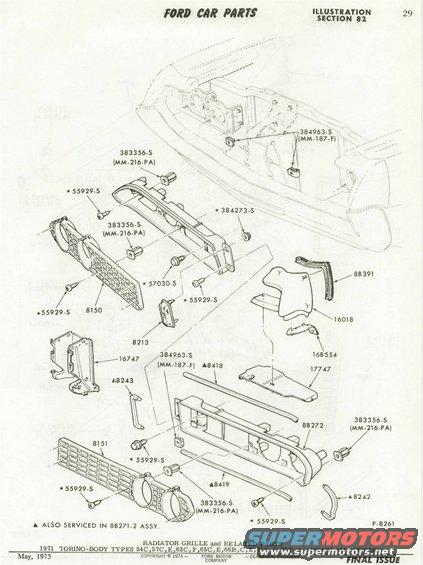

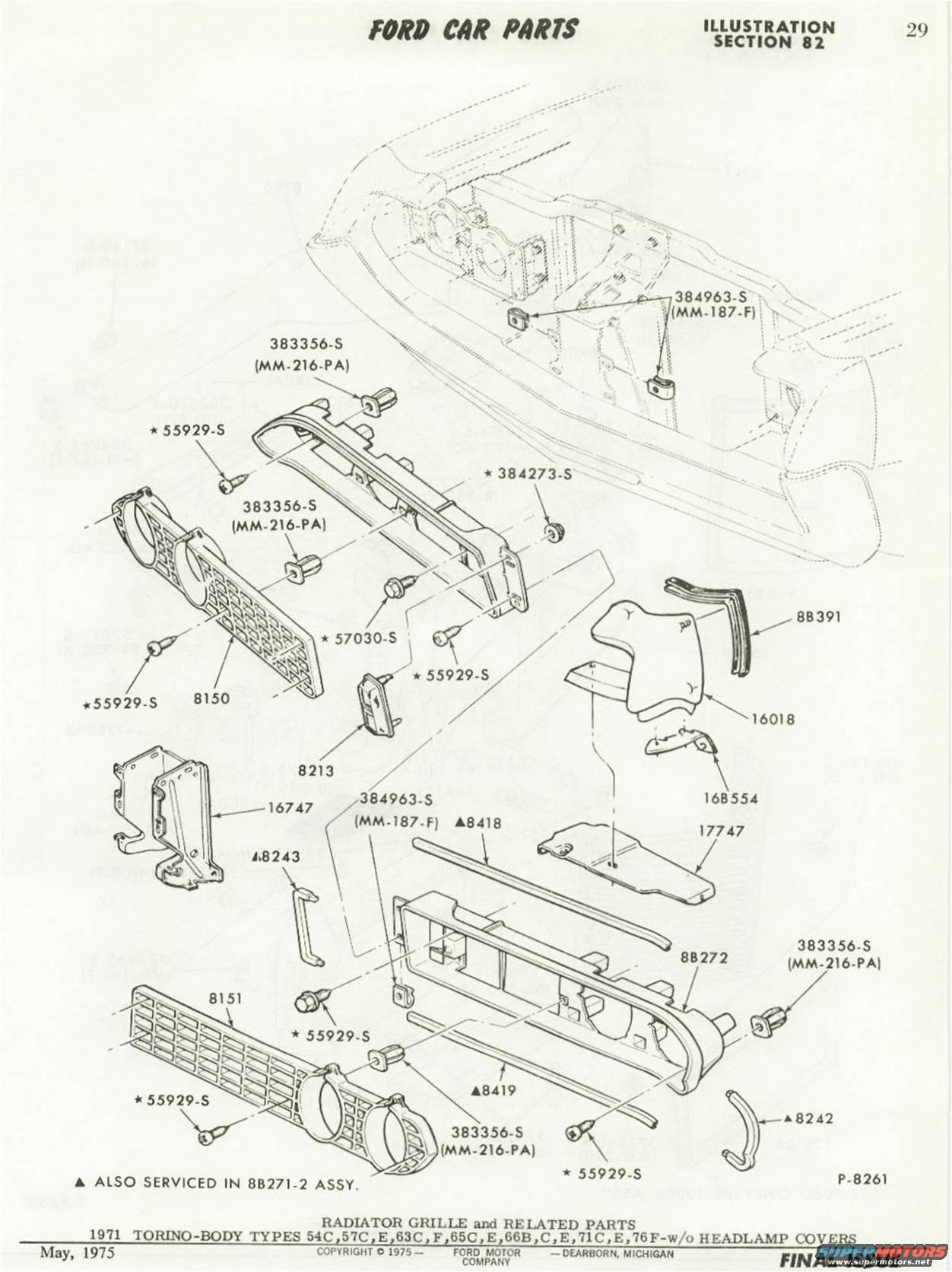

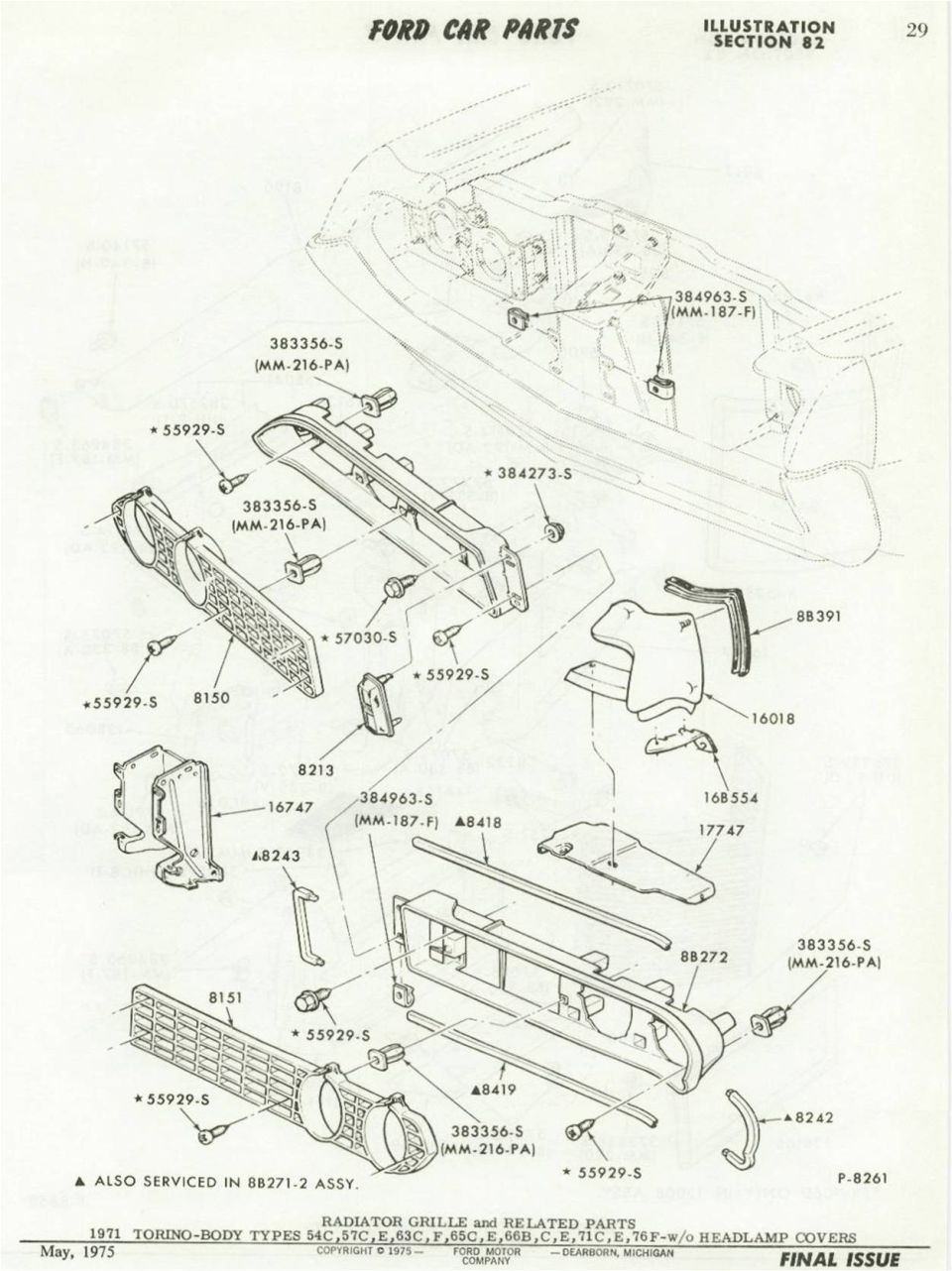

This is page 29 of Ford Car Parts Illustration Section 82 (May 1975, Final Issue, Ford Motor Company, Dearborn, Michigan), showing an exploded parts diagram titled 'Radiator Grille and Related Parts' for the 1971 Torino, body types 54C, 57C, E, 63C, F, 65C, E, 66B, C, E, 71C, E, and 76F, without headlamp covers. The illustration (drawing number P-8261) depicts the front grille assembly and surrounding components with basic part number callouts: main grille sections 8150 and 8151, grille reinforcement/support 8B272, molding 8B391, panels 16018, 16747, 16B554 and 17747, ornament 8213, and trim/molding pieces 8242, 8243, 8418 and 8419 (parts marked with a triangle are also serviced in the 8B271-2 assembly). Fastener and hardware part numbers shown include screws 55929-S, 57030-S and 384273-S, plus clips/nuts 383356-S (MM-216-PA) and 384963-S (MM-187-F). The exploded layout shows how each grille segment, bracket, molding and fastener relates to the front-end sheet metal, useful for restorers identifying original Ford part numbers for a 1971 Torino grille without headlamp covers.

This document covers 1971, which may differ from this 1972 Ford Ranchero.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What part numbers are used for the 1971 Torino grille sections?: The diagram shows grille sections 8150 and 8151, with related components 8B272 and molding 8B391.
What fasteners attach the 1971 Torino grille?: The diagram calls out screws 55929-S and 57030-S, screw/nut 384273-S, and clips/nuts 383356-S (MM-216-PA) and 384963-S (MM-187-F).
What do the triangle (▲) symbols mean on this diagram?: Parts marked with a triangle (8242, 8243, 8418, 8419) are 'also serviced in 8B271-2 assy.' per the footnote.
Which body types does this grille diagram cover?: 1971 Torino body types 54C, 57C, E, 63C, F, 65C, E, 66B, C, E, 71C, E, 76F — without headlamp covers.
When was this illustration published?: May 1975, marked 'Final Issue,' from Ford Car Parts Illustration Section 82, copyright 1975 Ford Motor Company, Dearborn, Michigan.
