What are the part numbers for the hidden headlamp doors/covers?

#13A136 for the right hand and #13A137 for the left hand, noted with the '#' symbol meaning all body types with hidden headlamps.

What is the basic part number for the grille assembly?

13099 — several small parts (8419, 8221, 8243) are marked as also serviced in the 13099 assembly.

Which grille insert is for 1970 cars without hidden headlamps?

Part 13064, marked with the % symbol (1970 only, all body types without hidden headlamps); its fastener is 376504-S.

Home/ Registry/ Ford/ Ranchero/ 1972-1976/ 1972 Ford Ranchero/ Photo supermotors.net/registry/media/1010940

1970-1971 Ford Torino/Fairlane Grille & Headlamp Covers Exploded Parts Diagram

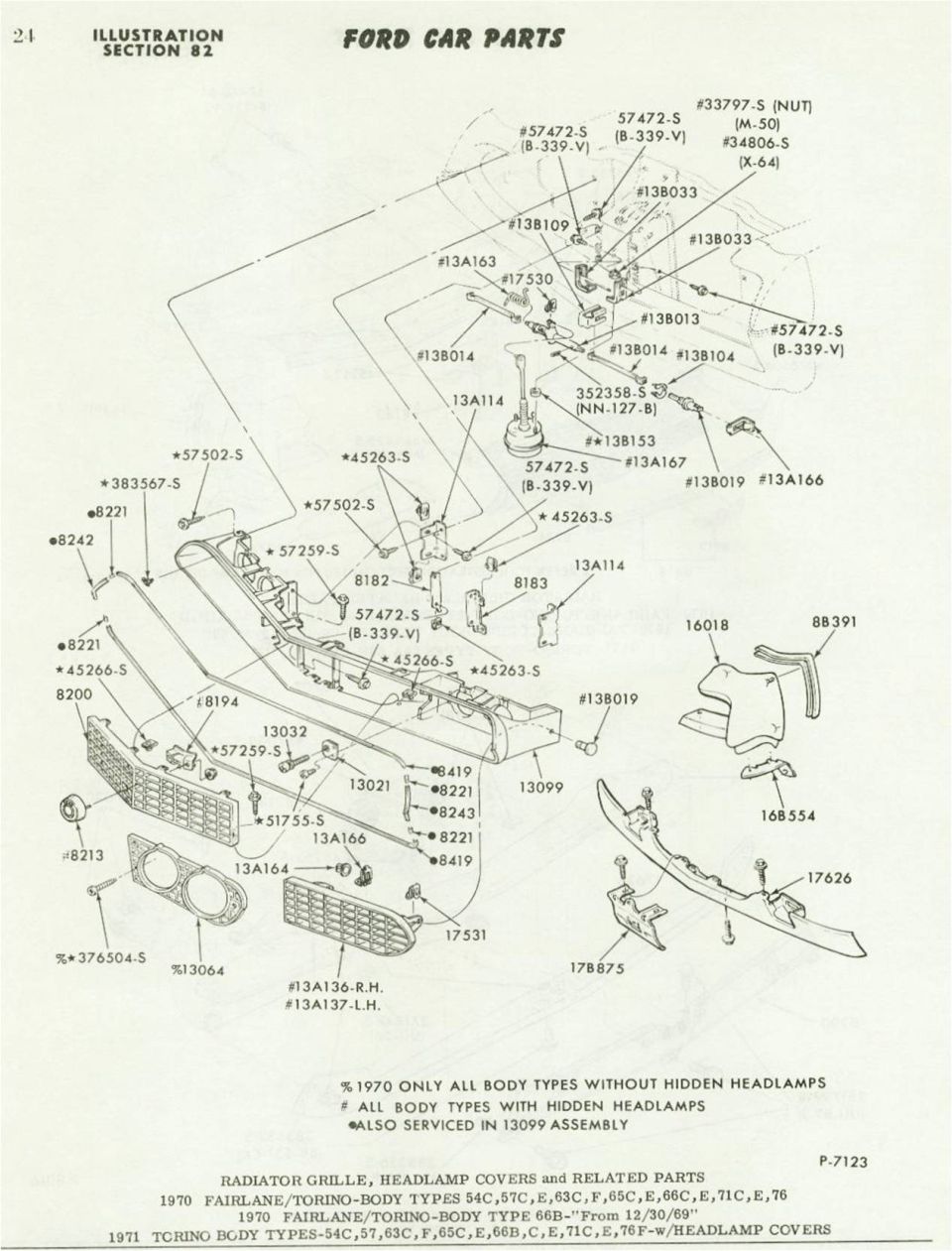

Ford radiator grille and headlamp cover exploded parts illustration

‹ ›

Ford car parts illustration of radiator grille, headlamp covers and related trim with part numbers.

AI caption February 2014 · Photo 685 of 708

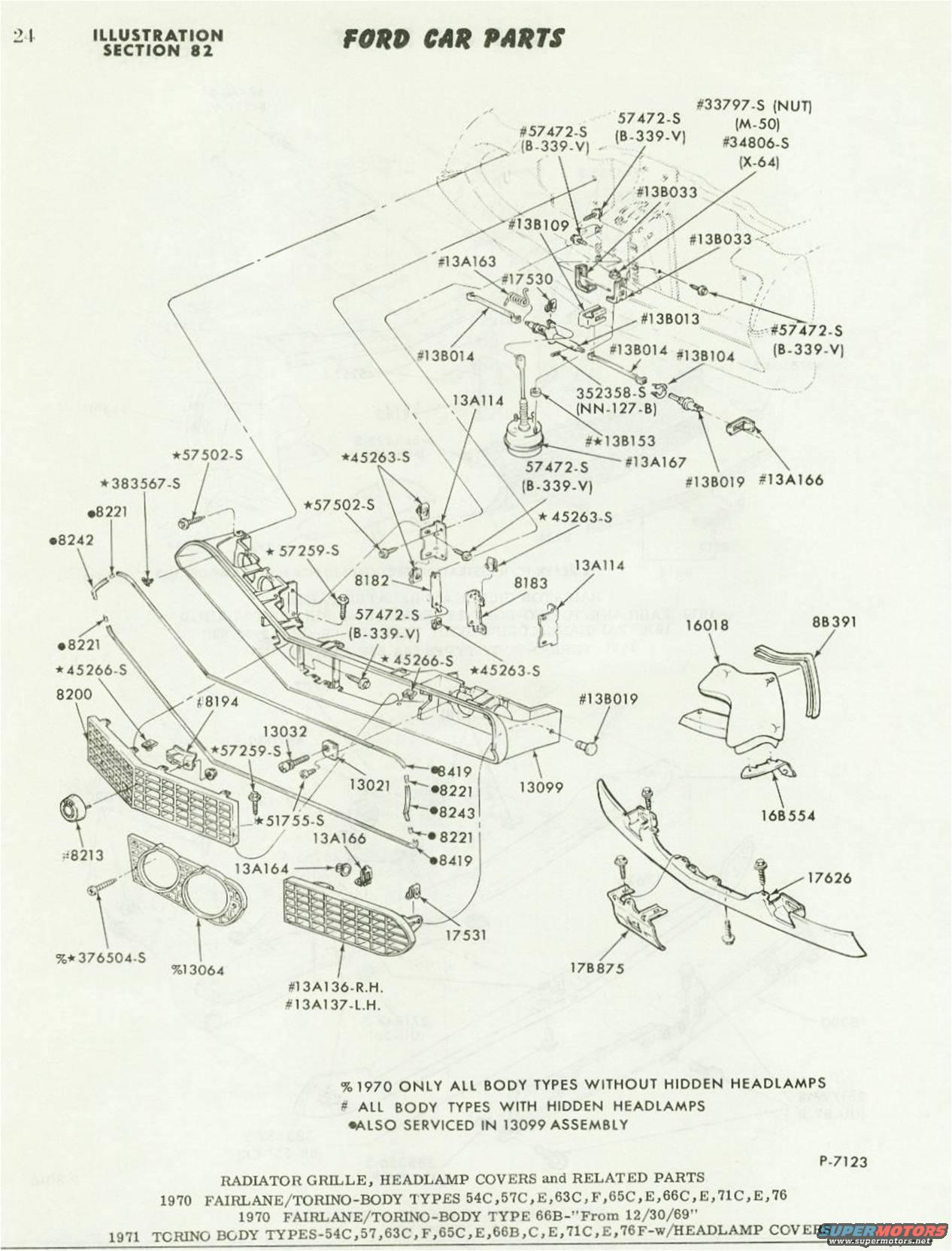

This is page 24 (Illustration Section 82) from a Ford Car Parts catalog, showing an exploded parts diagram of the radiator grille, headlamp covers, and related parts for 1970 Fairlane/Torino body types 54C, 57C, E, 63C, F, 65C, E, 66C, E, 71C, E, 76; 1970 Fairlane/Torino body type 66B "From 12/30/69"; and 1971 Torino body types 54C, 57, 63C, F, 65C, E, 66B, C, E, 71C, E, 76F with headlamp covers. The illustration (plate P-7123) shows the grille assembly (13099), grille inserts (8200, 13064), headlamp door/cover components (#13A136-R.H., #13A137-L.H.), vacuum actuator hardware for hidden headlamps (13A114, #13B153, #13A167, #13B019, #13A166), moldings and stone deflector parts (16018, 8B391, 16B554, 17626, 17B875, 17531), and numerous fasteners (57472-S, 45263-S, 57502-S, 383567-S, 376504-S, etc.). Footnote symbols indicate parts specific to 1970 without hidden headlamps (%), all body types with hidden headlamps (#), and parts also serviced in the 13099 grille assembly (●). Useful for identifying Ford basic part numbers when restoring or repairing the front grille and hidden-headlamp system on these cars.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What vehicles does this grille parts diagram cover?: 1970 Fairlane/Torino body types 54C, 57C, E, 63C, F, 65C, E, 66C, E, 71C, E, 76; 1970 Fairlane/Torino body type 66B 'From 12/30/69'; and 1971 Torino body types 54C, 57, 63C, F, 65C, E, 66B, C, E, 71C, E, 76F with headlamp covers.
What are the part numbers for the hidden headlamp doors/covers?: #13A136 for the right hand and #13A137 for the left hand, noted with the '#' symbol meaning all body types with hidden headlamps.
What do the %, #, and ● symbols mean on the diagram?: % = 1970 only, all body types without hidden headlamps; # = all body types with hidden headlamps; ● = also serviced in the 13099 assembly.
What is the basic part number for the grille assembly?: 13099 — several small parts (8419, 8221, 8243) are marked as also serviced in the 13099 assembly.
Which grille insert is for 1970 cars without hidden headlamps?: Part 13064, marked with the % symbol (1970 only, all body types without hidden headlamps); its fastener is 376504-S.
