What transmission does this diagram cover?

The 1960/67 3-speed manual transmission, 2.77 type, shown as typical for Falcon, Fairlane, and Mustang.

What is the Ford part group number for the transmission main case?

The main case is identified as 7006 in the exploded diagram.

What number identifies the extension (tailshaft) housing?

The extension housing is labeled 7A039, with its bushing/seal area shown as 7A034 and 7052.

What part numbers are shown for the top cover and its gasket?

The cover is 7222 and the gasket is 7223, attached with 372110-S (BB-547) screws.

Which numbers identify the countershaft cluster gear and reverse idler?

The cluster gear is 7113 on countershaft 7111, and the reverse idler gear is 7141 on shaft 7140.

Home/ Registry/ Ford/ Ranchero/ 1972-1976/ “JUNK PYL”/ Photo supermotors.net/registry/media/885230

1960-67 Ford 3-Speed Manual Transmission 2.77 Exploded Parts Diagram

Ford three-speed transmission exploded parts illustration with part numbers

‹ ›

Exploded parts breakdown of a Ford manual transmission showing gears, shafts and case with catalog part numbers.

AI caption September 2011 · Photo 569 of 1042

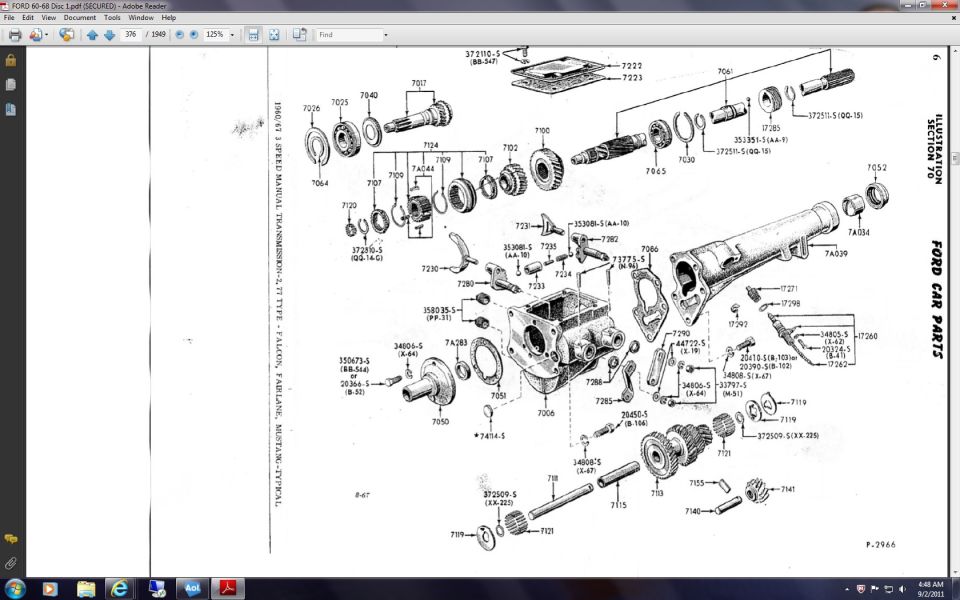

This is a scanned page from a Ford Car Parts illustration catalog (Illustration Section 70, plate P-2966, dated 8-67), showing an exploded parts diagram of the 1960/67 3-speed manual transmission, 2.77 type, as used in Falcon, Fairlane, and Mustang (labeled 'typical'). The drawing depicts the complete transmission disassembled: input shaft (7017) with front bearing (7025) and retainer, main case (7006), extension housing (7A039), output shaft assembly, synchronizer assemblies (7124, 7A044), gears (7100, 7102), cluster gear (7113) and countershaft (7111), reverse idler gear (7141), shift forks (7230, 7231), shift levers and cams (7280, 7282), top cover (7222) with gasket (7223), speedometer drive components (17285, 17271, 17292, 17260/17262 area), and numerous hardware items identified by Ford standard part numbers with suffix codes (e.g., 372110-S (BB-547), 353081-S (AA-10), 358035-S (PP-31), 34806-S (X-64), 372509-S (XX-225)). Each component is keyed with its Ford basic part group number, allowing a reader to identify and order individual transmission parts and see their assembly relationships. The page is from a 1960-68 Ford master parts catalog PDF.
