This is just the slack in the original (single-alternator) belt…

This is just the slack in the original (single-alternator) belt pulled over to represent the future routing. The magnet is pretty close to the actual idler pulley's size. http://www.dieselplace.com/forum/showthread.php?t=427664 The dual-alternator belt is 6 ribs 120.3" long; at [url=http://www.oreillyauto.com/site/c/detail/GAT9/K061203/]O'Reilly[/url], a [url=https://www.amazon.com/Gates-K061203-Multi-V-Groove-Belt/dp/B000C2UK3I]Gates Micro-V AT K061203[/url] is ~$52.
This is just the slack in the original (single-alternator) belt pulled over to represent the future routing. The magnet is pretty close to the actual idler pulley's size. http://www.dieselplace.com/forum/showthread.php?t=427664 The dual-alternator belt is 6 ribs 120.3" long; at [url=http://www.oreillyauto.com/site/c/detail/GAT9/K061203/]O'Reilly[/url], a [url=https://www.amazon.com/Gates-K061203-Multi-V-Groove-Belt/dp/B000C2UK3I]Gates Micro-V AT K061203[/url] is ~$52.Original file
This is just the slack in the original (single-alternator) belt pulled over to represent the future routing. The magnet is pretty close to the actual idler pulley's size. http://www.dieselplace.com/forum/showthread.php?t=427664 The dual-alternator belt is 6 ribs 120.3" long; at [url=http://www.oreillyauto.com/site/c/detail/GAT9/K061203/]O'Reilly[/url], a [url=https://www.amazon.com/Gates-K061203-Multi-V-Groove-Belt/dp/B000C2UK3I]Gates Micro-V AT K061203[/url] is ~$52.

Dual Alternator BracketView all 30

GM belt idler pulley, bracket, bolts and radiator hose support with part numbers Engine bay accessory drive showing alternator, A/C compressor and serpentine belt Engine bay with alternator, braided hose, and tan fluid reservoir Wiring diagram for 1994-2000 Ford dual alternator setup with numbered connectors Engine bay accessory bracket, ribbed pulley, braided hose and power steering cap 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo Engine bay showing alternator and wire brush during a repair Engine bay with EverStart Maxx battery, cables, and brake fluid reservoir cap 1997 Chevrolet C/K Pickup photo Close-up of alternator, A/C compressor, and serpentine belt in a GM truck engine bay Engine bay close-up showing alternator, AC compressor, serpentine belt and tensioner pulley 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo Clamp multimeter reading 20.9 clipped near an alternator in an engine bay with black hoses Engine bay with alternator, serpentine belt, and red clamp meter reading 02.85 on a battery 30photos in this albumView all

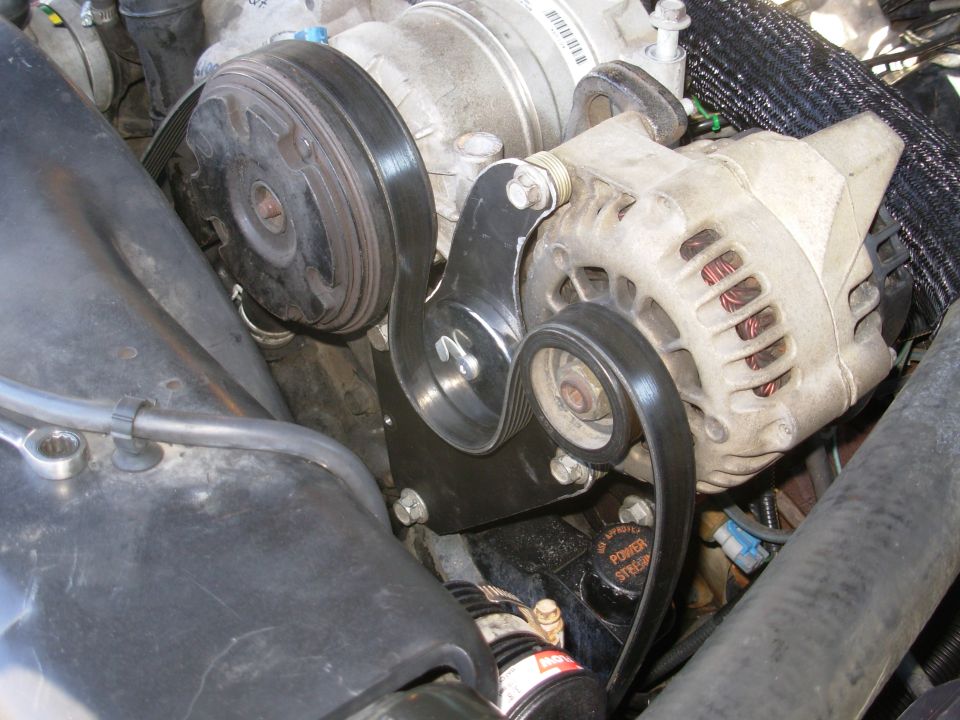

This is just the slack in the original (single-alternator) belt pulled over to represent the future routing. The magnet is pretty close to the actual idler pulley's size.

http://www.dieselplace.com/forum/showthread.php?t=427664

The dual-alternator belt is 6 ribs 120.3" long; at O'Reilly, a Gates Micro-V AT K061203 is ~$52.
