This is just the slack in the belt pulled over to represent the…

This is just the slack in the belt pulled over to represent the future routing. The magnet is pretty close to the actual idler pulley's size. http://www.dieselplace.com/forum/showthread.php?t=427664 The dual-alternator belt is 6 ribs 120.3" long; at [url=http://www.oreillyauto.com/site/c/detail/GAT9/K061203/]O'Reilly[/url], a [url=https://www.amazon.com/Gates-K061203-Multi-V-Groove-Belt/dp/B000C2UK3I]Gates Micro-V AT K061203[/url] is ~$52.
This is just the slack in the belt pulled over to represent the future routing. The magnet is pretty close to the actual idler pulley's size. http://www.dieselplace.com/forum/showthread.php?t=427664 The dual-alternator belt is 6 ribs 120.3" long; at [url=http://www.oreillyauto.com/site/c/detail/GAT9/K061203/]O'Reilly[/url], a [url=https://www.amazon.com/Gates-K061203-Multi-V-Groove-Belt/dp/B000C2UK3I]Gates Micro-V AT K061203[/url] is ~$52.Original file
This is just the slack in the belt pulled over to represent the future routing. The magnet is pretty close to the actual idler pulley's size. http://www.dieselplace.com/forum/showthread.php?t=427664 The dual-alternator belt is 6 ribs 120.3" long; at [url=http://www.oreillyauto.com/site/c/detail/GAT9/K061203/]O'Reilly[/url], a [url=https://www.amazon.com/Gates-K061203-Multi-V-Groove-Belt/dp/B000C2UK3I]Gates Micro-V AT K061203[/url] is ~$52.

Dual Alternator BracketView all 30

GM belt idler pulley, bracket, bolts and radiator hose support with part numbers Engine bay accessory drive showing alternator, A/C compressor and serpentine belt Engine bay with alternator, braided hose, and tan fluid reservoir Wiring diagram for 1994-2000 Ford dual alternator setup with numbered connectors Engine bay accessory bracket, ribbed pulley, braided hose and power steering cap 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo Engine bay showing alternator and wire brush during a repair Engine bay with EverStart Maxx battery, cables, and brake fluid reservoir cap 1997 Chevrolet C/K Pickup photo Close-up of alternator, A/C compressor, and serpentine belt in a GM truck engine bay Engine bay close-up showing alternator, AC compressor, serpentine belt and tensioner pulley 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo Clamp multimeter reading 20.9 clipped near an alternator in an engine bay with black hoses Engine bay with alternator, serpentine belt, and red clamp meter reading 02.85 on a battery 30photos in this albumView all

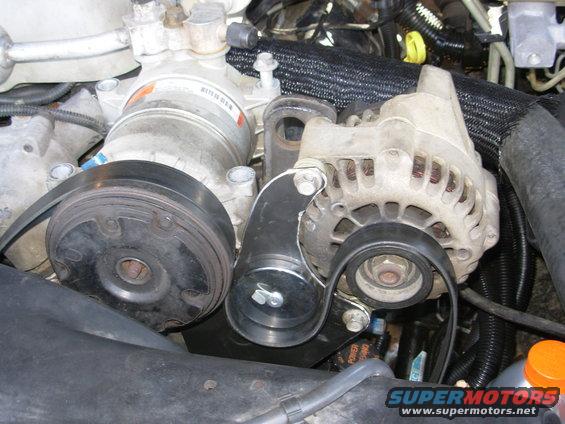

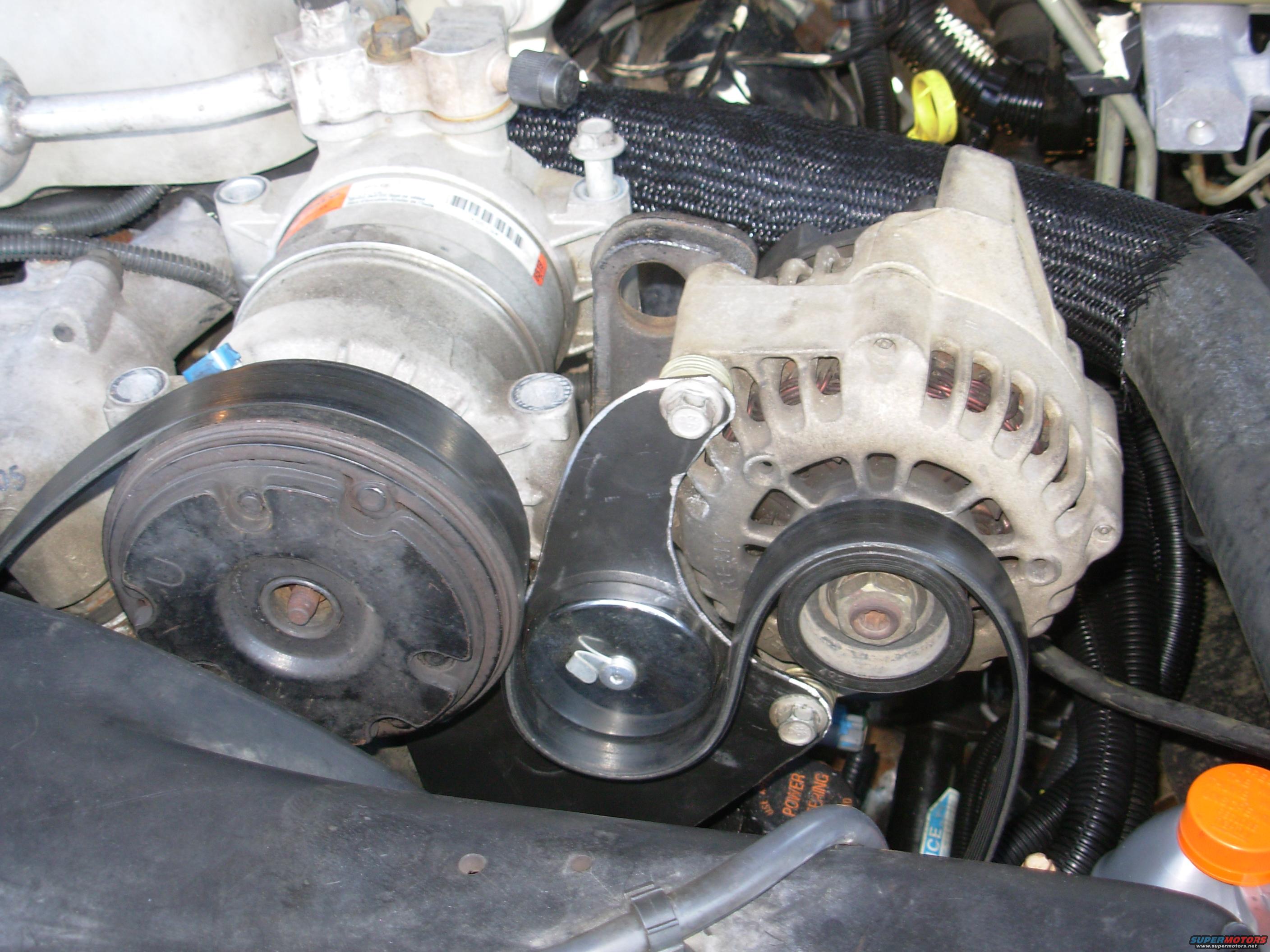

This is just the slack in the belt pulled over to represent the future routing. The magnet is pretty close to the actual idler pulley's size.

http://www.dieselplace.com/forum/showthread.php?t=427664

The dual-alternator belt is 6 ribs 120.3" long; at O'Reilly, a Gates Micro-V AT K061203 is ~$52.

Owner caption · Photo 289 of 401
