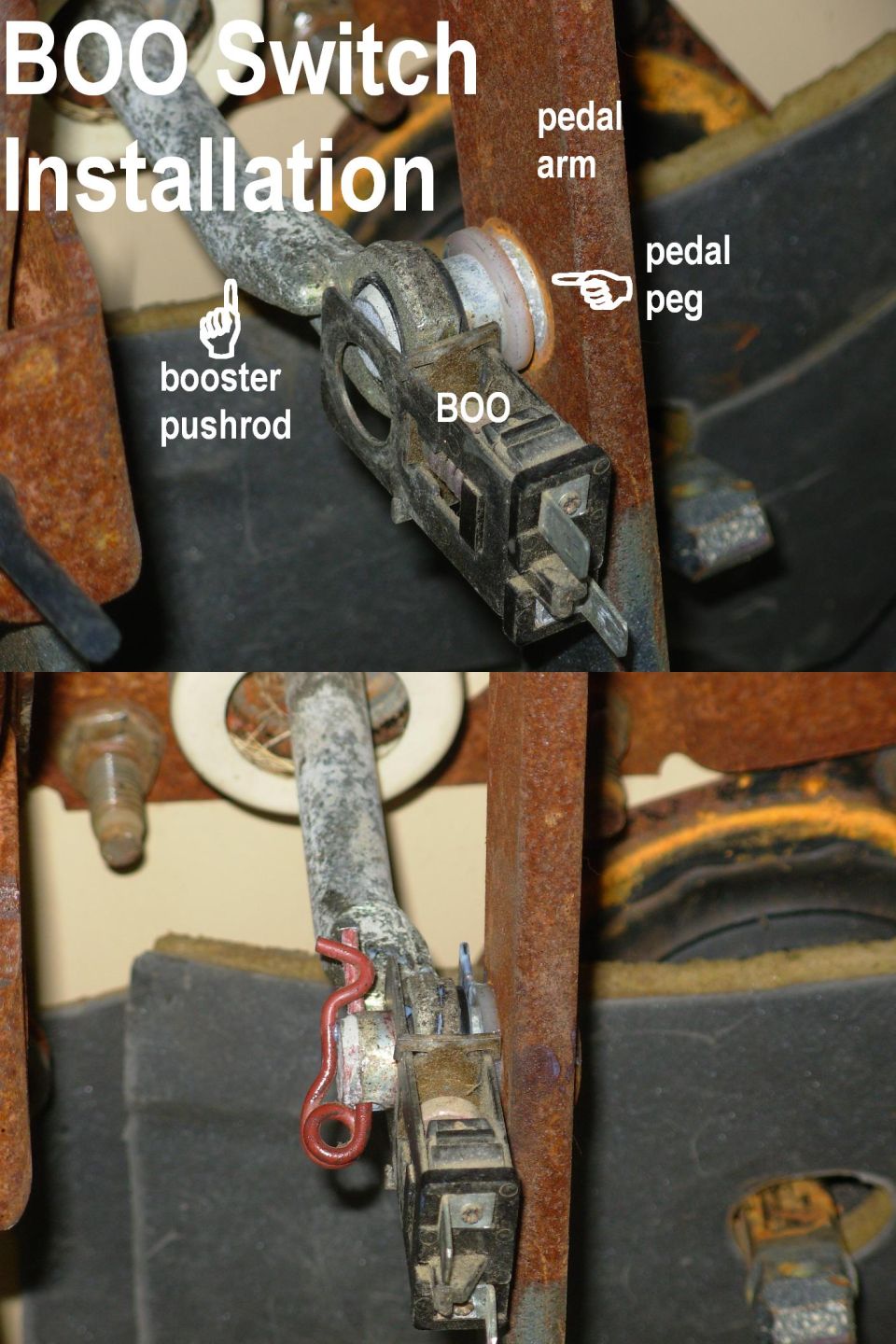

booins.jpg Brake On-Off Switch (E9LY-13480-A) [url=http://www.amazon.com/dp/B0011DY1JG/]Motorcraft SW2237[/url] Installation

1) Install the ring bushing on the pedal peg against the arm.
2) Install the strawhat bushing in the pushrod eye with the wide brim AWAY from the pedal arm, and hang them on the end of the peg
3) hook the BOO behind the pushrod eye, then slide it fully onto the peg, carrying the pushrod & strawhat with it
4) optionally, another ring bushing may be added, but it's not necessary
5) install the hairpin in the peg's hole
