What engine model is this Caterpillar generator set?

The nameplate lists Engine Model 3306.

What are the power ratings on this Caterpillar 3306 genset plate?

288 kVA prime and 230 kW with the STANDBY box checked, at 0.8 COS Ø (power factor), 60 Hertz, continuous, 3 phase.

What voltage and amperage does the plate show?

240 volts at 694 amps, with generator excitation of 38 volts at 7.1 amps.

What is the generator connection and frame according to the plate?

It is a 12-wire generator with WYE checked (Series marked X), 446 frame, running at 1800 REV/MIN.

What insulation class is listed?

Class H, with maximum temperature rise referenced to 40 °C ambient.

Home/ Registry/ Ford/ LTD Crown Victoria/ 1983-1991/ “351”/ Photo supermotors.net/registry/media/999744

Caterpillar 3306 Generator Set Data Plate - 288 kVA, 230 kW Standby, 240V Specs

Caterpillar generator set data plate listing kW, voltage and generator data

‹ ›

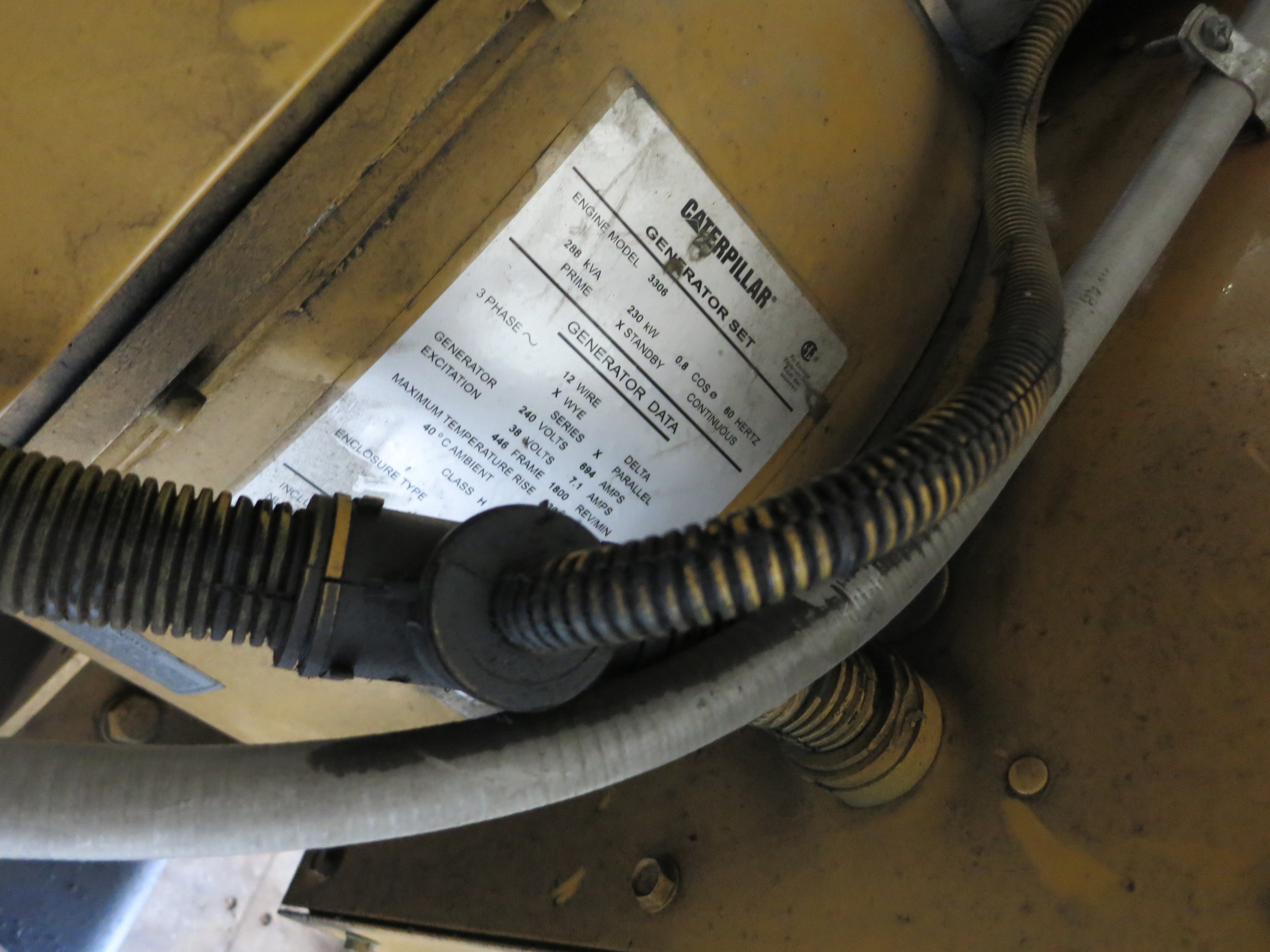

Caterpillar generator-set nameplate showing engine model, kW rating and generator data, partly obscured by flexible conduit.

AI caption October 2013 · Photo 3370 of 4215

This is a photograph of the data/specification plate on a Caterpillar generator set, not a Ford automotive document. The nameplate identifies the unit as a CATERPILLAR GENERATOR SET with engine model 3306. Ratings shown include 288 kVA prime, 230 kW (standby box checked), 0.8 power factor (COS Ø), 60 Hertz, continuous duty, 3-phase AC. The GENERATOR DATA section indicates a 12-wire machine with WYE connection checked (Delta/Parallel options unchecked, Series marked X), 240 volts at 694 amps output, generator excitation of 38 volts at 7.1 amps, a 446 frame, and 1800 RPM operation. Maximum temperature rise is stated relative to 40 °C ambient with Class H insulation. The lower portion of the plate (enclosure type and additional lines) is obscured by corrugated conduit and hoses crossing the label. From this plate a reader can determine the genset's electrical output ratings, connection configuration, frame size, speed, and insulation class. The photo was filed under a 1991 Ford LTD Crown Victoria gallery, but the document itself clearly pertains to Caterpillar generator equipment.
