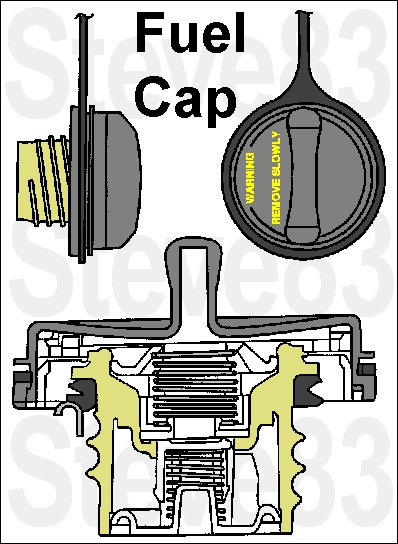

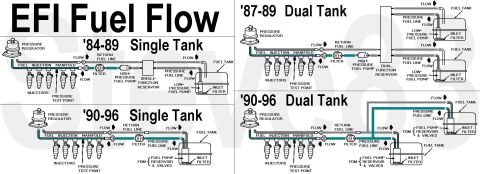

!['87-96 Fuel Cap w/tether [url=https://www.amazon.com/dp/B000O0G9DS]Ford F4TZ-9030-C[/url] ([url=http...](https://www.supermotors.net/getfile/1169365/thumbnail/fuelcap.jpg) Hits: 779 Size: 57.55 KB Posted: 5/22/22 '87-96 Fuel Cap w/tether [url=https://www.amazon.com/dp/B000O0G9DS]Ford F4TZ-9030-C[/url] ([url=http... | !['84-96 fullsize Ford truck EFI Fuel Flow
IF THE IMAGE IS TOO SMALL, click it.
[url=https://www.supe...](https://www.supermotors.net/getfile/950180/thumbnail/fuelflow.jpg) Hits: 26104 Size: 39.46 KB Posted: 10/14/12 '84-96 fullsize Ford truck EFI Fuel Flow
IF THE IMAGE IS TOO SMALL, click it.

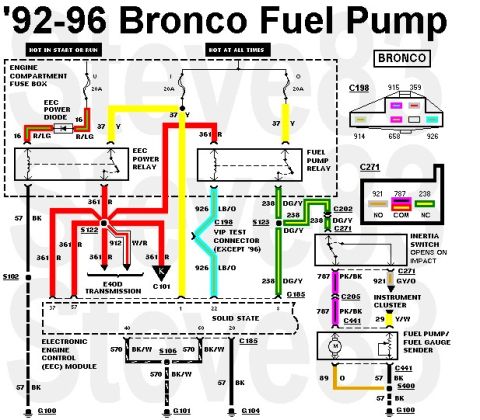

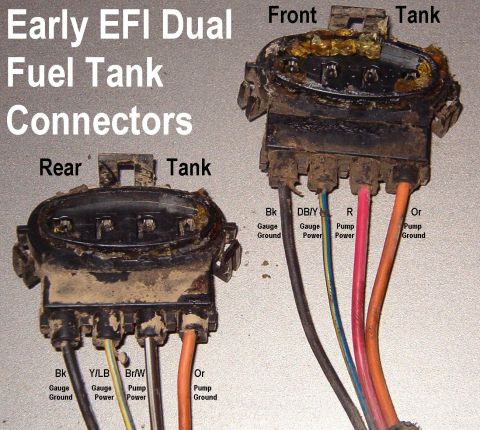

[url=https://www.supe... | !['92-96 Bronco Fuel Pump & Level Wiring
IF THE IMAGE IS TOO SMALL, click it.
Tank connectors & pinou...](https://www.supermotors.net/getfile/1172270/thumbnail/fueltankb.jpg) Hits: 176 Size: 80.09 KB Posted: 3/16/24 '92-96 Bronco Fuel Pump & Level Wiring
IF THE IMAGE IS TOO SMALL, click it.

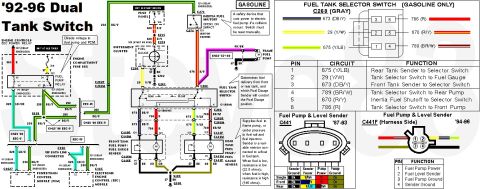

Tank connectors & pinou... | !['92-96 (&'97 >8500GVWR) Gasoline F-series Dual Tank Switch
IF THE IMAGE IS TOO SMALL, click it.
'92-...](https://www.supermotors.net/getfile/1126824/thumbnail/fueltanksfgas.jpg) Hits: 8229 Size: 49.54 KB Posted: 1/13/18 '92-96 (&'97 >8500GVWR) Gasoline F-series Dual Tank Switch
IF THE IMAGE IS TOO SMALL, click it.

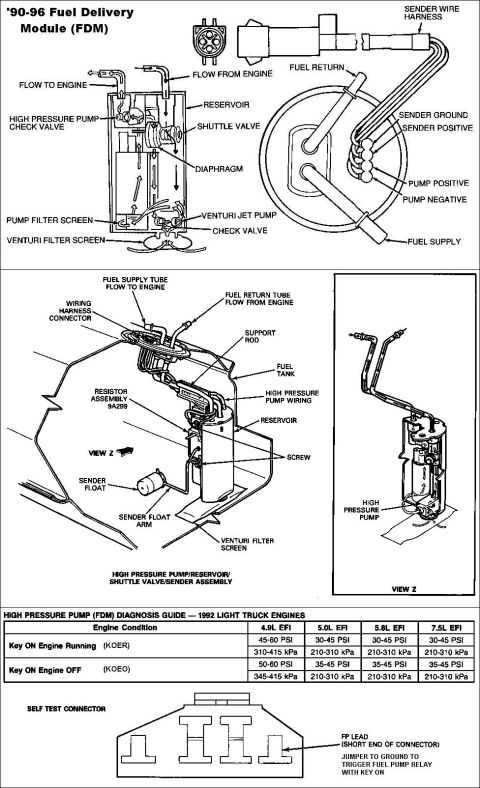

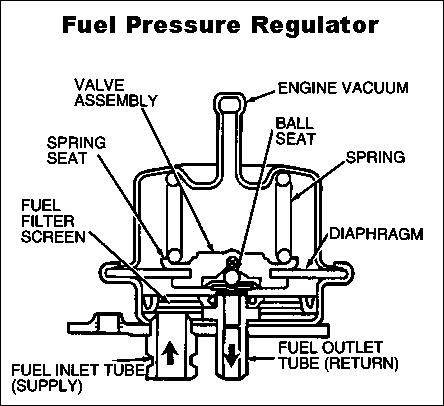

'92-... | ![FDM & Fuel Pressure
IF THE IMAGE IS TOO SMALL, click it.
Maximum fuel pressure is obtainable at WOT ...](https://www.supermotors.net/getfile/283459/thumbnail/fdm.jpg) Hits: 58448 Size: 54.36 KB Posted: 1/20/06 FDM & Fuel Pressure
IF THE IMAGE IS TOO SMALL, click it.
Maximum fuel pressure is obtainable at WOT ... |

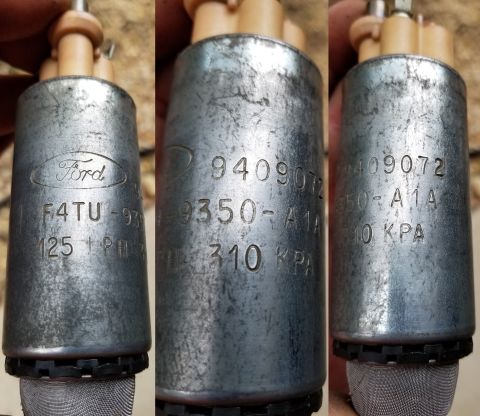

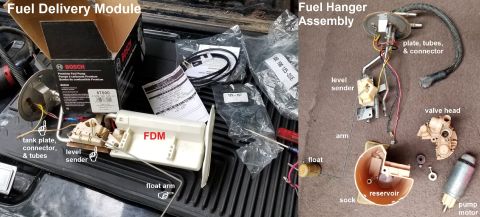

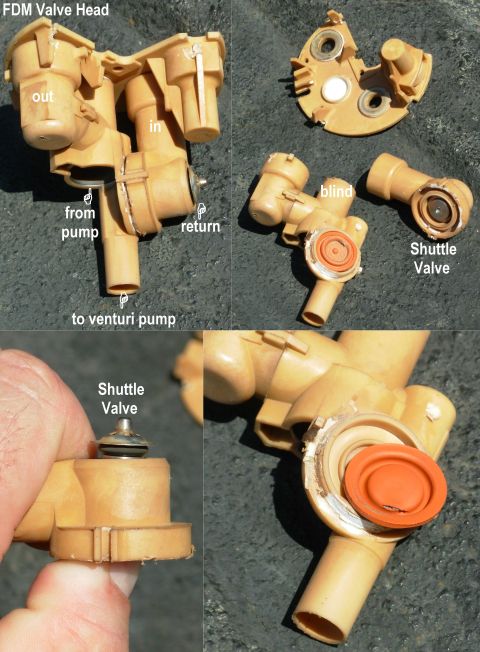

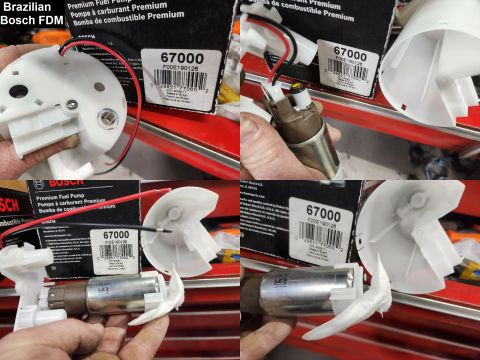

![Factory fuel pump motor from a '95 5.8L Bronco](https://www.supermotors.net/getfile/1160837/thumbnail/20181010_164026.jpg) Hits: 1142 Size: 96.15 KB Posted: 7/14/20 Factory fuel pump motor from a '95 5.8L Bronco | ![This is the valve head from the Fuel Delivery Module (FDM) used in '90-04 F-series & Broncos (and so...](https://www.supermotors.net/getfile/879227/thumbnail/fdmvalve.jpg) Hits: 15495 Size: 69.08 KB Posted: 7/27/11 This is the valve head from the Fuel Delivery Module (FDM) used in '90-04 F-series & Broncos (and so... | ![Fuel Delivery Module
IF THE IMAGE IS TOO SMALL, click it.
The FDM is mounted to the tank plate (wit...](https://www.supermotors.net/getfile/1164710/thumbnail/fdms.jpg) Hits: 2284 Size: 60.69 KB Posted: 4/4/21 Fuel Delivery Module
IF THE IMAGE IS TOO SMALL, click it.

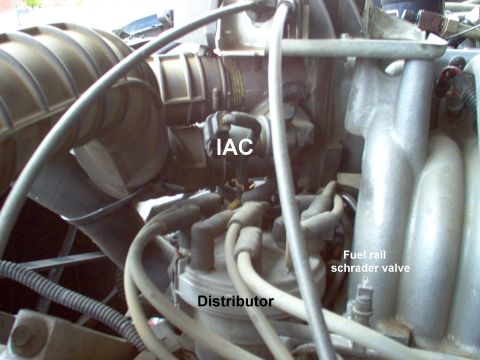

The FDM is mounted to the tank plate (wit... | ![V8 Fuel Pressure Port, Distributor, IAC, & Vacuum Tree (top R)
[url=http://www.supermotors.net/regi...](https://www.supermotors.net/getfile/148980/thumbnail/5.8l-dist.jpg) Hits: 15447 Size: 49.83 KB Posted: 10/2/04 V8 Fuel Pressure Port, Distributor, IAC, & Vacuum Tree (top R)
[url=http://www.supermotors.net/regi... | ![Fuel Pressure Gauge

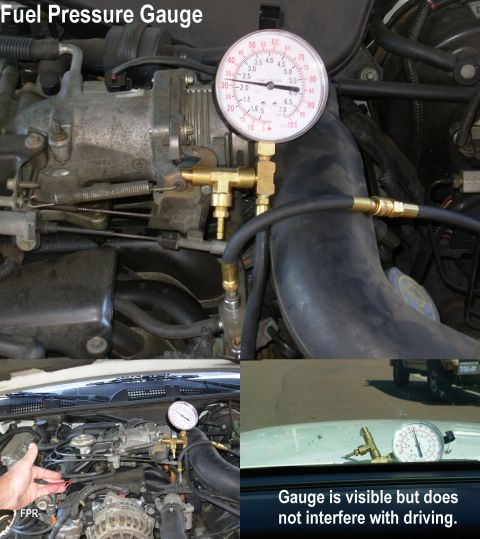

A Sears/Craftsman gauge costs $35-55, but many parts stores will loan/rent tools...](https://www.supermotors.net/getfile/825934/thumbnail/fuelpressuregauge.jpg) Hits: 27317 Size: 73.98 KB Posted: 9/18/10 Fuel Pressure Gauge
A Sears/Craftsman gauge costs $35-55, but many parts stores will loan/rent tools... |

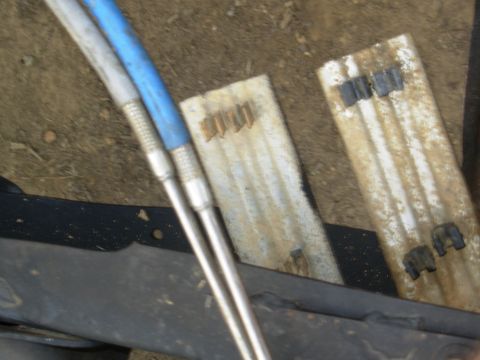

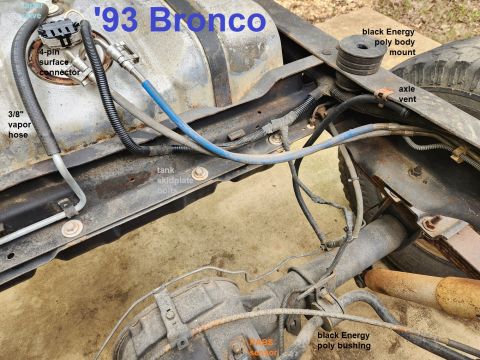

![The '93 frame-to-engine fuel line guide (under the driver's feet) uses riveted spring steel clips. ...](https://www.supermotors.net/getfile/933586/thumbnail/fuellinetrays.jpg) Hits: 3515 Size: 80.58 KB Posted: 7/22/12 The '93 frame-to-engine fuel line guide (under the driver's feet) uses riveted spring steel clips. ... | ![Tank Delete
IF THE IMAGE IS TOO SMALL, click it.

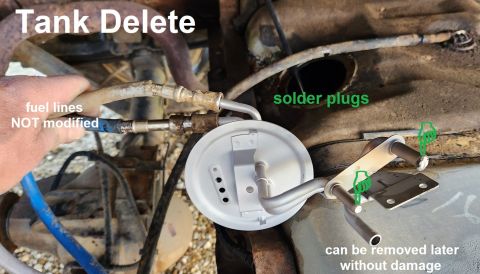

To temporarily (or indefinitely) run any '90-96...](https://www.supermotors.net/getfile/1172040/thumbnail/fuellineblockoff5.jpg) Hits: 88 Size: 63.81 KB Posted: 2/18/24 Tank Delete
IF THE IMAGE IS TOO SMALL, click it.

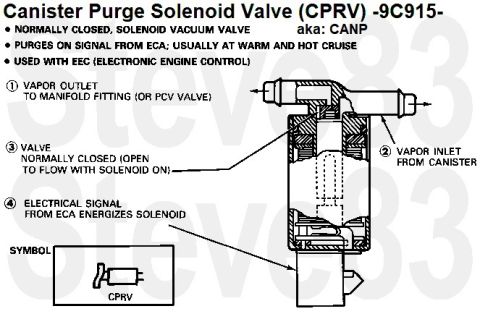

To temporarily (or indefinitely) run any '90-96... | ![Canister Purge Valve (CANP/CPRV)
IF THE IMAGE IS TOO SMALL, click it.
The port farther from the conn...](https://www.supermotors.net/getfile/1159308/thumbnail/canp.jpg) Hits: 2055 Size: 53.34 KB Posted: 5/6/20 Canister Purge Valve (CANP/CPRV)
IF THE IMAGE IS TOO SMALL, click it.

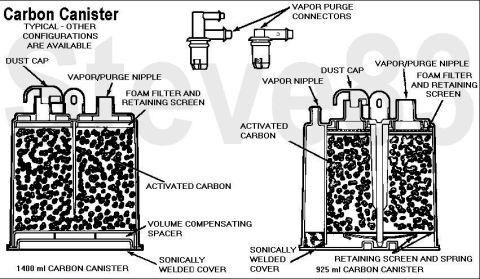

The port farther from the conn... | ![Carbon Canister (aka Charcoal Canister, Vapor Canister)
[url=http://www.amazon.com/dp/B000C5DI20/]Mo...](https://www.supermotors.net/getfile/529006/thumbnail/carbon-canister.jpg) Hits: 23953 Size: 60.54 KB Posted: 6/10/07 Carbon Canister (aka Charcoal Canister, Vapor Canister)

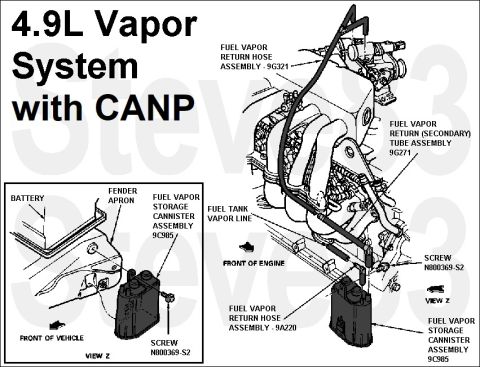

[url=http://www.amazon.com/dp/B000C5DI20/]Mo... | !['87-95 4.9L MAP Vapor System with CANP
IF THE IMAGE IS TOO SMALL, click it.
The Evaporative Emissio...](https://www.supermotors.net/getfile/1169366/thumbnail/vapor49l92.jpg) Hits: 1022 Size: 70.2 KB Posted: 5/22/22 '87-95 4.9L MAP Vapor System with CANP
IF THE IMAGE IS TOO SMALL, click it.
The Evaporative Emissio... |

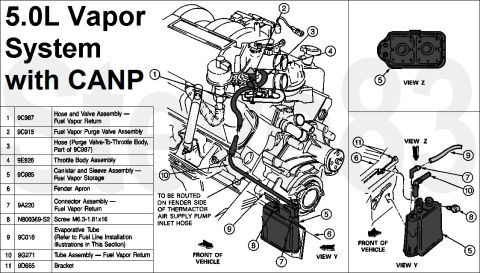

!['87-95 5.0L MAP Vapor System with CANP
IF THE IMAGE IS TOO SMALL, click it.
The Evaporative Emissio...](https://www.supermotors.net/getfile/1169367/thumbnail/vapor50l92.jpg) Hits: 855 Size: 67.39 KB Posted: 5/22/22 '87-95 5.0L MAP Vapor System with CANP
IF THE IMAGE IS TOO SMALL, click it.

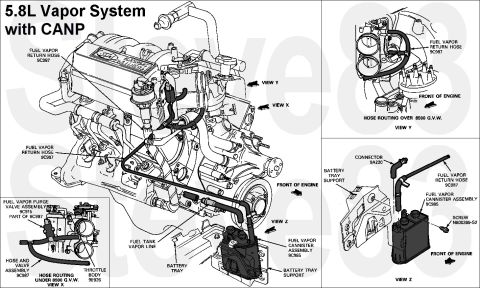

The Evaporative Emissio... | !['87-95 5.8L MAP Vapor System with CANP
IF THE IMAGE IS TOO SMALL, click it.
The Evaporative Emissio...](https://www.supermotors.net/getfile/1169368/thumbnail/vapor58l92.jpg) Hits: 1132 Size: 67.16 KB Posted: 5/22/22 '87-95 5.8L MAP Vapor System with CANP
IF THE IMAGE IS TOO SMALL, click it.

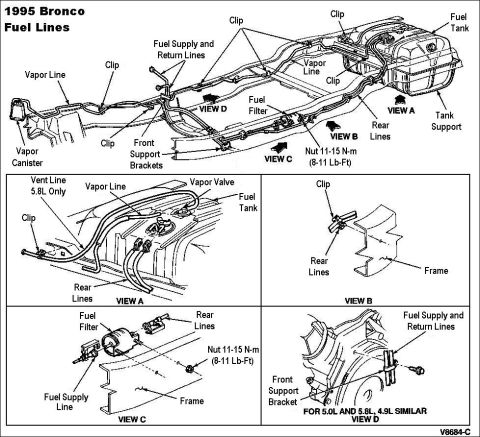

The Evaporative Emissio... | ![Fuel Lines 95 Bronco (all EFI similar)
IF THE IMAGE IS TOO SMALL, click it.
Supply (pressure) lines ...](https://www.supermotors.net/getfile/244698/thumbnail/fuel-lines-95-bronco.jpg) Hits: 28224 Size: 83.55 KB Posted: 9/14/05 Fuel Lines 95 Bronco (all EFI similar)
IF THE IMAGE IS TOO SMALL, click it.

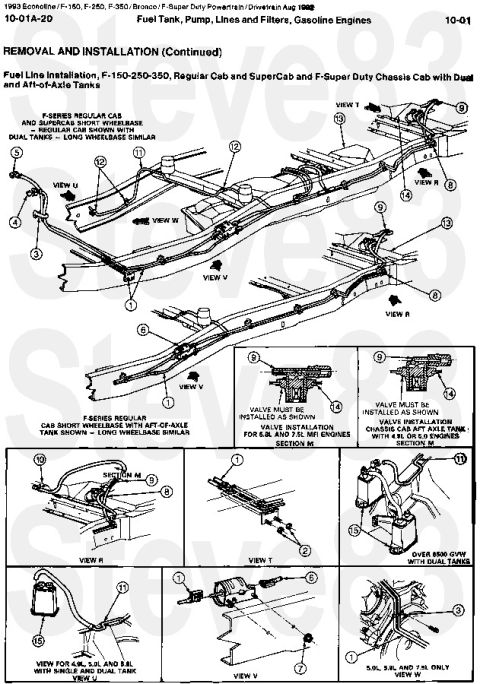

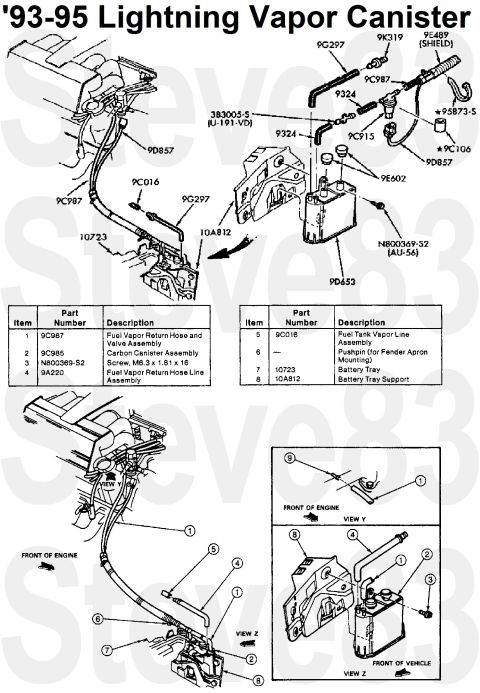

Supply (pressure) lines ... | ![93 F-series Fuel Lines](https://www.supermotors.net/getfile/1057396/thumbnail/fuellines93f.jpg) Hits: 3045 Size: 78.31 KB Posted: 5/10/15 93 F-series Fuel Lines | !['93-95 Lightning Evaporative Emissions](https://www.supermotors.net/getfile/1164381/thumbnail/evaps_l.jpg) Hits: 662 Size: 64.88 KB Posted: 3/13/21 '93-95 Lightning Evaporative Emissions |

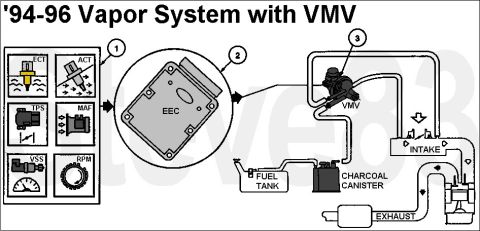

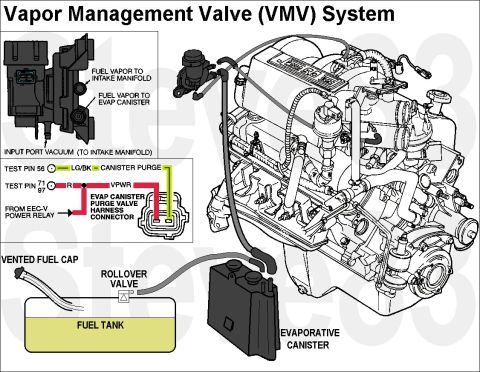

![Vapor Management Valve (VMV) replaces CANP on some '94-95 & all '96 trucks under 8500GVWR
IF THE IMA...](https://www.supermotors.net/getfile/1172045/thumbnail/vapor94vmv.jpg) Hits: 71 Size: 41.92 KB Posted: 2/18/24 Vapor Management Valve (VMV) replaces CANP on some '94-95 & all '96 trucks under 8500GVWR

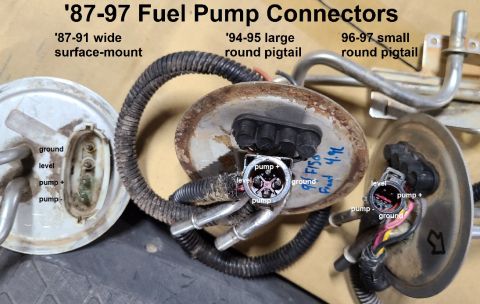

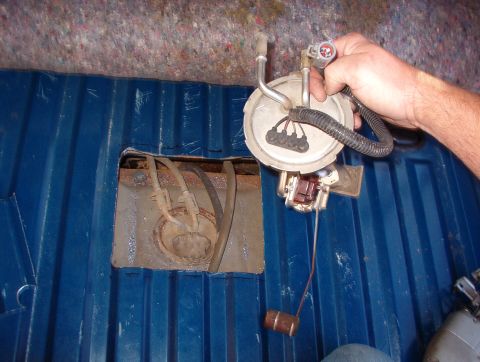

IF THE IMA... | ![V8 [url=https://www.amazon.com/dp/B000C5BLCY]Vapor Management Valve (VMV, Ford F5TZ9C915A, Motorcraf...](https://www.supermotors.net/getfile/1172046/thumbnail/vmvsys.jpg) Hits: 112 Size: 85.02 KB Posted: 2/18/24 V8 [url=https://www.amazon.com/dp/B000C5BLCY]Vapor Management Valve (VMV, Ford F5TZ9C915A, Motorcraf... | ![The larger surface-mounted C441 (WPT454) was used until '93; in '94, it switched to the smaller roun...](https://www.supermotors.net/getfile/766463/thumbnail/fuelpumpconnectors.jpg) Hits: 10920 Size: 66.51 KB Posted: 11/6/09 The larger surface-mounted C441 (WPT454) was used until '93; in '94, it switched to the smaller roun... | ![Fuel Pump Connector comparison
[url=https://www.supermotors.net/registry/media/1126824][img]https:/...](https://www.supermotors.net/getfile/1164369/thumbnail/pumpconnectors8797.jpg) Hits: 1245 Size: 66.84 KB Posted: 3/13/21 Fuel Pump Connector comparison
[url=https://www.supermotors.net/registry/media/1126824][img]https:/... | ![Early EFI Fuel Pump Connectors C441 (WPT-454) used through '93. '94-96 use the same wire colors, bu...](https://www.supermotors.net/getfile/744424/thumbnail/fpconnectors.jpg) Hits: 17571 Size: 103.38 KB Posted: 7/19/09 Early EFI Fuel Pump Connectors C441 (WPT-454) used through '93. '94-96 use the same wire colors, bu... |

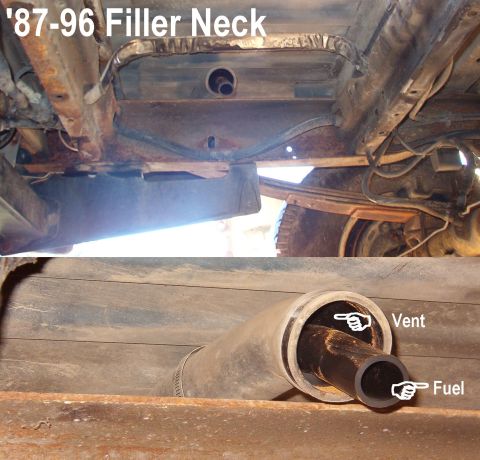

!['87-96 Filler Neck
See also:

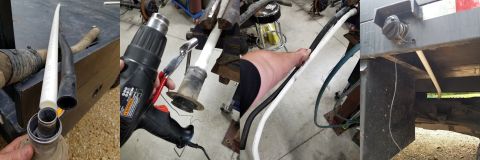

[url=https://www.supermotors.net/registry/media/1150549][img]https://w...](https://www.supermotors.net/getfile/767952/thumbnail/fillerneck93.jpg) Hits: 8656 Size: 75.44 KB Posted: 11/14/09 '87-96 Filler Neck
See also:
[url=https://www.supermotors.net/registry/media/1150549][img]https://w... | ![The early-style fuel filler neck (EOTZ-9034-A) has a thin flexible plastic tube slid into a steel gu...](https://www.supermotors.net/getfile/514258/thumbnail/fillerneck-83.jpg) Hits: 8861 Size: 72.65 KB Posted: 5/7/07 The early-style fuel filler neck (EOTZ-9034-A) has a thin flexible plastic tube slid into a steel gu... | ![Fuel Filler Necks

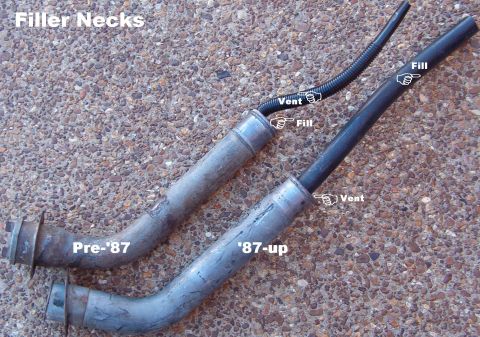

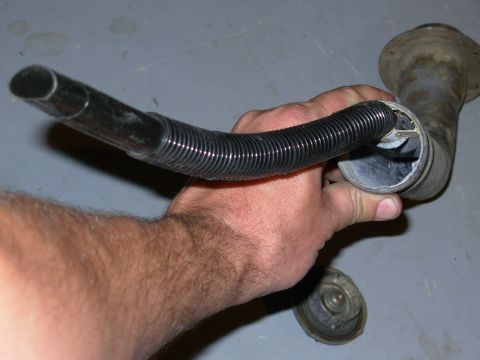

Early trucks use a small corrugated plastic vent tube tucked into the top of the ...](https://www.supermotors.net/getfile/285175/thumbnail/fillernecks.jpg) Hits: 13867 Size: 93.18 KB Posted: 1/25/06 Fuel Filler Necks
Early trucks use a small corrugated plastic vent tube tucked into the top of the ... | ![SOLD Fuel Filler Neck from '95 Bronco

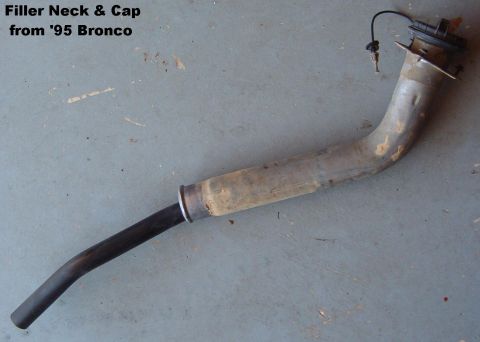

Fits all '80-96 fleetside aft-axle tank. Includes original m...](https://www.supermotors.net/getfile/517009/thumbnail/fuelfiller95bronco.jpg) Hits: 4475 Size: 33.49 KB Posted: 5/17/07 SOLD Fuel Filler Neck from '95 Bronco
Fits all '80-96 fleetside aft-axle tank. Includes original m... | ![Filler Neck Comparison

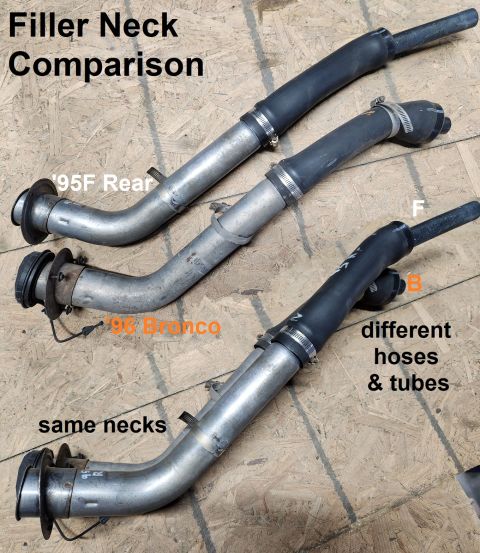

IF THE IMAGE IS TOO SMALL, click it.
The steel is the same, but the rubbe...](https://www.supermotors.net/getfile/1172038/thumbnail/fillersrrfbr.jpg) Hits: 85 Size: 99.53 KB Posted: 2/18/24 Filler Neck Comparison
IF THE IMAGE IS TOO SMALL, click it.
The steel is the same, but the rubbe... |

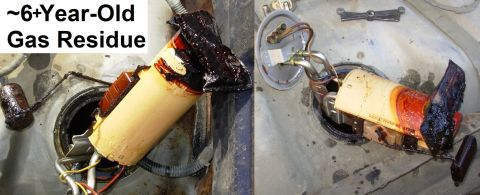

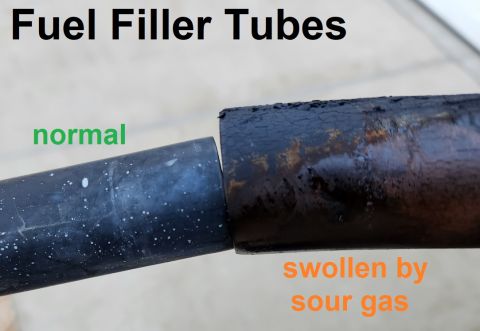

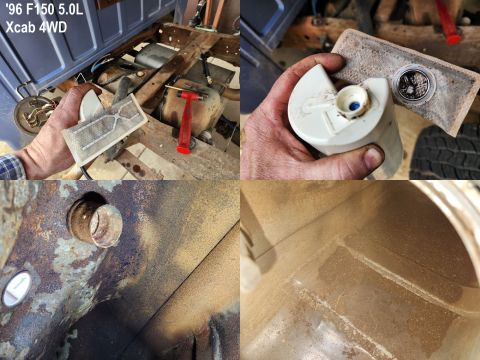

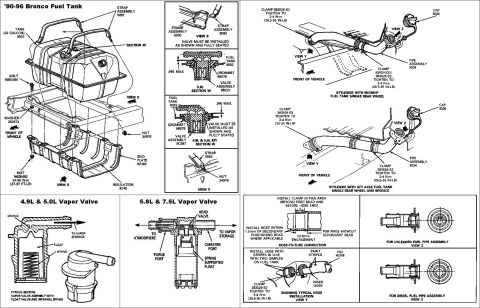

![When a truck (or even just a tank) is abandoned with gas in it, the souring fuel (especially with et...](https://www.supermotors.net/getfile/1172039/thumbnail/fillerswollen.jpg) Hits: 85 Size: 45.85 KB Posted: 2/18/24 When a truck (or even just a tank) is abandoned with gas in it, the souring fuel (especially with et... | ![This truck's tanks were slow to fill, so I replaced the soft inner fill hoses with common 1" PE...](https://www.supermotors.net/getfile/1150549/thumbnail/fillerrepair97f350.jpg) Hits: 1816 Size: 42.36 KB Posted: 6/20/19 This truck's tanks were slow to fill, so I replaced the soft inner fill hoses with common 1" PE... | ![Fuel Tank mounting & rollover valves
IF THE IMAGE IS TOO SMALL, click it.
Despite the details shown...](https://www.supermotors.net/getfile/283481/thumbnail/fuel-tank-bronco.jpg) Hits: 24916 Size: 60.15 KB Posted: 1/20/06 Fuel Tank mounting & rollover valves
IF THE IMAGE IS TOO SMALL, click it.

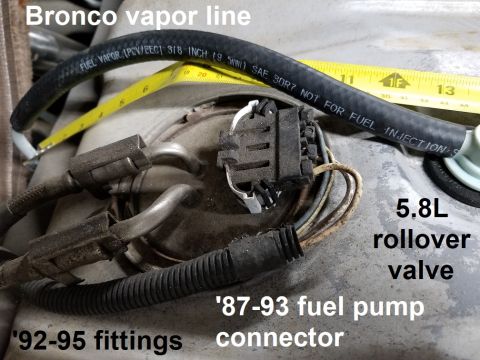

Despite the details shown... | ![Bronco Tank Vapor Hose
It takes slightly more than a foot to connect the steel vapor line on the fr...](https://www.supermotors.net/getfile/1146567/thumbnail/fuelvaporhose.jpg) Hits: 1301 Size: 78.48 KB Posted: 3/15/19 Bronco Tank Vapor Hose
It takes slightly more than a foot to connect the steel vapor line on the fr... | ![Vapor Valves

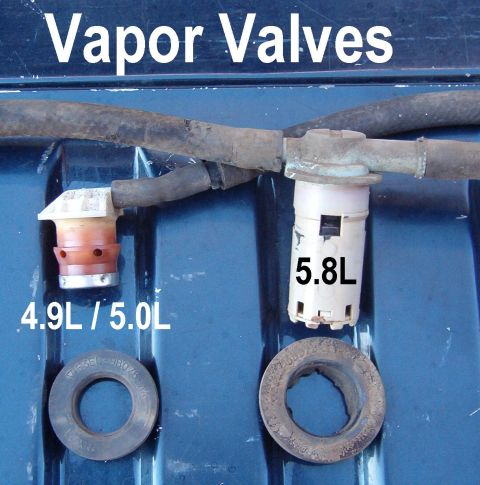

The smaller valve ([url=https://www.amazon.com/dp/B008D33ZF8/]E7DZ-9B593-A[/url]) uses...](https://www.supermotors.net/getfile/767956/thumbnail/vaporvalves.jpg) Hits: 10874 Size: 76.45 KB Posted: 11/14/09 Vapor Valves
The smaller valve ([url=https://www.amazon.com/dp/B008D33ZF8/]E7DZ-9B593-A[/url]) uses... |

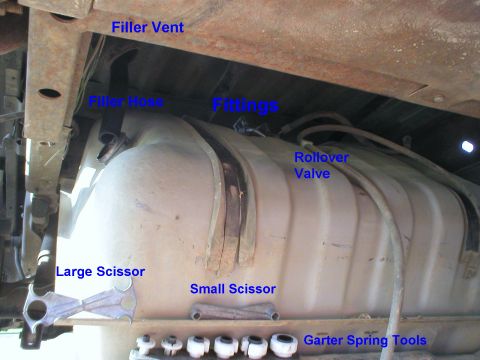

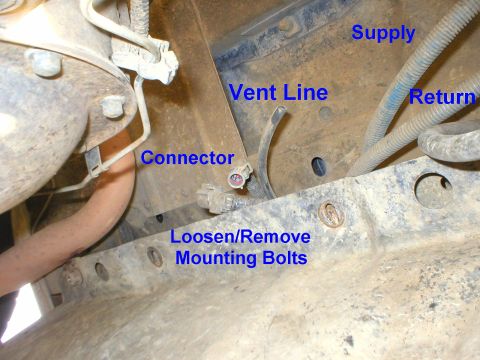

![To remove the tank, begin by disconnecting the wiring and vent line, & removing most of the skid pla...](https://www.supermotors.net/getfile/72001/thumbnail/disconnect.jpg) Hits: 9012 Size: 98.87 KB Posted: 7/12/03 To remove the tank, begin by disconnecting the wiring and vent line, & removing most of the skid pla... | ![Filler Neck

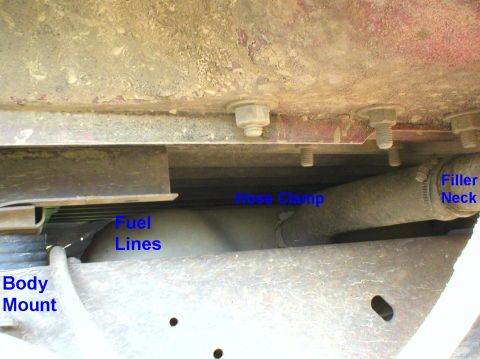

Loosen the hose clamp at the tank & pull the outer filler neck off the tank. There is a...](https://www.supermotors.net/getfile/72002/thumbnail/filler.jpg) Hits: 8083 Size: 84.1 KB Posted: 7/12/03 Filler Neck
Loosen the hose clamp at the tank & pull the outer filler neck off the tank. There is a... | ![Fittings
With the tank lowered, the fuel lines can be disconnected using the appropriate tool. I p...](https://www.supermotors.net/getfile/72003/thumbnail/fittings.jpg) Hits: 9135 Size: 78.22 KB Posted: 7/12/03 Fittings
With the tank lowered, the fuel lines can be disconnected using the appropriate tool. I p... | !['93 Bronco Tank Details
IF THE IMAGE IS TOO SMALL, click it.](https://www.supermotors.net/getfile/1172043/thumbnail/tankbltsaxlevent.jpg) Hits: 81 Size: 98.08 KB Posted: 2/18/24 '93 Bronco Tank Details

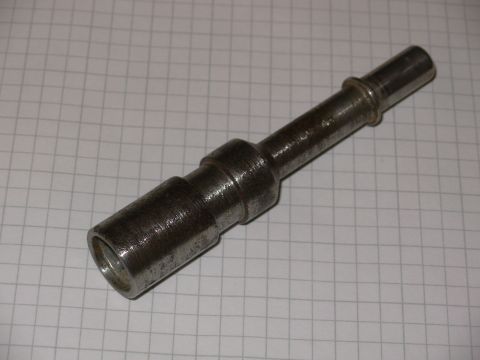

IF THE IMAGE IS TOO SMALL, click it. | ![Recall check valve (1L3Z-9J274-AA) prevents fuel transfer between tanks (until it wears out, like th...](https://www.supermotors.net/getfile/863556/thumbnail/fuelcheckvalve.jpg) Hits: 10436 Size: 64.72 KB Posted: 4/20/11 Recall check valve (1L3Z-9J274-AA) prevents fuel transfer between tanks (until it wears out, like th... |

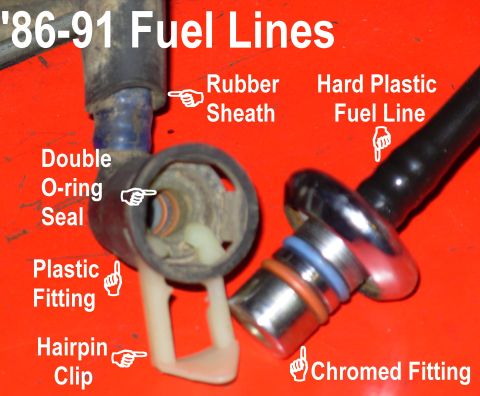

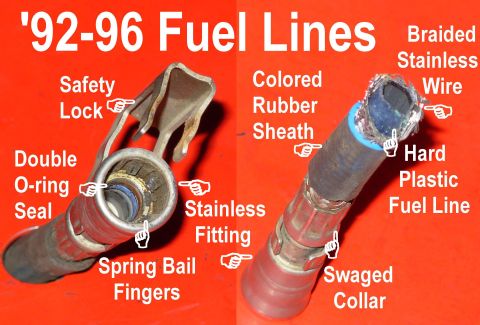

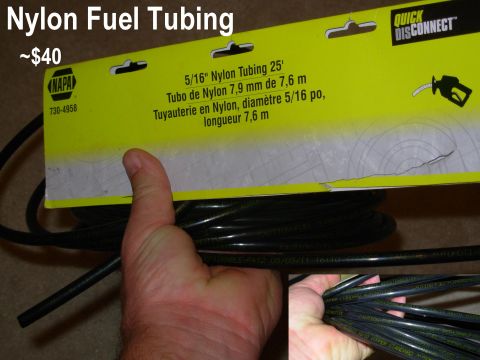

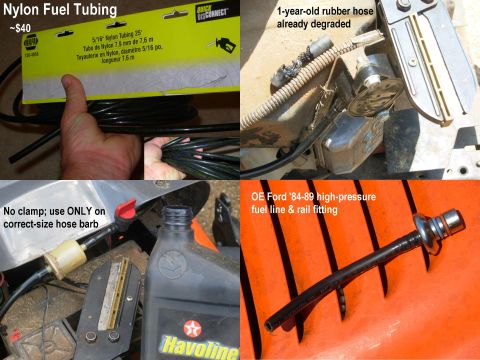

![Ford has been using hard nylon fuel tubing since the early 80s - I don't know why anyone is still us...](https://www.supermotors.net/getfile/927685/thumbnail/fueltubing.jpg) Hits: 6927 Size: 67.09 KB Posted: 6/15/12 Ford has been using hard nylon fuel tubing since the early 80s - I don't know why anyone is still us... | ![This is factory '85-91 fuel tubing, and it's what's inside the factory '92-up braided stainless. It...](https://www.supermotors.net/getfile/927262/thumbnail/fueltube.jpg) Hits: 3214 Size: 50.42 KB Posted: 6/11/12 This is factory '85-91 fuel tubing, and it's what's inside the factory '92-up braided stainless. It... | !['86-91 Fuel Lines
Garter Spring Safety Clips w/tethers
9mm E7AZ9A317A (E7AZ9A317AA)
12.5mm E7AZ9A31...](https://www.supermotors.net/getfile/919579/thumbnail/fuellines91.jpg) Hits: 7811 Size: 62.19 KB Posted: 5/1/12 '86-91 Fuel Lines
Garter Spring Safety Clips w/tethers
9mm E7AZ9A317A (E7AZ9A317AA)

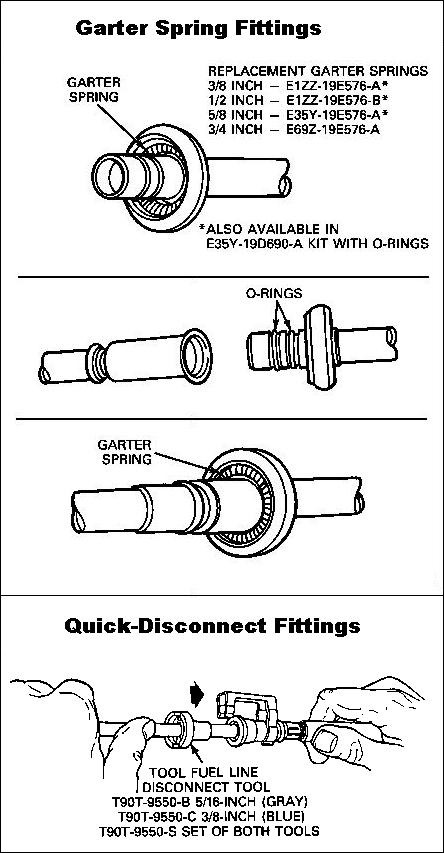

12.5mm E7AZ9A31... | ![Fuel Line Fittings
The large scissor tool works best on garter springs; the small scissor works best...](https://www.supermotors.net/getfile/283464/thumbnail/fuellinefittings.jpg) Hits: 10417 Size: 39.56 KB Posted: 1/20/06 Fuel Line Fittings
The large scissor tool works best on garter springs; the small scissor works best... | !['92-96 Fuel Lines (gas)
[url=http://www.supermotors.net/registry/media/950180][img]http://www.super...](https://www.supermotors.net/getfile/919580/thumbnail/fuellines92.jpg) Hits: 7857 Size: 65.1 KB Posted: 5/1/12 '92-96 Fuel Lines (gas)
[url=http://www.supermotors.net/registry/media/950180][img]http://www.super... |

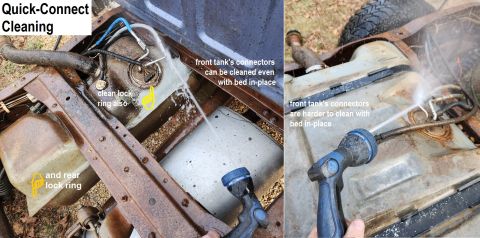

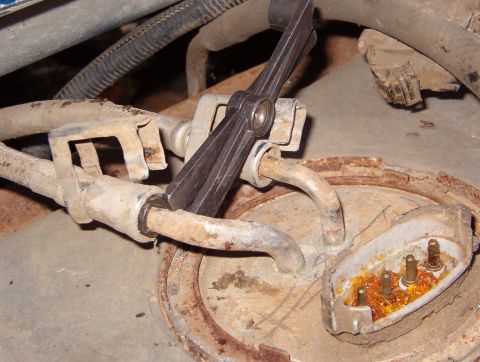

![Wash & dry the top of the pump plate before disconnecting the lines or loosening the lock ring. Bef...](https://www.supermotors.net/getfile/766464/thumbnail/fuelpumpfitting.jpg) Hits: 11550 Size: 74.28 KB Posted: 11/6/09 Wash & dry the top of the pump plate before disconnecting the lines or loosening the lock ring. Bef... | ![Quick-Disconnect Fittings
IF THE IMAGE IS TOO SMALL, click it.

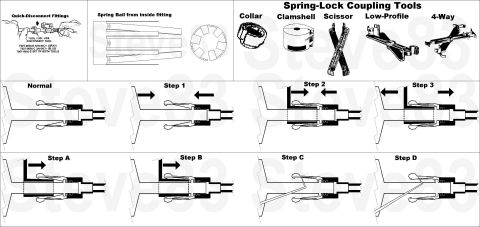

The fittings at the '92-up fuel filt...](https://www.supermotors.net/getfile/497461/thumbnail/fuelfittings.jpg) Hits: 30195 Size: 34.94 KB Posted: 3/20/07 Quick-Disconnect Fittings
IF THE IMAGE IS TOO SMALL, click it.

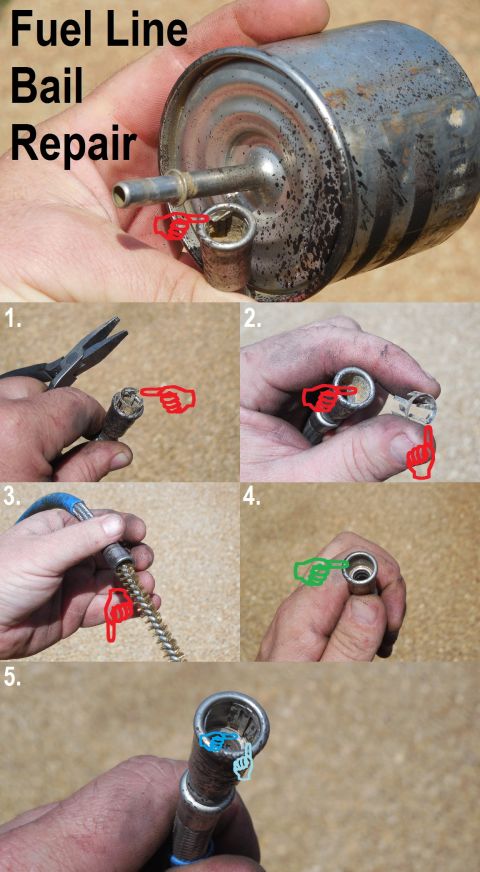

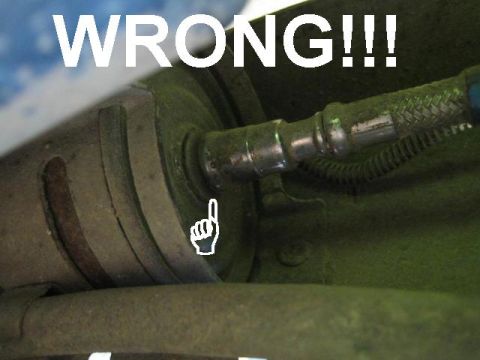

The fittings at the '92-up fuel filt... | ![This filter is for plastic hairpin fittings on older trucks - the correct filter for this truck has ...](https://www.supermotors.net/getfile/820656/thumbnail/fuelfilterwrong.jpg) Hits: 9980 Size: 35.73 KB Posted: 8/27/10 This filter is for plastic hairpin fittings on older trucks - the correct filter for this truck has ... | ![Fuel Bail Repair
This stainless fuel quick-connect was used on Ford trucks from '92 to at least '97...](https://www.supermotors.net/getfile/1035424/thumbnail/fuelbailrpr.jpg) Hits: 4933 Size: 104.56 KB Posted: 9/10/14 Fuel Bail Repair
This stainless fuel quick-connect was used on Ford trucks from '92 to at least '97... | ![Clean

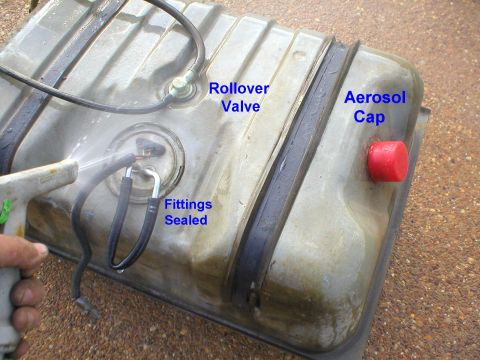

Before opening the tank, buy a NEW O-ring and wash any dirt away from the pump plate.](https://www.supermotors.net/getfile/72005/thumbnail/hose.jpg) Hits: 8536 Size: 99.17 KB Posted: 7/12/03 Clean
Before opening the tank, buy a NEW O-ring and wash any dirt away from the pump plate. |

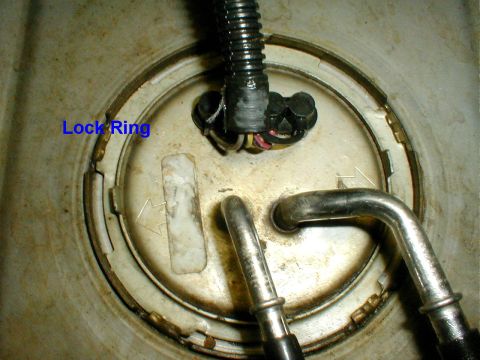

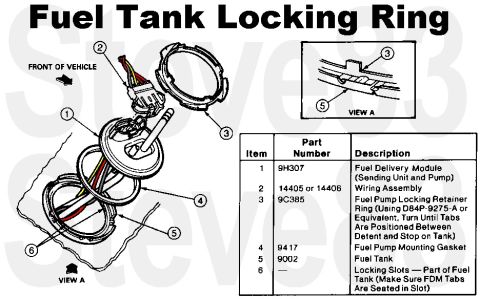

![Lock Ring
Cleaning also makes it much easier to turn the ring.](https://www.supermotors.net/getfile/72006/thumbnail/j-1.jpg) Hits: 7926 Size: 94.38 KB Posted: 7/12/03 Lock Ring
Cleaning also makes it much easier to turn the ring. | ![Use a non-sparking tool to turn the ring, like a brass drift & dead-blow hammer.
[url=https://www.s...](https://www.supermotors.net/getfile/1126308/thumbnail/fueltankring.jpg) Hits: 1460 Size: 56.46 KB Posted: 1/1/18 Use a non-sparking tool to turn the ring, like a brass drift & dead-blow hammer.

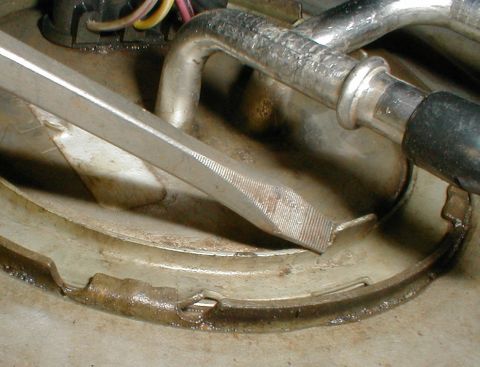

[url=https://www.s... | ![Unlock Ring
A non-sparking drift is preferred, but with some water still on the tank, the chance of ...](https://www.supermotors.net/getfile/72007/thumbnail/j-2.jpg) Hits: 7606 Size: 75.24 KB Posted: 7/12/03 Unlock Ring
A non-sparking drift is preferred, but with some water still on the tank, the chance of ... | ![FDM Removal

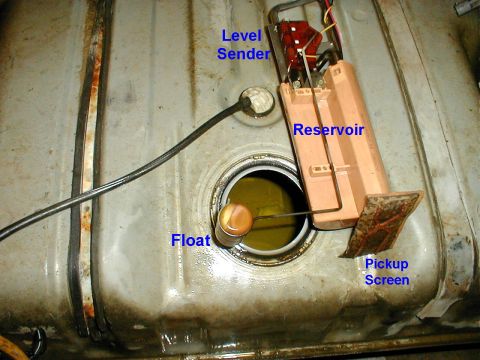

Once the lock ring is removed, break the O-ring seal & lift the FDM from the tank. The...](https://www.supermotors.net/getfile/72010/thumbnail/j-3.jpg) Hits: 9698 Size: 98.4 KB Posted: 7/12/03 FDM Removal
Once the lock ring is removed, break the O-ring seal & lift the FDM from the tank. The... | ![SOLD F150 Rear Tank ('90-91)
Actual size: 35x27x8" @ 31.5 lbs
I cleaned most of the goo off th...](https://www.supermotors.net/getfile/557909/thumbnail/tank90r.jpg) Hits: 3928 Size: 66.29 KB Posted: 8/27/07 SOLD F150 Rear Tank ('90-91)
Actual size: 35x27x8" @ 31.5 lbs
I cleaned most of the goo off th... |

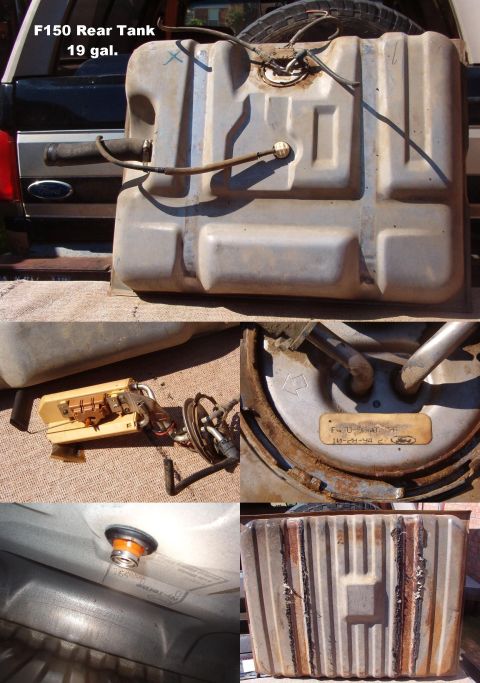

![SOLD Bronco Gas Tank

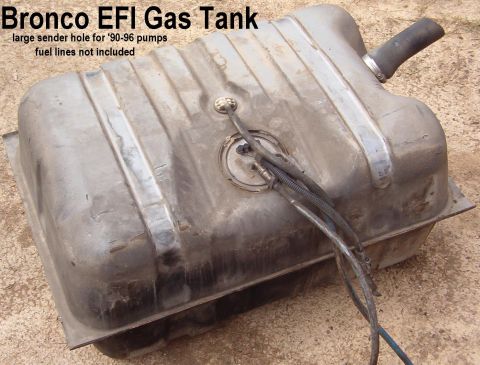

Large sender hole for '90-96 w/FDM, and some older. Suitable for upgrade fr...](https://www.supermotors.net/getfile/730908/thumbnail/gastank94b.jpg) Hits: 5140 Size: 70.17 KB Posted: 5/16/09 SOLD Bronco Gas Tank
Large sender hole for '90-96 w/FDM, and some older. Suitable for upgrade fr... | ![Reservoir Removal

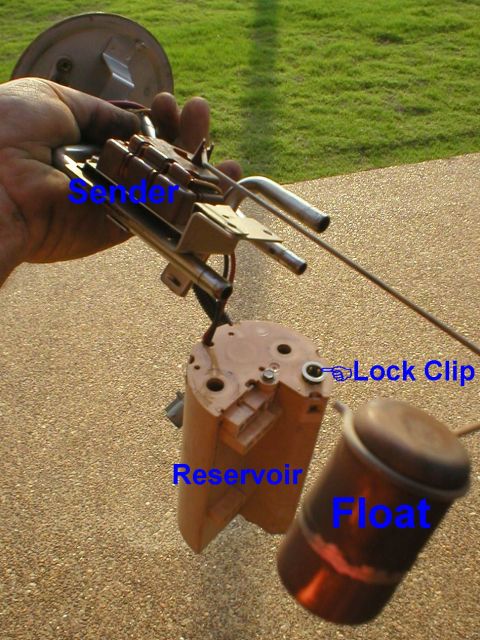

Remove the level sender upper mounting screw, press & hold the lock clip down, the...](https://www.supermotors.net/getfile/72015/thumbnail/module-1.jpg) Hits: 8066 Size: 110.09 KB Posted: 7/12/03 Reservoir Removal
Remove the level sender upper mounting screw, press & hold the lock clip down, the... | !['87-96 Bronco Level Sender engineering number

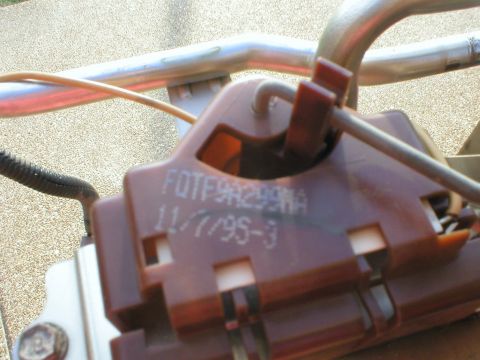

FOTF-9A299-AA
11/7/95-3
Fuel Tank Sending Unit
Servi...](https://www.supermotors.net/getfile/72016/thumbnail/module-2.jpg) Hits: 9286 Size: 80.96 KB Posted: 7/12/03 '87-96 Bronco Level Sender engineering number
FOTF-9A299-AA
11/7/95-3
Fuel Tank Sending Unit

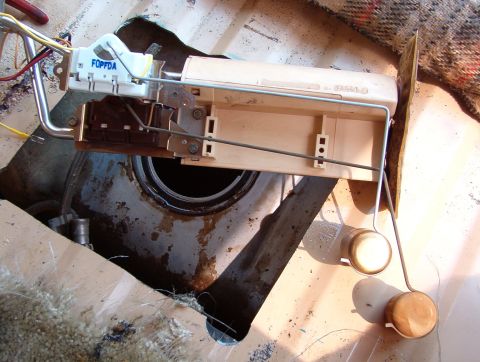

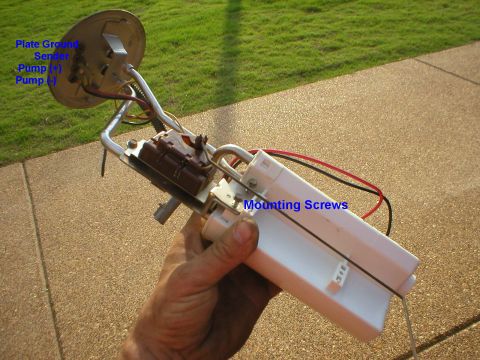

Servi... | ![The level sender merely screws to the side of the FDM & its wire plugs onto the tank plate. Before ...](https://www.supermotors.net/getfile/739645/thumbnail/fuellevelsenders.jpg) Hits: 6311 Size: 74.5 KB Posted: 6/25/09 The level sender merely screws to the side of the FDM & its wire plugs onto the tank plate. Before ... | ![FDM Wiring
To temporarily or permanently convert a '90-up 2-tank truck to a single tank, read thi...](https://www.supermotors.net/getfile/72017/thumbnail/module-3.jpg) Hits: 8818 Size: 109.94 KB Posted: 7/12/03 FDM Wiring
To temporarily or permanently convert a '90-up 2-tank truck to a single tank, read thi... |

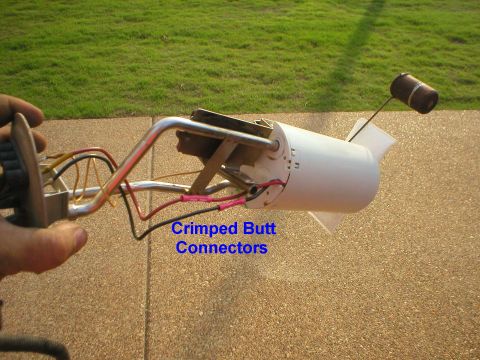

![Pump Connection
When replacing the FDM, the pump inside it, or just the reservoir head, the original...](https://www.supermotors.net/getfile/72018/thumbnail/module-4.jpg) Hits: 7626 Size: 111.8 KB Posted: 7/12/03 Pump Connection
When replacing the FDM, the pump inside it, or just the reservoir head, the original... | ![Skid Plate & Pads

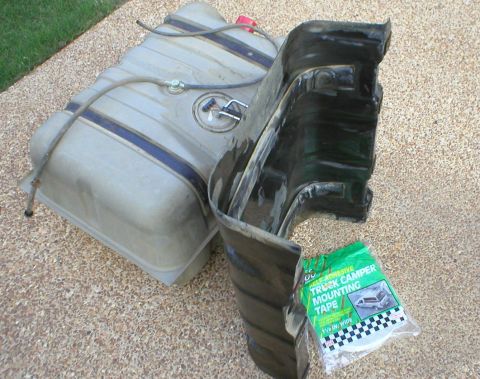

If the pads are beyond re-use, I recommend camper shell mounting tape because it'...](https://www.supermotors.net/getfile/72019/thumbnail/skid-plate.jpg) Hits: 8782 Size: 116.35 KB Posted: 7/12/03 Skid Plate & Pads
If the pads are beyond re-use, I recommend camper shell mounting tape because it'... | ![Tank Skidplate Dents

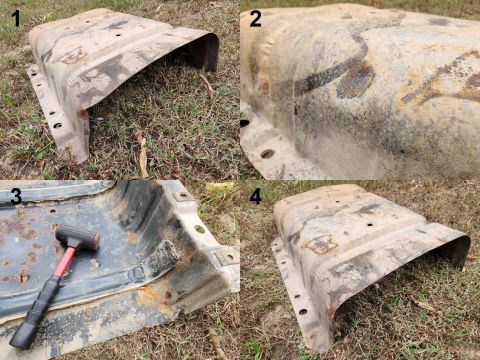

IF THE IMAGE IS TOO SMALL, click it.
The skidplate isn't very strong, so de...](https://www.supermotors.net/getfile/1172044/thumbnail/tankskidplate.jpg) Hits: 57 Size: 105.38 KB Posted: 2/18/24 Tank Skidplate Dents
IF THE IMAGE IS TOO SMALL, click it.

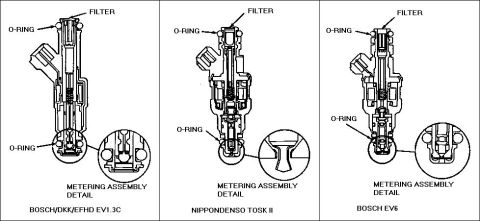

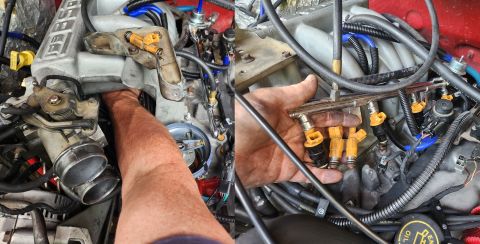

The skidplate isn't very strong, so de... | ![Fuel Injector Types
IF THE IMAGE IS TOO SMALL, click it.

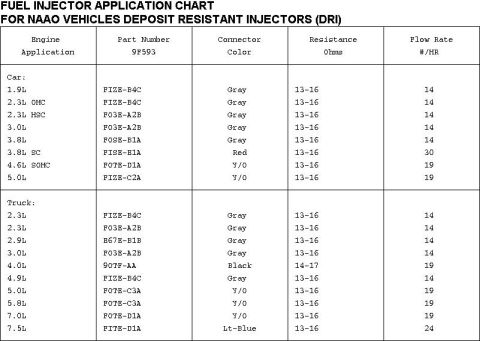

TSB 98-9-9 Fuel Injector Testing Informati...](https://www.supermotors.net/getfile/265821/thumbnail/fuelinjectorscutaway.jpg) Hits: 11309 Size: 33.07 KB Posted: 11/19/05 Fuel Injector Types
IF THE IMAGE IS TOO SMALL, click it.
TSB 98-9-9 Fuel Injector Testing Informati... | ![Fuel Injector PNs & Specs
IF THE IMAGE IS TOO SMALL, click it.
See also:
[url=https://www.supermoto...](https://www.supermotors.net/getfile/258009/thumbnail/fuel-injector-specs.jpg) Hits: 8690 Size: 40.7 KB Posted: 10/26/05 Fuel Injector PNs & Specs
IF THE IMAGE IS TOO SMALL, click it.
See also:
[url=https://www.supermoto... |

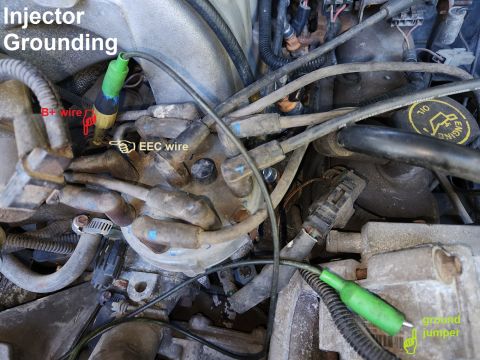

![Stuck Injectors can be freed by simply grounding the EEC wire (NOT the red wire) while the key is in...](https://www.supermotors.net/getfile/1172061/thumbnail/injectorgrounding.jpg) Hits: 126 Size: 87.93 KB Posted: 2/18/24 Stuck Injectors can be freed by simply grounding the EEC wire (NOT the red wire) while the key is in... | ![The fuel pressure regulator (Motorcraft '93-95 Lightning CM4764; '88-95 5.8L [url=http://www.amazon...](https://www.supermotors.net/getfile/283795/thumbnail/fpr.jpg) Hits: 24302 Size: 41.58 KB Posted: 1/22/06 The fuel pressure regulator (Motorcraft '93-95 Lightning CM4764; '88-95 5.8L [url=http://www.amazon... | ![Fuel Pump Warning Tag
IF THE IMAGE IS TOO SMALL, click it.

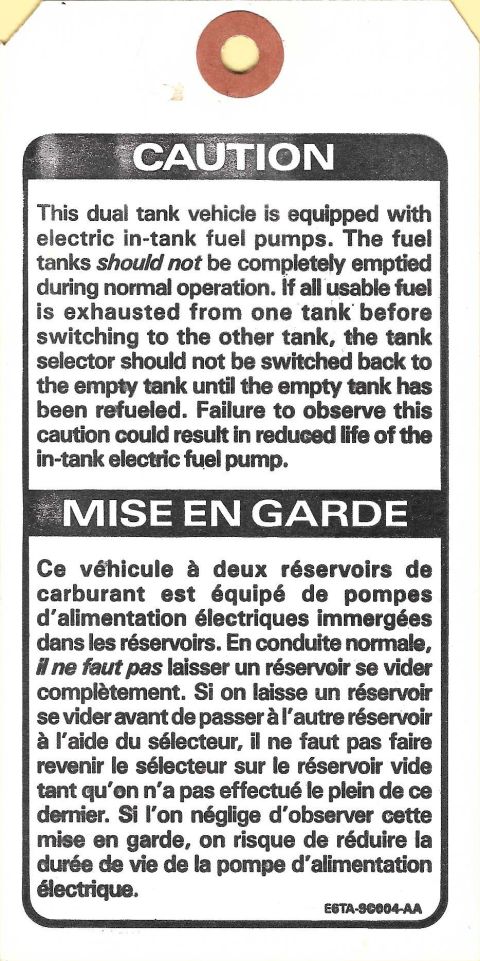

This was hung in new trucks to inform ow...](https://www.supermotors.net/getfile/1170512/thumbnail/tagfuelpumpwarng.jpg) Hits: 310 Size: 59.29 KB Posted: 9/1/22 Fuel Pump Warning Tag
IF THE IMAGE IS TOO SMALL, click it.

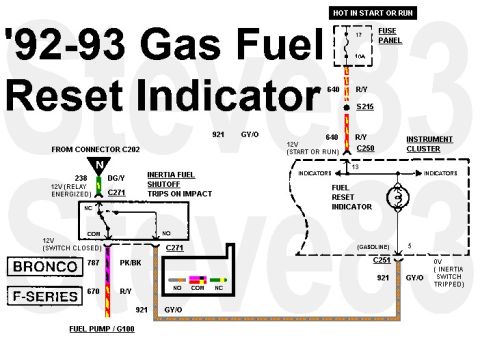

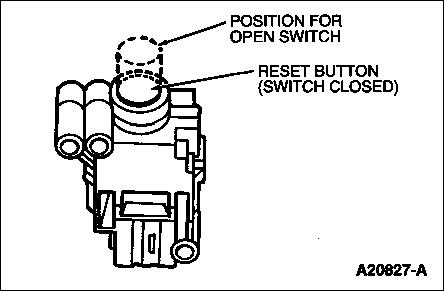

This was hung in new trucks to inform ow... | ![Inertia Switch old style
[url=https://www.supermotors.net/registry/media/862997][img]https://www.su...](https://www.supermotors.net/getfile/178339/thumbnail/inertia-switch-1.jpg) Hits: 9737 Size: 39.51 KB Posted: 2/17/05 Inertia Switch old style
[url=https://www.supermotors.net/registry/media/862997][img]https://www.su... | ![Inertia Switches

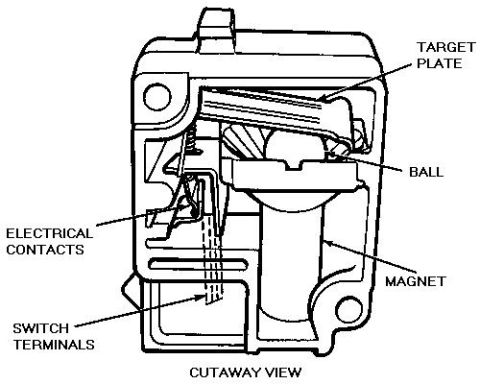

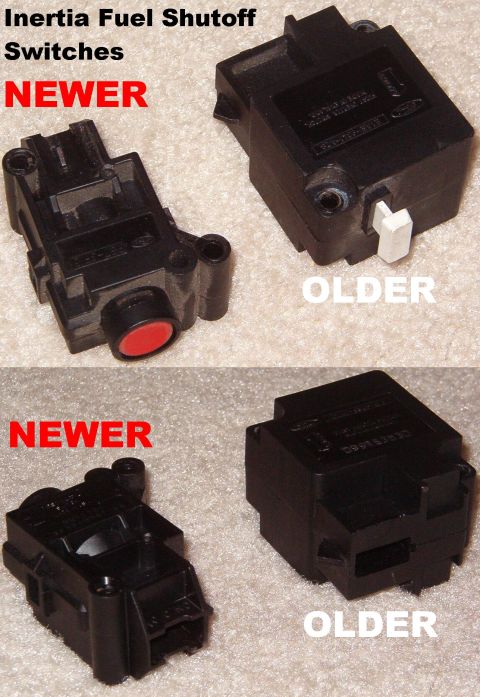

The old switch ('84~89) was installed on the firewall either just forward of the b...](https://www.supermotors.net/getfile/262703/thumbnail/inertiaswitches.jpg) Hits: 12237 Size: 59.21 KB Posted: 11/10/05 Inertia Switches
The old switch ('84~89) was installed on the firewall either just forward of the b... |

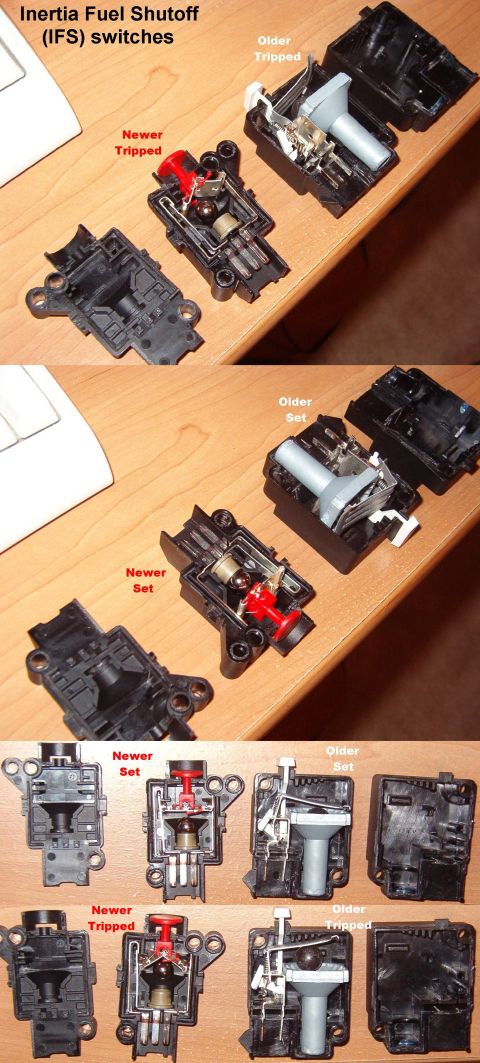

![Inertia Switches cracked open
IF THE IMAGE IS TOO SMALL, click it.
Typical locations for Bronco & F...](https://www.supermotors.net/getfile/262982/thumbnail/inertiaswitchesopen.jpg) Hits: 14100 Size: 47.71 KB Posted: 11/12/05 Inertia Switches cracked open
IF THE IMAGE IS TOO SMALL, click it.
Typical locations for Bronco & F... | ![Inertia Switch new style
[url=http://www.supermotors.net/registry/media/262703][img]http://www.supe...](https://www.supermotors.net/getfile/178340/thumbnail/inertia-switch-2.jpg) Hits: 9721 Size: 22.35 KB Posted: 2/17/05 Inertia Switch new style
[url=http://www.supermotors.net/registry/media/262703][img]http://www.supe... | !['92-96 Inertia Switch

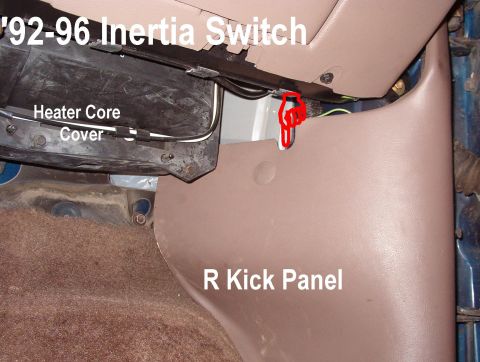

Push in notch to reset. Remove the kick panel & pry the red button up throug...](https://www.supermotors.net/getfile/767953/thumbnail/inertia9297.jpg) Hits: 12029 Size: 58.53 KB Posted: 11/14/09 '92-96 Inertia Switch
Push in notch to reset. Remove the kick panel & pry the red button up throug... | ![92-93 Inertia Fuel Shutoff Switch Reset Indicator
[url=http://www.supermotors.net/vehicles/registry...](https://www.supermotors.net/getfile/1096359/thumbnail/ifs-indicator.jpg) Hits: 2335 Size: 51.92 KB Posted: 9/11/16 92-93 Inertia Fuel Shutoff Switch Reset Indicator

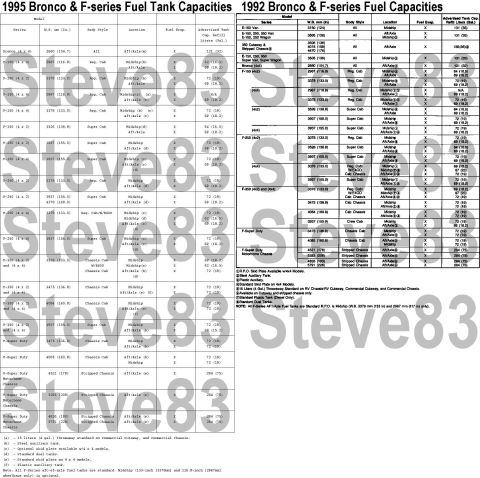

[url=http://www.supermotors.net/vehicles/registry... | ![Fuel Tank Capacity '92 & '95
IF THE IMAGE IS TOO SMALL, click it.
For wheelbase, see this:
[url...](https://www.supermotors.net/getfile/739630/thumbnail/fuelcapacity925.jpg) Hits: 9651 Size: 89.96 KB Posted: 6/25/09 Fuel Tank Capacity '92 & '95
IF THE IMAGE IS TOO SMALL, click it.
For wheelbase, see this:
[url... |
![Fuel Additives
These are what I use when I think my gas trucks need some fuel system maintenance....](https://www.supermotors.net/getfile/1172168/thumbnail/additives.jpg) Hits: 70 Size: 126.22 KB Posted: 3/6/24 Fuel Additives
These are what I use when I think my gas trucks need some fuel system maintenance.... | | | | |
