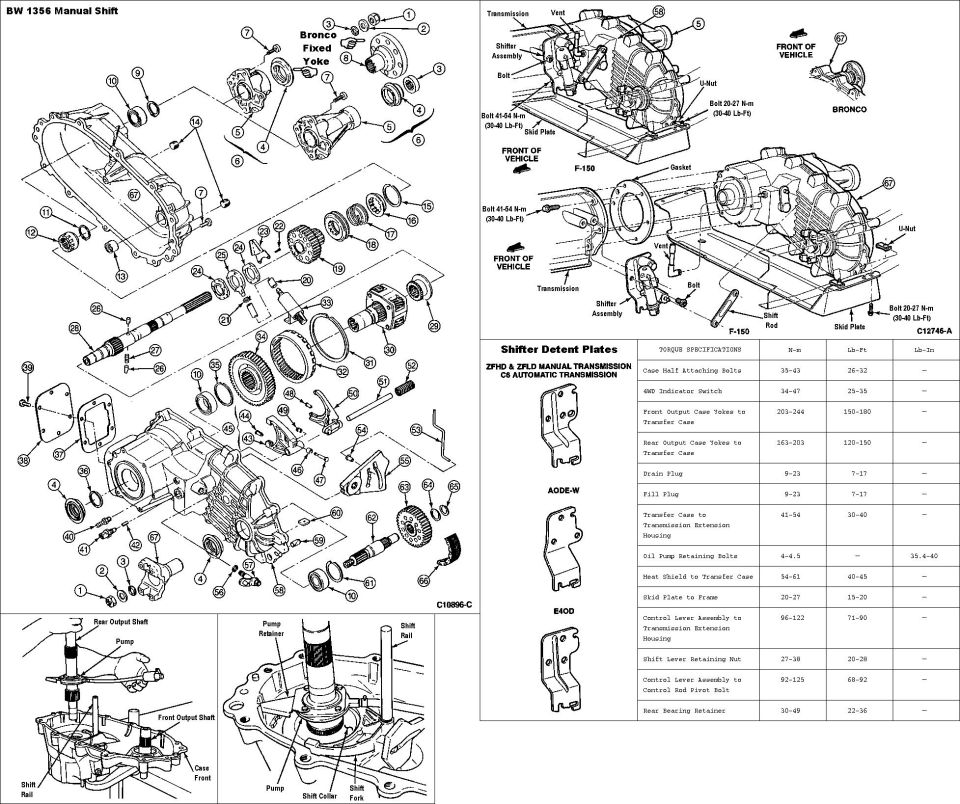

bw1356manshift.jpg BW 1356 Manual (F1TA-7A195-EA) Exploded (shown with [url=https://www.fleet.ford.com/truckbbas/non-html/1997/b53_ps.pdf]optional PTO plate[/url])
IF THE IMAGE IS TOO SMALL, click it.

1  7045  Shaft Nut (163-203Nm, 120-150 lb-ft)
2  7B368  Output Shaft Yoke Washer
3  7052  Oil Seal
4  7B215  Yoke to Flange Seal
5  --   Extension (Rear Spline) Cap, Bearing (Rear Yoke/Flange) (Serviced As Part of 7085 Assembly)
6  7085  Extension Assembly (Rear Spline) Cap Assembly, Bearing (Rear Yoke/Flange)
7  7A443  Bolt and Washer Assembly (30-49Nm, 22-36 lb-ft)
8  --   Flange (Rear Flange) (Serviced As Part of 7B214 Assembly)
9  7917  Ring, Snap
10 7025  Bearing
11 7917  Ring, Snap
12 7100  Shift Collar Hub
13 7127  Caged Needle Bearing
14 7A010  Plug, Pipe (9-23Nm, 7-17 lb-ft)
15 7917  Ring, Retaining
16 7D164  Lockup Hub
17 7D126  Spring, Lockup
18 7106  Lockup Collar
19 7177  Sprocket, Drive
20 7A210  Hose
21 382486-S Clamp, Hose
22 7A291  Pump Housing to Case Bolt (4-4.5Nm, 36-40 lb-in)
23 7E215  Retainer, Pump
24 7A152  Cover, Pump
25 7A149  Housing, Pump
26 7A250  Pin, Pump
27 7A205  Spring, Pump Pin
28 7061  Output Shaft
29 7100  Shift Collar Hub
30 7A398  Front Planet
31 7C122  Ring, Retaining
32 7A153  Ring Gear
33 7A098  Filter, Oil
34 --   Gear, PTO (with PTO Only)
35 7917  Ring, Retaining
36 --   Ring, Retaining (Part of 7B215)
37 7166  Case Deflector Gasket (with PTO Only)
38 7165  Transfer Case Cover (with PTO Only)
39 381673-S Bolt (with PTO Only)
40 7034  Vent
41 7E440  4WD Indicator Switch
42 --   Setscrew (Part of 7E440)
43 --   Fork, Reduction (Serviced As Part of 7289 Assembly)
44 --   Facing, Shift Fork (Serviced As Part of 7289 Assembly)
45 7289  Ford Assembly Reduction
46 7235  Roller, Cam (Service As Part of 7289 Assembly)
47 --   Pin (Part of 7289)
48 7C430  Facing, Shift Fork
49 --   Retainer (Serviced As Part of 7289 Assembly)
50 7289  Fork Assembly, Shift, 2W-4W
51 7240  Shift Rail
52 7219  Shift Fork Spring
53 7C349  Spring, Detent
54 7C191  Bushing, Detent
55 7F063  Cam, Shift
56 7288  Shifter Shaft Seal
57 7B106  Lever, Shaft and Pin Assembly
58 7005  Case Front
59 --   Pin Dowel (Part of 7005)
60 7L027  Oil Pan Magnet
61 7917  Ring, Retaining
62 7061  Output Shaft
63 7177  Sprocket, Driven
64 7119  Thrust Washer
65 7917  Ring, Retaining
66 7A029  Chain, Drive
67 --   Yoke (Serviced As Part of 7B214 Assembly)
68 7005  Case Rear

F2TZ-7210-K  4X4 Shifter Assembly (Mazda R2, ZFLD)
F2TZ-7210-N  4X4 Shifter Assembly (E4OD)
F2TZ-7210-P  4X4 Shifter Assembly (T18, C6, AOD, ZFHD)
F2TZ-7B051-A Control Rod (Mazda R2, ZFLD 7.25" OC)
F2TZ-7B051-B Control Rod (ZFHD)
F2TZ-7B051-C Control Rod (T18, C6)
F2TZ-7B051-D Control Rod (AOD)
F2TZ-7B051-E Control Rod (E4OD)

The ZF/C6 shifter detent plate also fits the Mazda M5OD-R2.

See also:

[url=https://www.supermotors.net/registry/media/425678][img]https://www.supermotors.net/getfile/425678/thumbnail/tcase.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/506632][img]https://www.supermotors.net/getfile/506632/thumbnail/tcaseshifter92.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/478074][img]https://www.supermotors.net/getfile/478074/thumbnail/tcshifter88bw1345.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/937277][img]https://www.supermotors.net/getfile/937277/thumbnail/pump11.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/261554][img]https://www.supermotors.net/getfile/261554/thumbnail/tcasemechshift.jpg[/img][/url] . [url=https://www.supermotors.net/vehicles/registry/media/773280][img]https://www.supermotors.net/getfile/773280/thumbnail/bw1356id.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/687488][img]https://www.supermotors.net/getfile/687488/thumbnail/bw1356pto.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/937321][img]https://www.supermotors.net/getfile/937321/thumbnail/tcaseshifter87sliding.jpg[/img][/url]

For electric-shift-on-the-fly, see this:
[url=https://www.supermotors.net/vehicles/registry/media/469461][img]https://www.supermotors.net/getfile/469461/thumbnail/bw1356esof.jpg[/img][/url]
bw1356manshift.jpg | Hits: 26101 | Posted on: 10/2/05 | View original size (636.69 KB)

BW 1356 Manual (F1TA-7A195-EA) Exploded (shown with optional PTO plate)
IF THE IMAGE IS TOO SMALL, click it.

1 7045 Shaft Nut (163-203Nm, 120-150 lb-ft)
2 7B368 Output Shaft Yoke Washer
3 7052 Oil Seal
4 7B215 Yoke to Flange Seal
5 -- Extension (Rear Spline) Cap, Bearing (Rear Yoke/Flange) (Serviced As Part of 7085 Assembly)
6 7085 Extension Assembly (Rear Spline) Cap Assembly, Bearing (Rear Yoke/Flange)
7 7A443 Bolt and Washer Assembly (30-49Nm, 22-36 lb-ft)
8 -- Flange (Rear Flange) (Serviced As Part of 7B214 Assembly)
9 7917 Ring, Snap
10 7025 Bearing
11 7917 Ring, Snap
12 7100 Shift Collar Hub
13 7127 Caged Needle Bearing
14 7A010 Plug, Pipe (9-23Nm, 7-17 lb-ft)
15 7917 Ring, Retaining
16 7D164 Lockup Hub
17 7D126 Spring, Lockup
18 7106 Lockup Collar
19 7177 Sprocket, Drive
20 7A210 Hose
21 382486-S Clamp, Hose
22 7A291 Pump Housing to Case Bolt (4-4.5Nm, 36-40 lb-in)
23 7E215 Retainer, Pump
24 7A152 Cover, Pump
25 7A149 Housing, Pump
26 7A250 Pin, Pump
27 7A205 Spring, Pump Pin
28 7061 Output Shaft
29 7100 Shift Collar Hub
30 7A398 Front Planet
31 7C122 Ring, Retaining
32 7A153 Ring Gear
33 7A098 Filter, Oil
34 -- Gear, PTO (with PTO Only)
35 7917 Ring, Retaining
36 -- Ring, Retaining (Part of 7B215)
37 7166 Case Deflector Gasket (with PTO Only)
38 7165 Transfer Case Cover (with PTO Only)
39 381673-S Bolt (with PTO Only)
40 7034 Vent
41 7E440 4WD Indicator Switch
42 -- Setscrew (Part of 7E440)
43 -- Fork, Reduction (Serviced As Part of 7289 Assembly)
44 -- Facing, Shift Fork (Serviced As Part of 7289 Assembly)
45 7289 Ford Assembly Reduction
46 7235 Roller, Cam (Service As Part of 7289 Assembly)
47 -- Pin (Part of 7289)
48 7C430 Facing, Shift Fork
49 -- Retainer (Serviced As Part of 7289 Assembly)
50 7289 Fork Assembly, Shift, 2W-4W
51 7240 Shift Rail
52 7219 Shift Fork Spring
53 7C349 Spring, Detent
54 7C191 Bushing, Detent
55 7F063 Cam, Shift
56 7288 Shifter Shaft Seal
57 7B106 Lever, Shaft and Pin Assembly
58 7005 Case Front
59 -- Pin Dowel (Part of 7005)
60 7L027 Oil Pan Magnet
61 7917 Ring, Retaining
62 7061 Output Shaft
63 7177 Sprocket, Driven
64 7119 Thrust Washer
65 7917 Ring, Retaining
66 7A029 Chain, Drive
67 -- Yoke (Serviced As Part of 7B214 Assembly)
68 7005 Case Rear

F2TZ-7210-K 4X4 Shifter Assembly (Mazda R2, ZFLD)
F2TZ-7210-N 4X4 Shifter Assembly (E4OD)
F2TZ-7210-P 4X4 Shifter Assembly (T18, C6, AOD, ZFHD)
F2TZ-7B051-A Control Rod (Mazda R2, ZFLD 7.25" OC)
F2TZ-7B051-B Control Rod (ZFHD)
F2TZ-7B051-C Control Rod (T18, C6)
F2TZ-7B051-D Control Rod (AOD)
F2TZ-7B051-E Control Rod (E4OD)

The ZF/C6 shifter detent plate also fits the Mazda M5OD-R2.
