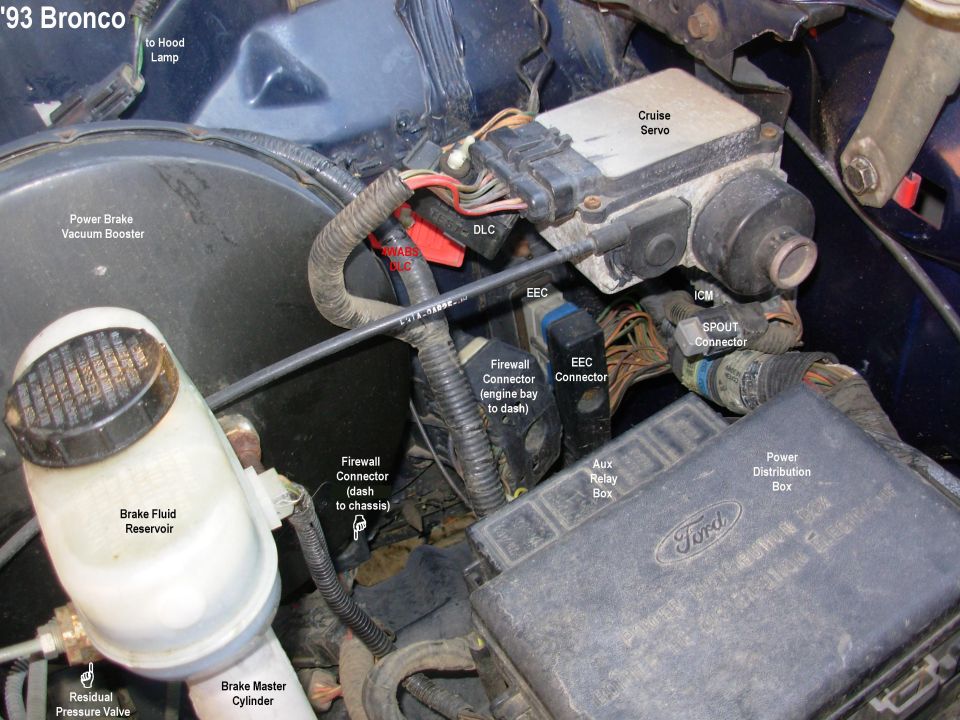

enginebay93lhr.jpg '93-95 Bronco Engine Bay LHR
IF THE IMAGE IS TOO SMALL, click it.

This cruise servo was only used from '93-04.
Only '93-96 Broncos have 4WABS.
'96-up DLC is under the dash.

To remove the EEC, back out the 10mm bolt recessed in the center of its connector, set the connector aside, remove the 2 11mm nuts (above & below), then pull the EEC & its weather seal straight forward into the engine bay.  It may be necessary to bend the plastic wheelwell liner to make room.
