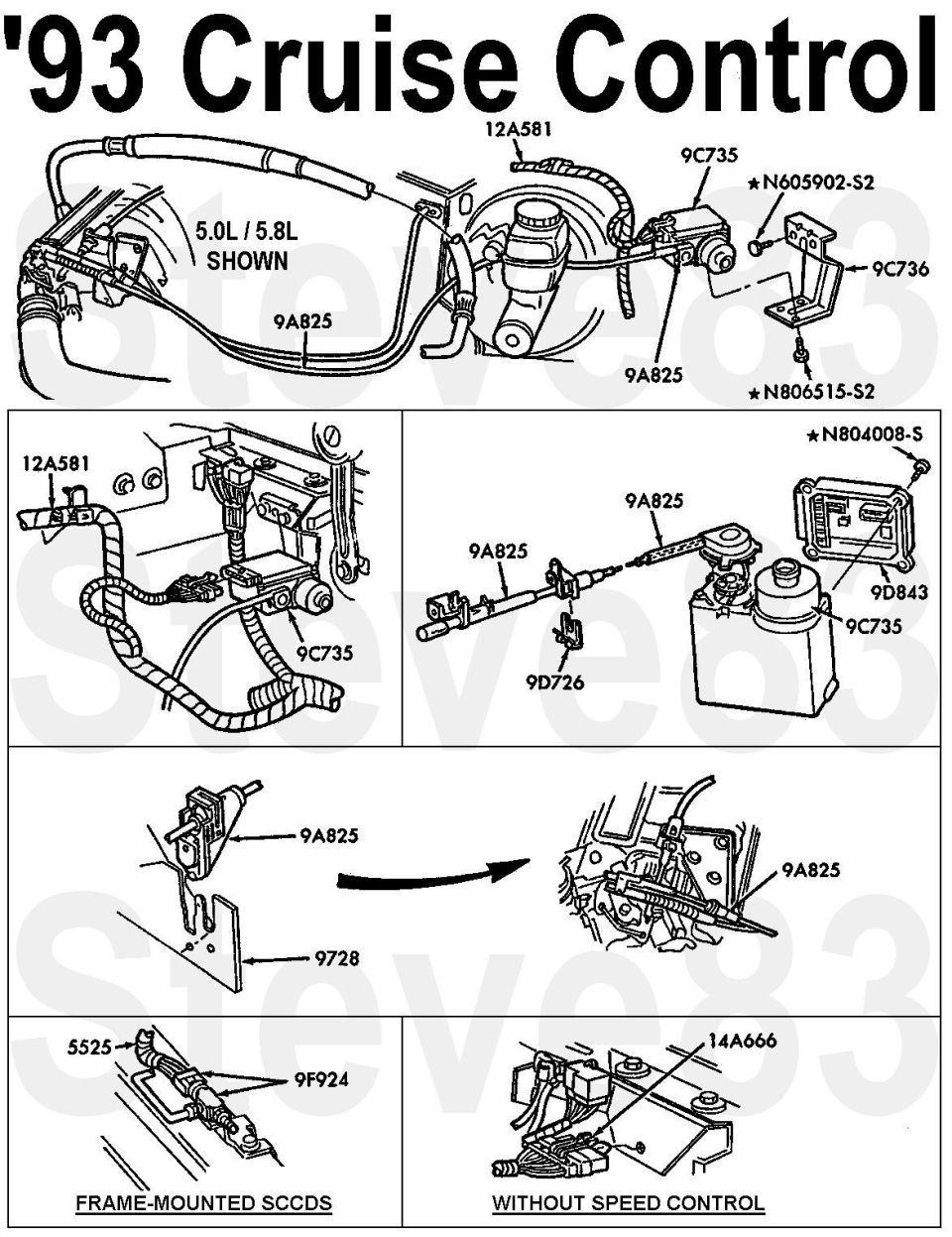

1993 cruise control component diagram for 5.0L/5.8L

'93 Cruise Control System (Electronic Servo)

Cable Adjustment
1. Remove cable retaining clip (9D726) from actuator cable at accelerator shaft bracket (9728 ).
2. Set throttle plate to closed position.
3. Pull on the actuator cable (away from the clip, toward the servo) to take up any slack. Back off at least one notch so that there is 1mm (.040 inch) of slack in the cable. The cable must not be pulled tight for proper operation.
4. While holding the cable, insert the retaining clip and snap securely.



The only difference between '93 and '94-96 is that the SCCDS was moved to the front of the master cylinder, which resulted in some fires & a massive ongoing recall.

. . . .
