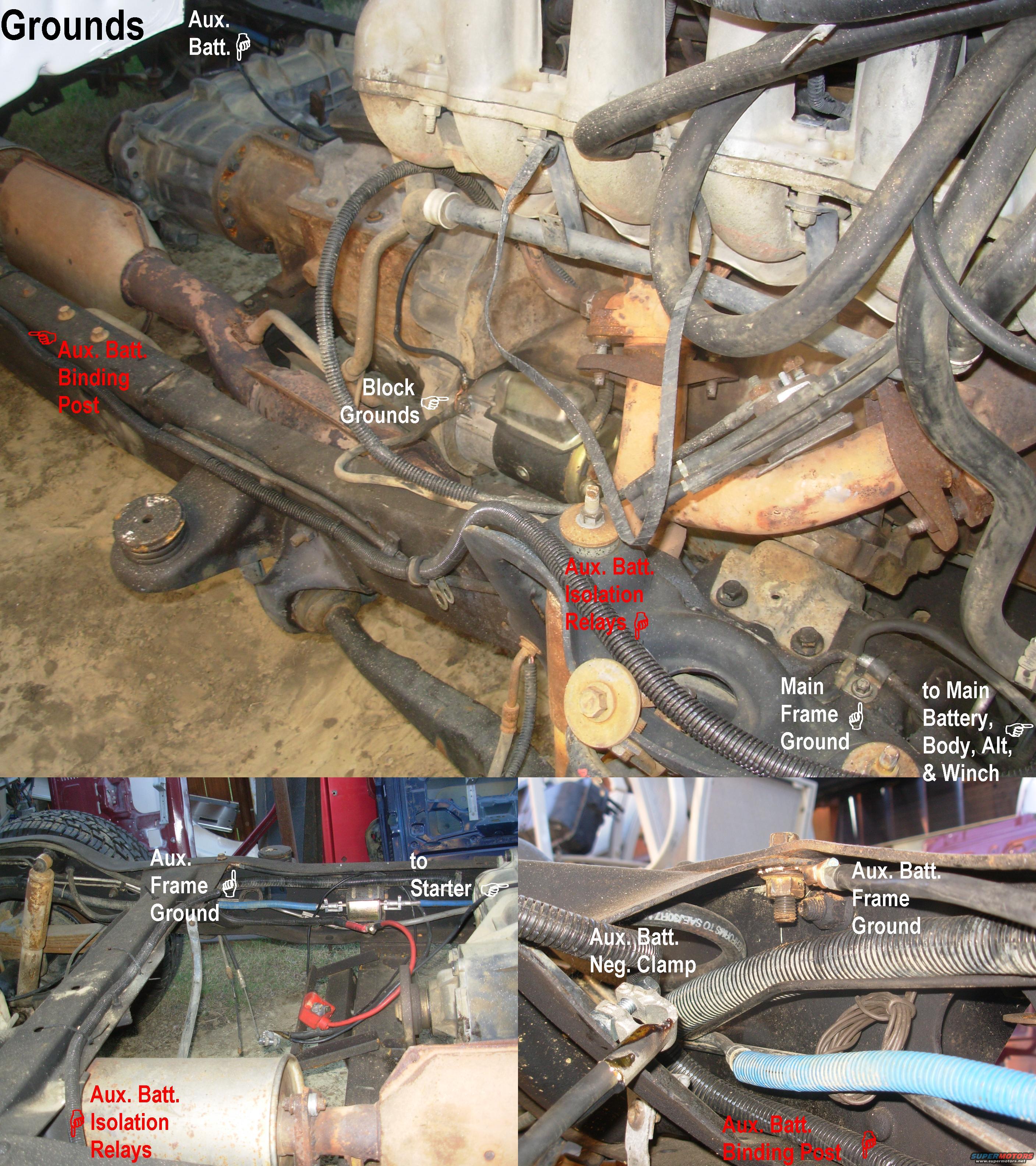

The grounds for the 2 batteries are tied together at the block (starter), and each has extra grounds soldered to the battery clamp for high-current accessories.
