1990 Ford Bronco

documented by cupcake 59 photos documented since 1 years documented ♡ Follow this build

Photos

1990 Ford Bronco: As I first got it 1990 Ford Bronco: relocated o/d switch 1990 Ford Bronco: small cooler 2 3/4 x 11 1990 Ford Bronco: medium cooler 5 1/2 x 11 1990 Ford Bronco: big cooler 7 1/2 x 11 1990 Ford Bronco: small cooler relocated and used for a power steering cooler 1990 Ford Bronco: Standard ford ttb knuckle. WIth the caliper, rotor and axle removed. This is the point where you can forget t… 1990 Ford Bronco: ttb knuckle with the ears cut off, Still more grinding to do. 1990 Ford Bronco: different angle 1990 Ford Bronco: Be sure to check the inner spindle bearings, they get overlooked and mine were toast, this is the chevy spind… 1990 Ford Bronco: This is the bearing, same part ford or chevy, part number 2110 1990 Ford Bronco: Spindle clamped to backing plate to locate holes for drilling. 1990 Ford Bronco: The chevy axle has bolts at 12/6 o'clock and the ford has 3/9 o'clock. So to keep the calipers in the stock l… 1990 Ford Bronco: Inner FORD axle, outer CHEVY stub. New u-joint part number 297X same ford or chevy and new inner spindle seal… 1990 Ford Bronco: This is about how much grinding I had to do on the knuckles. Used the longer chevy spindle studs. You can onl… 1990 Ford Bronco: Same as above, yes there is alot to grind. 1990 Ford Bronco: Everything mounted, used the ford hoses after drilling banjo hole just alittle bigger to accept the chevy ban… 1990 Ford Bronco: Now bled everything. Did a F250 master cylinder as well. As it needed one and why not upgrade. 1990 Ford Bronco: Late 70's 3/4 ton all steel spicer lockouts are huge 1990 Ford Bronco: 33x12.50x16.5. Finished and no alignment needed. Now to do the rear. 1990 Ford Bronco: late 70's 3/4t spicer compared to 1/2t warn/ford 1990 Ford Bronco: Start of bumper build and F150 tow hooks 1990 Ford Bronco: Start of bumper build and F150 tow hooks 1990 Ford Bronco: stock bumber without brackets 60# 1990 Ford Bronco: Relocated tow hooks and filler plate added 1990 Ford Bronco: Had a leaky ball flange on the new headers. And no one makes a ball flange seal/gasket. 1990 Ford Bronco: This is what I used. 1990 Ford Bronco: And this is where I got it 1990 Ford Bronco: Making the bushing. 1990 Ford Bronco: Welding bushing to bolt on tab 1990 Ford Bronco: Tab welded to jig base, and bushing bolted on 1990 Ford Bronco: Beam end parts 1990 Ford Bronco: Beam end finised and welded to base Welded steel bracket and threaded bolt on a fabricated frame Welded steel mounting bracket with U-bolts on a vehicle frame crossmember 1990 Ford Bronco: Shown holding the angles and distances Black metal bar attached to a metal frame on a wooden block 1990 Ford Bronco: License plate brackets added, now its finished. For now 1990 Ford Bronco: And as of today 1990 Ford Bronco: Standard ford/warn manual hubs
Browse all 59 photos

Albums · 9

How the owner organised this build. Open an album for every photo in it.

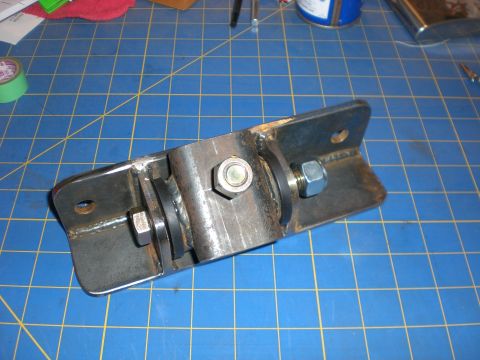

90 bronco - 1990 Ford Bronco 90 bronco 8 photos coolers - 1990 Ford Bronco 90 bronco / coolers 4 photos radius arm jig build - 1990 Ford Bronco 90 bronco / radius arm jig build 9 photos 8 lug fronts - 1990 Ford Bronco 90 bronco / 8 lug fronts 15 photos bumper build - 1990 Ford Bronco 90 bronco / bumper build 5 photos exhaust fix - 1990 Ford Bronco 90 bronco / exhaust fix 3 photos hub ID pics - 1990 Ford Bronco 90 bronco / hub ID pics 9 photos urethane motor/trans mounts - 1990 Ford Bronco 90 bronco / urethane motor/trans mounts 4 photos cheapo K&N - 1990 Ford Bronco 90 bronco / cheapo K&N 2 photos
