1989 Bronco EVTM

From 1990 Ford Bronco “Eddie Bauer”, documented by SeattleFSB.

10 photos
← Back to this vehicle

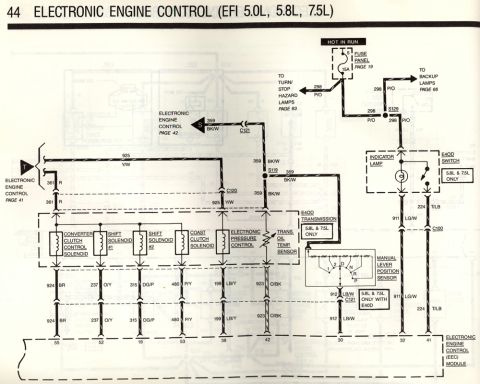

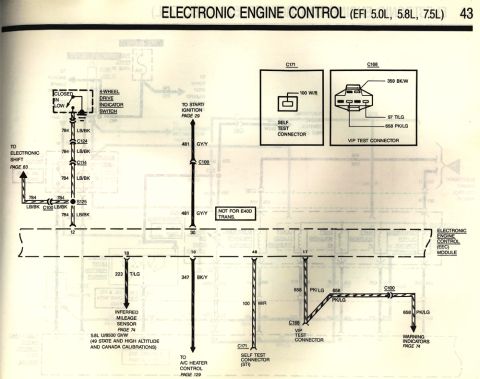

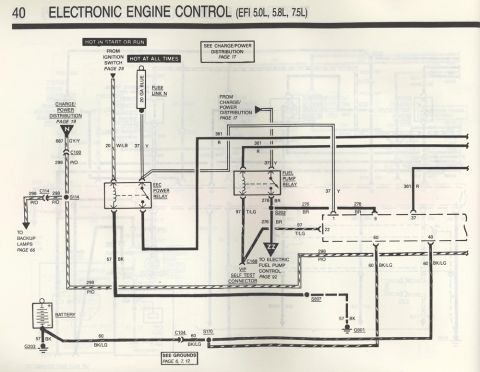

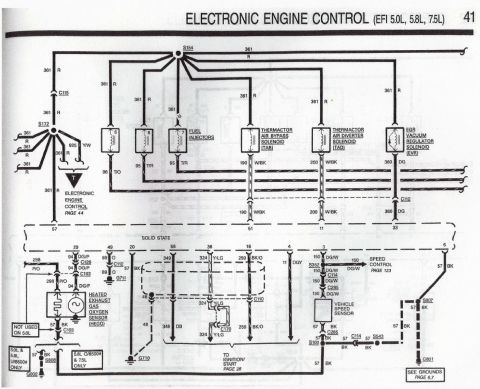

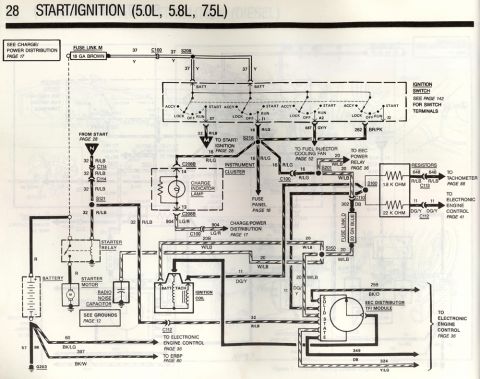

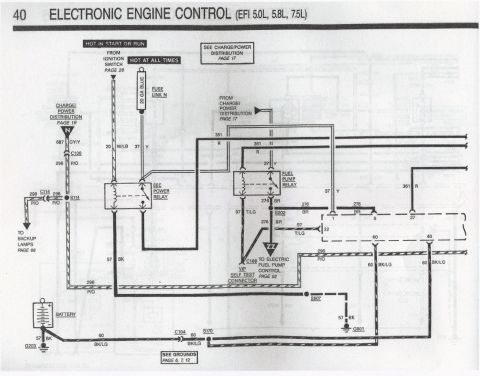

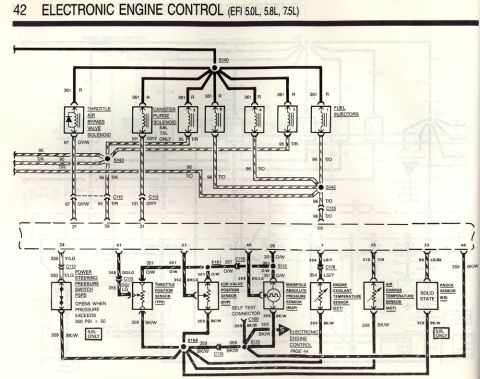

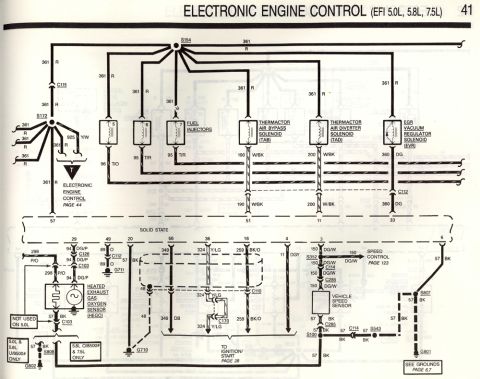

1990 Ford Bronco - Wiring diagram of the start/ignition system showing ignition switch terminals, starter relay, TFI module, and charge circuits. 1990 Ford Bronco - Wiring diagram of EEC power relay, fuel pump relay, and battery feed circuits for EFI 5.0L/5.8L/7.5L engines. 1990 Ford Bronco - Wiring diagram showing fuel injector, thermactor air bypass/diverter, EGR vacuum regulator, and oxygen sensor circuits. 1990 Ford Bronco - Wiring diagram of sensor circuits including TPS, MAP, ECT, ACT, knock and power-steering pressure sensors with color codes. 1990 Ford Bronco - Wiring diagram showing 4WD indicator switch, self-test/VIP connectors, and warning-indicator circuits for the EEC module. 1990 Ford Bronco - Wiring diagram showing EEC electronic engine control circuits, transmission solenoids, and E4OD components with color-coded wires. 1990 Ford Bronco - Page 40 1990 Ford Bronco - Page 41 1990 Ford Bronco - Wiring diagram of single-tank electric fuel pump control circuits, inertia switch, and fuel-gauge sender for Bronco and F-Series. 1990 Ford Bronco - Connector pinout diagram identifying STO/CEL (pin 17), Fuel Pump (pin 22), SIGRTN (pin 46) and STI (pin 48) EEC terminals.
