Electrical & Vacuum Troubleshooting Manual 1979

From 1979 Ford Bronco “Black Betty”, documented by vrewald14.

48 photos
← Back to this vehicle

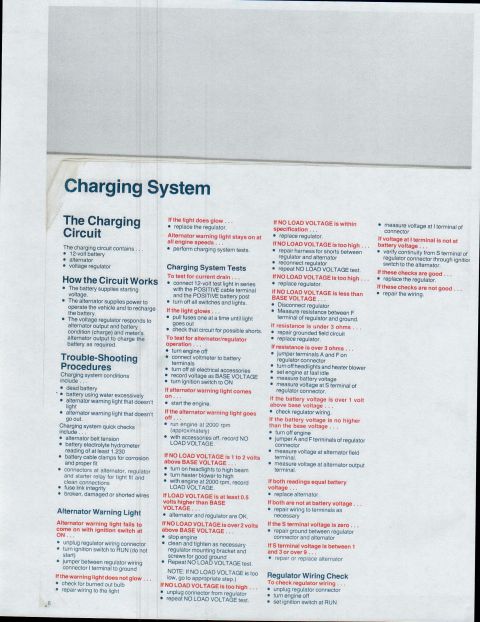

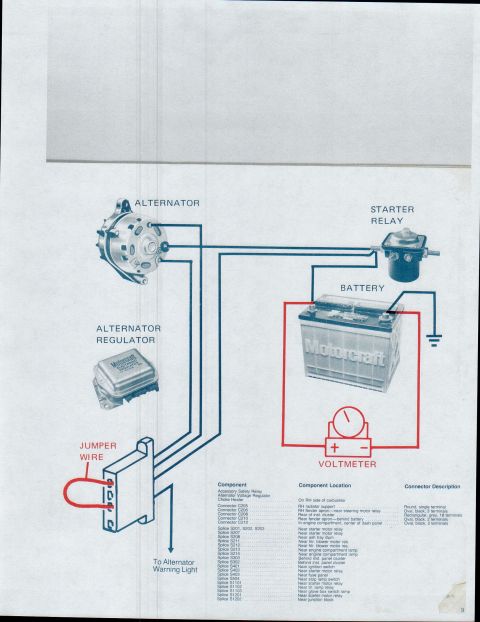

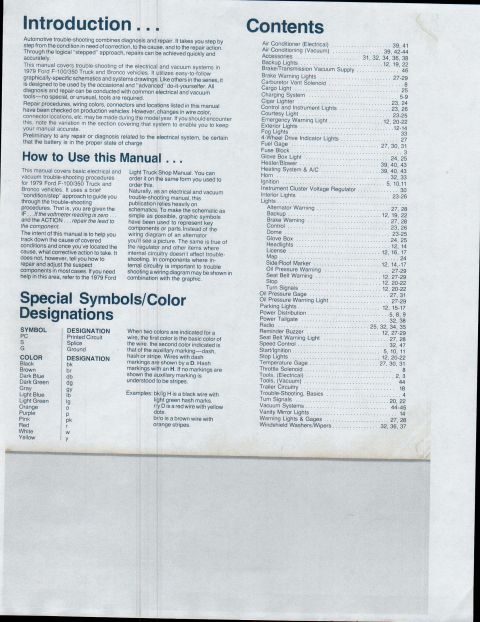

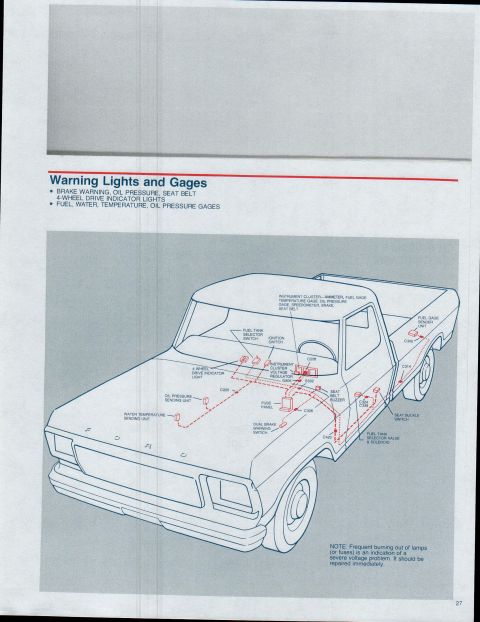

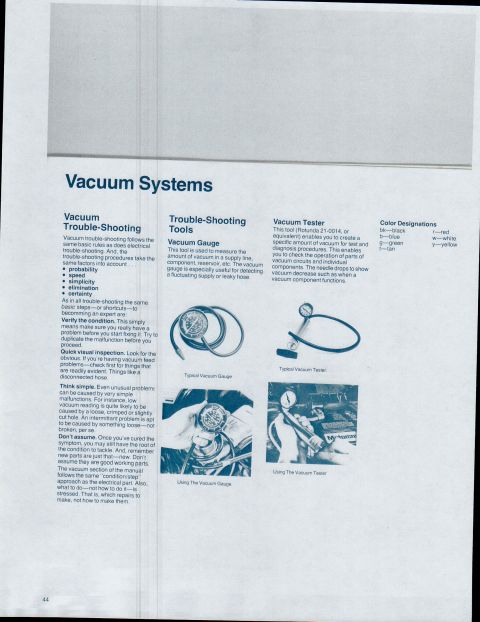

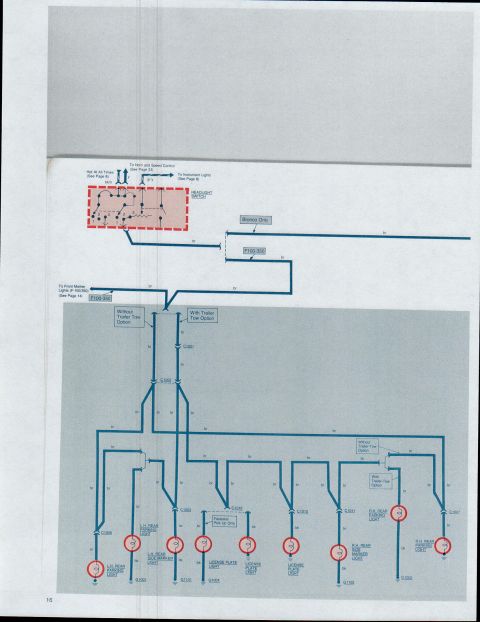

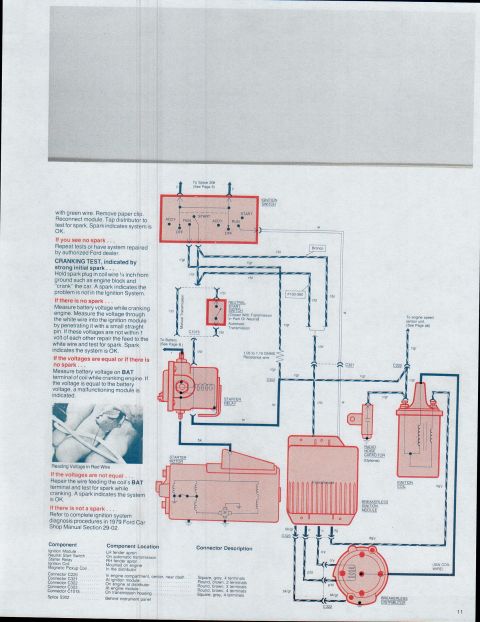

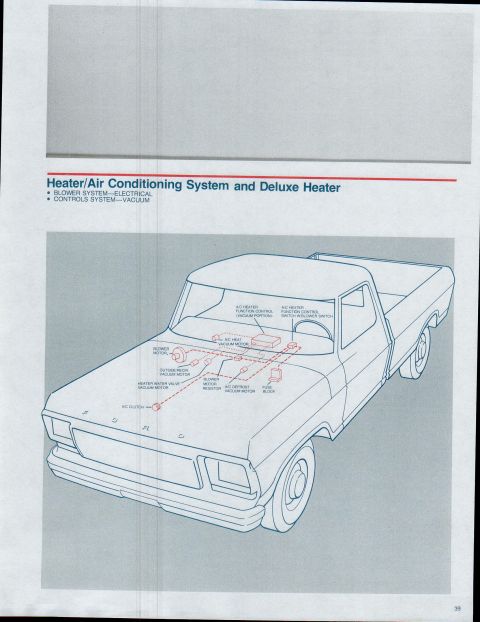

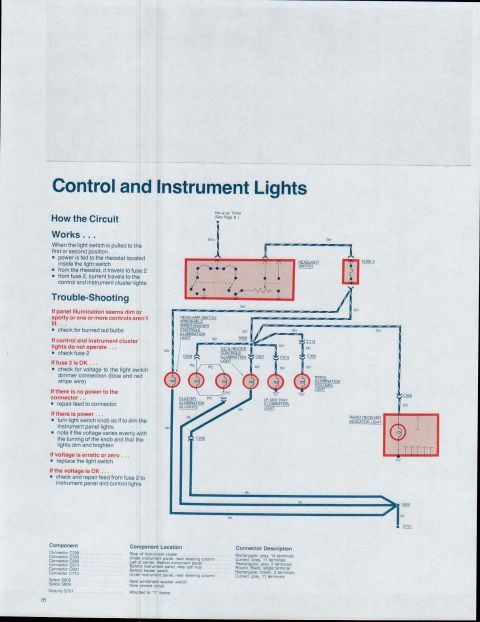

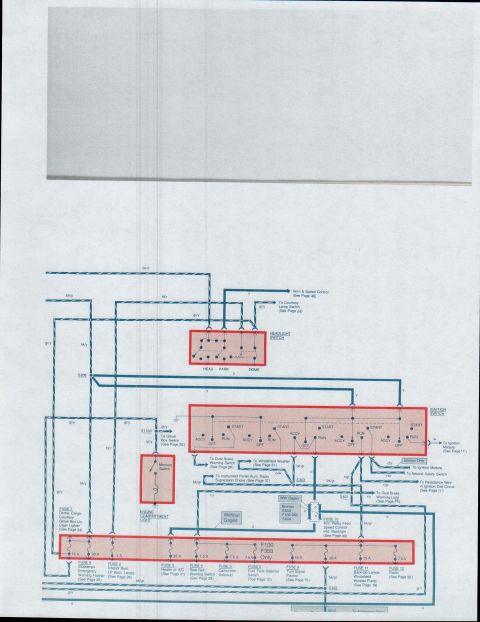

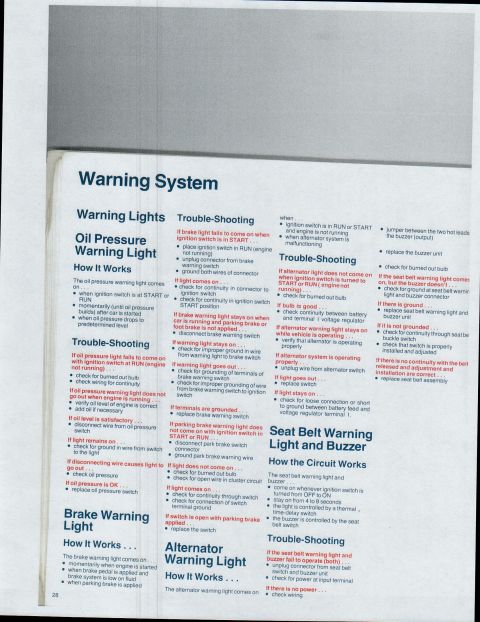

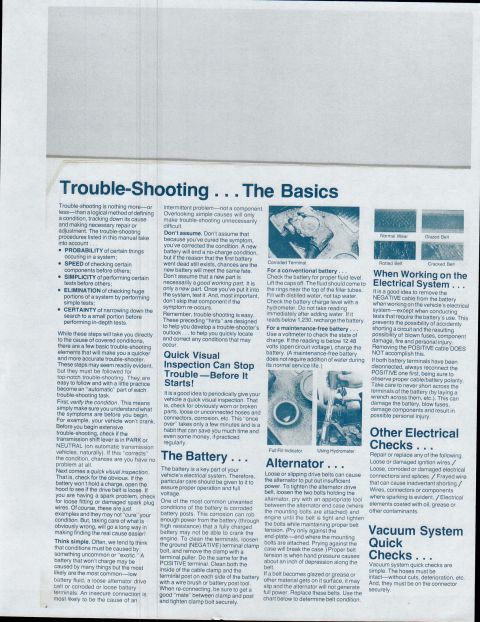

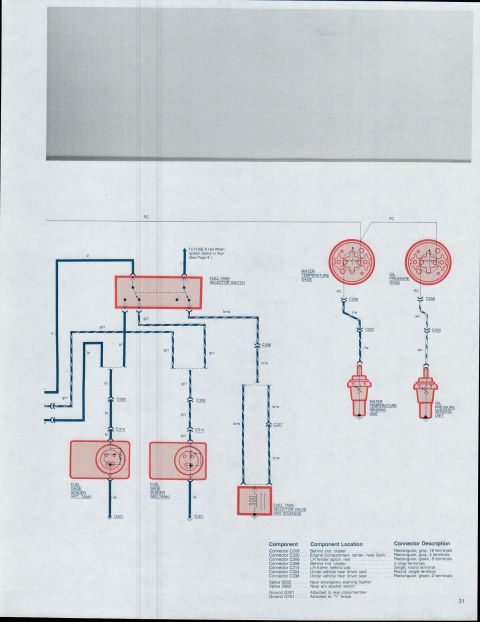

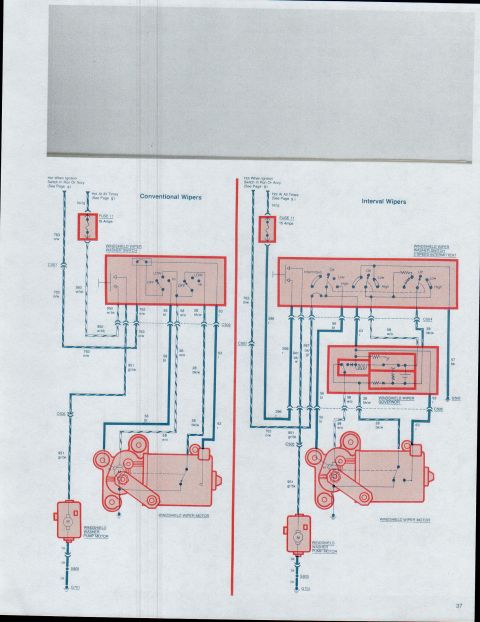

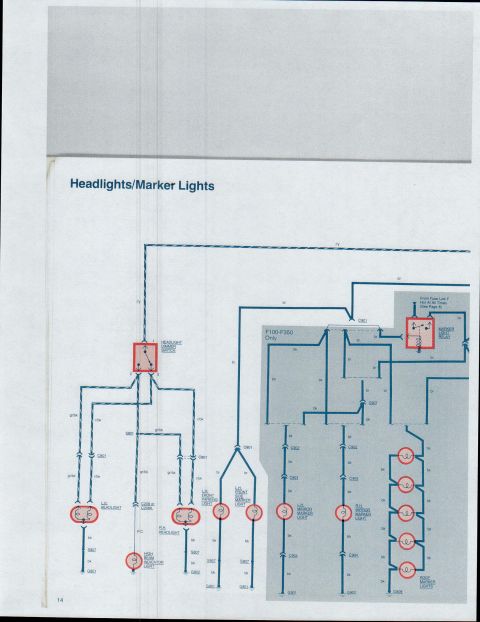

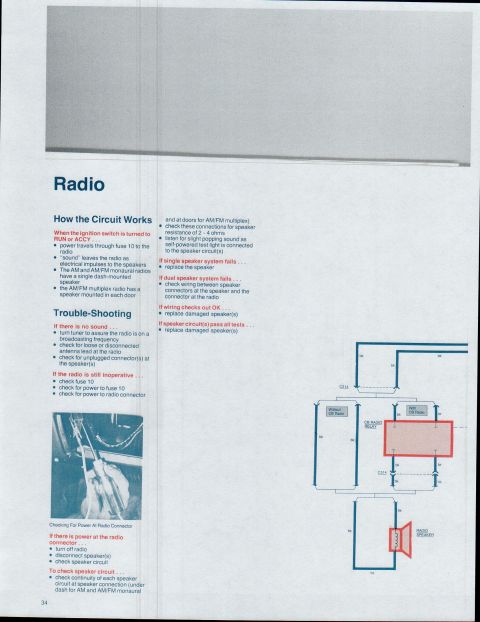

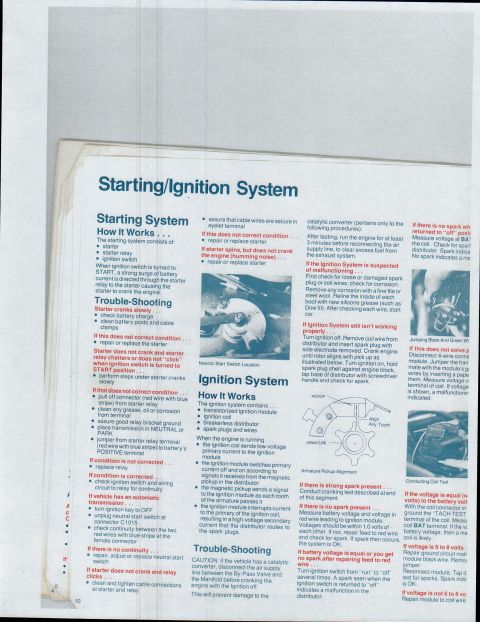

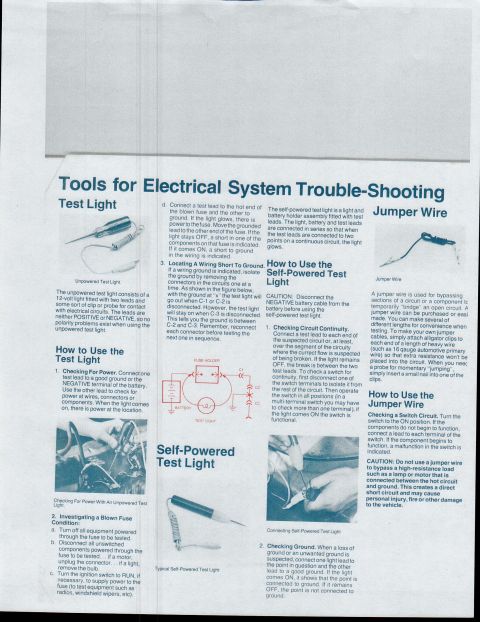

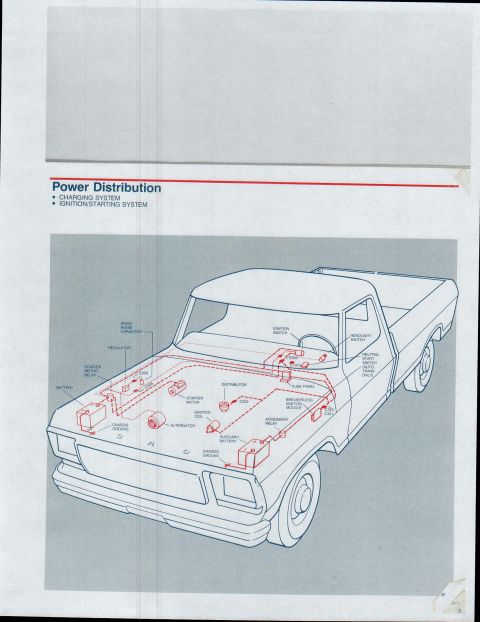

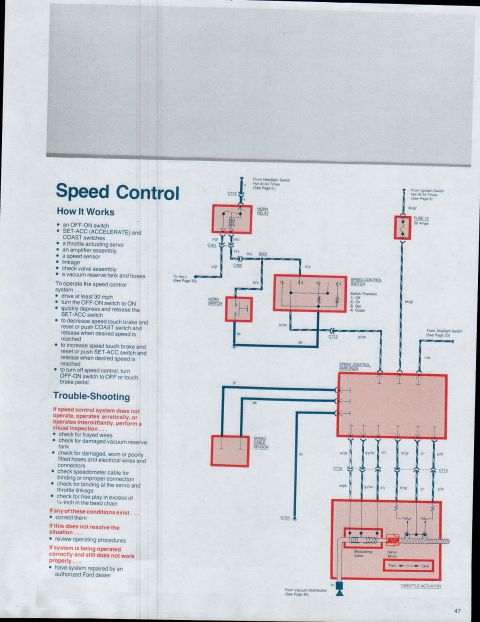

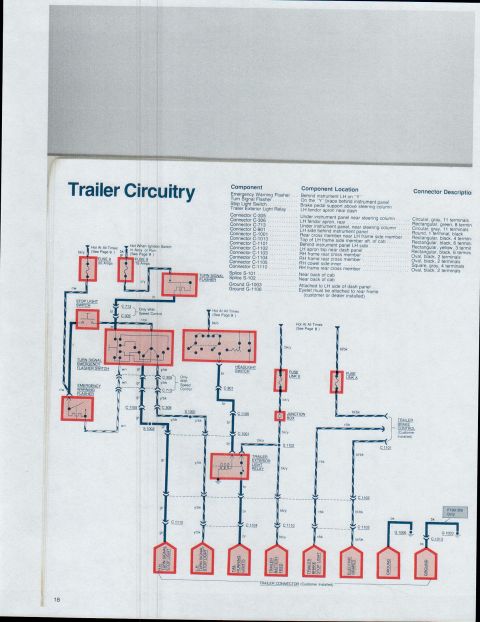

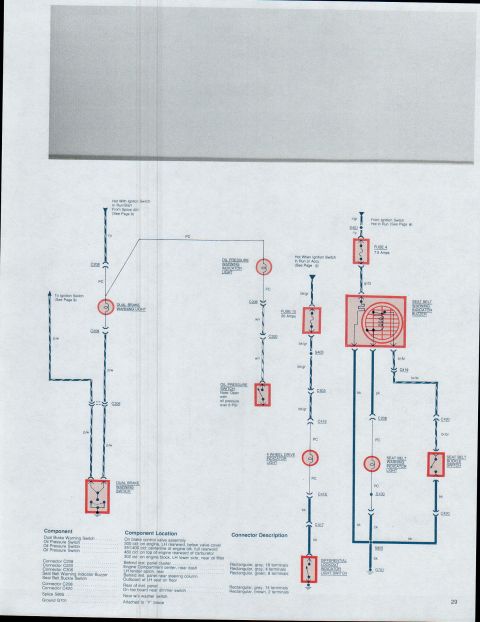

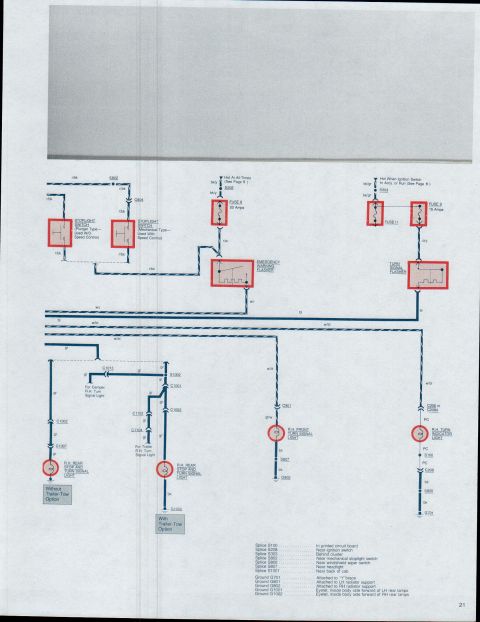

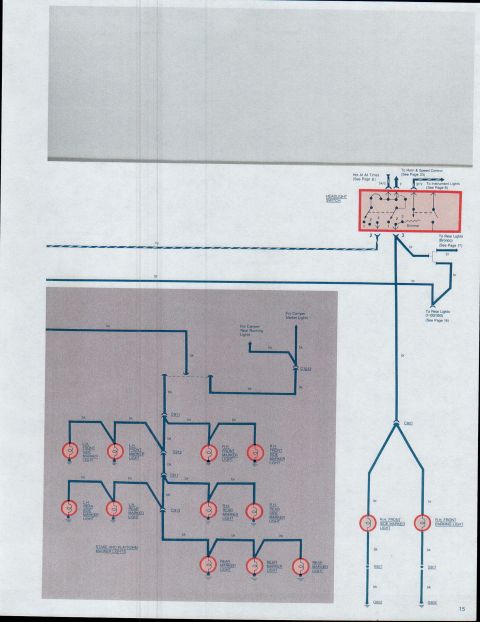

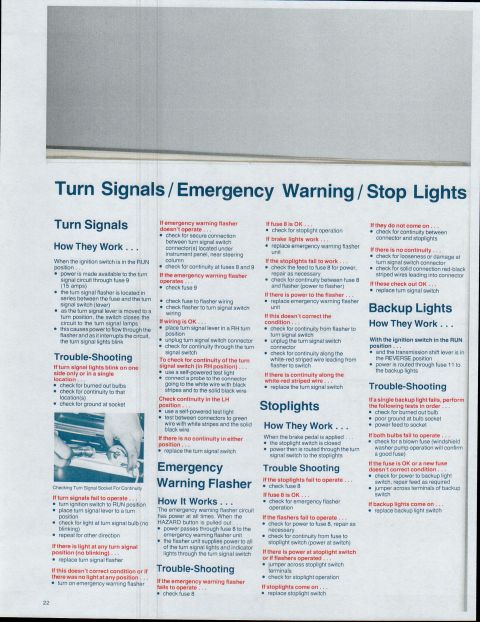

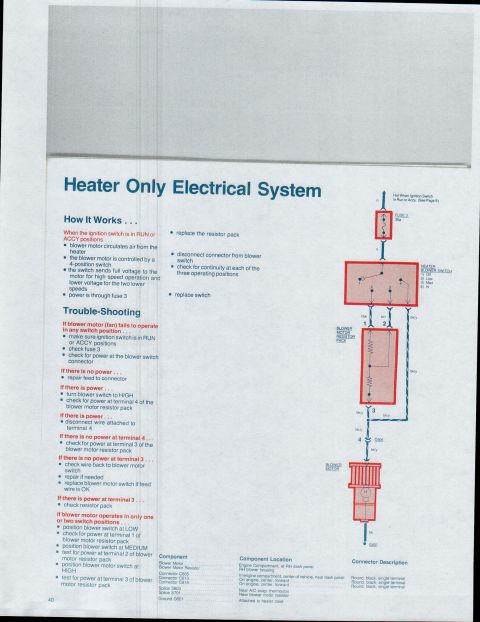

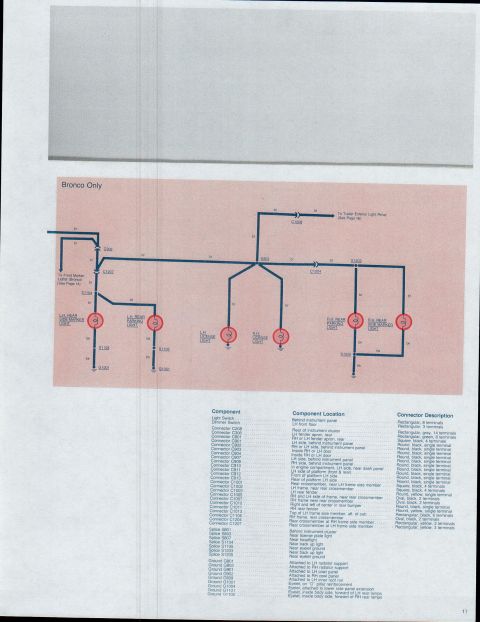

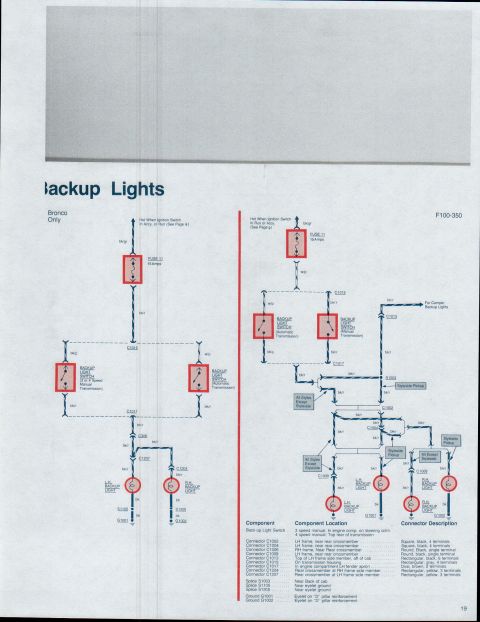

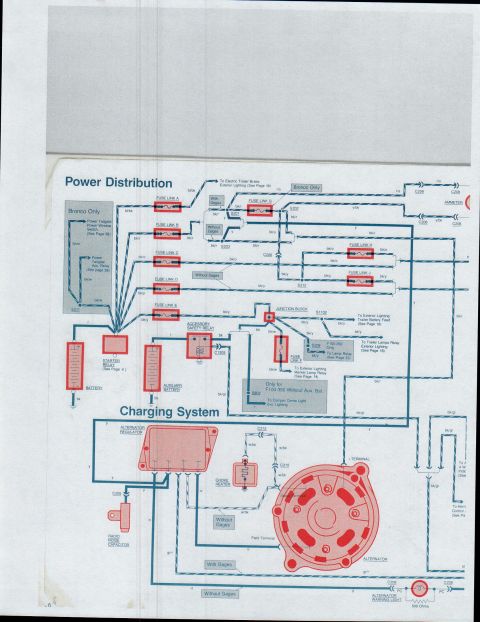

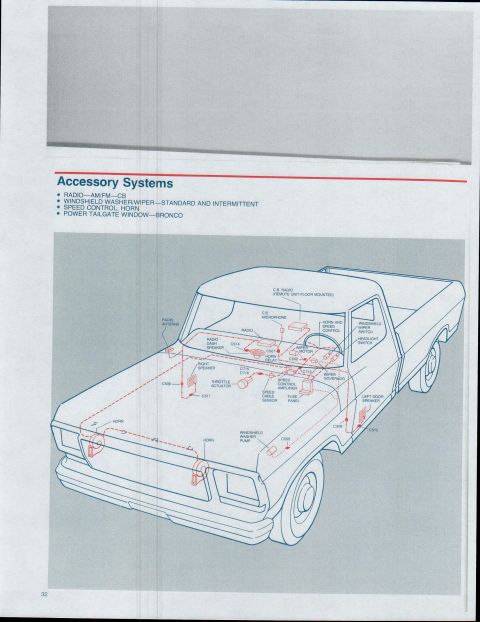

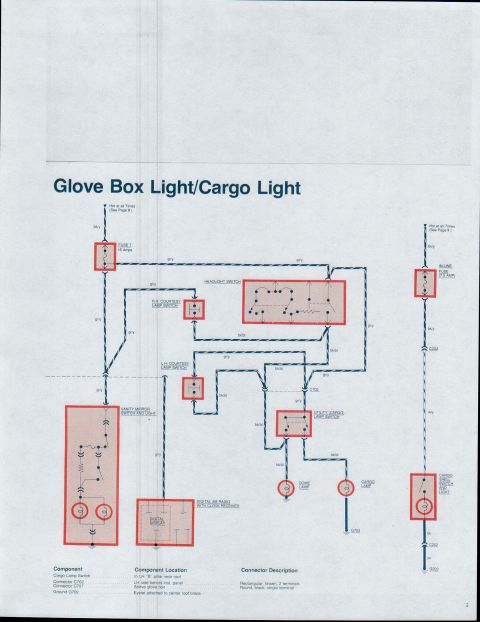

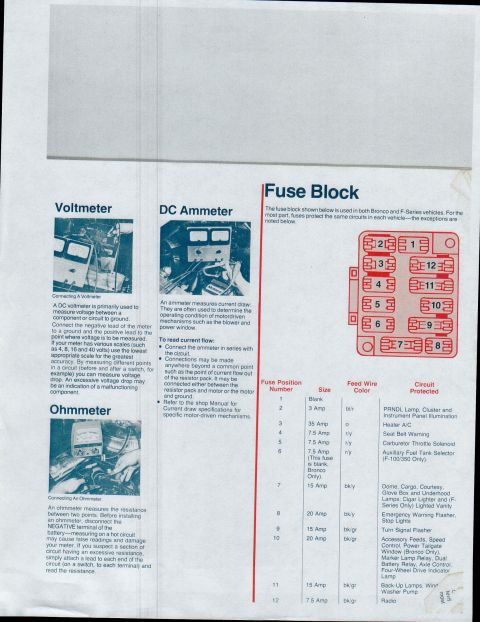

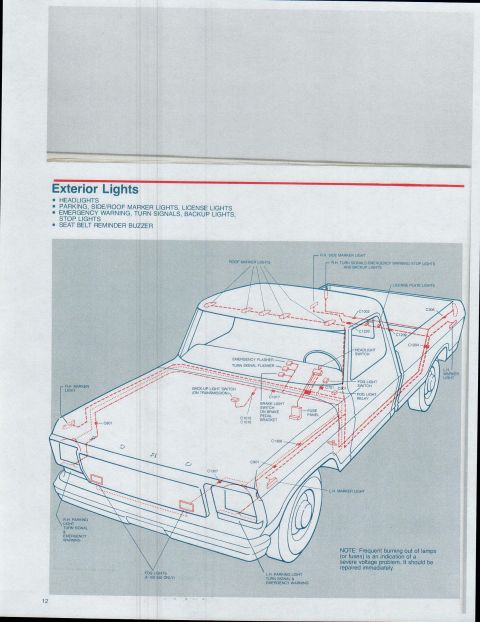

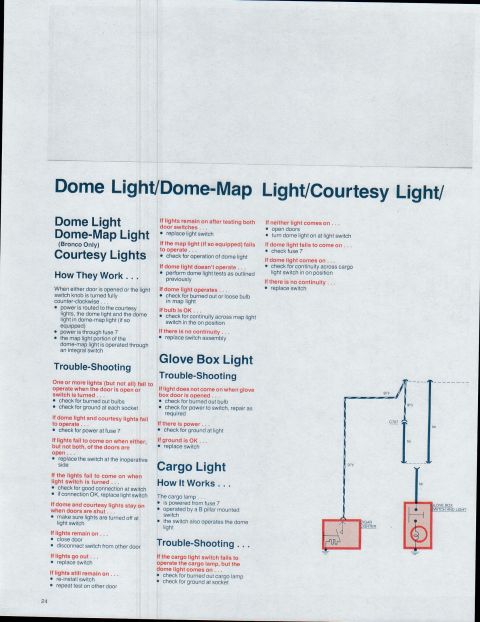

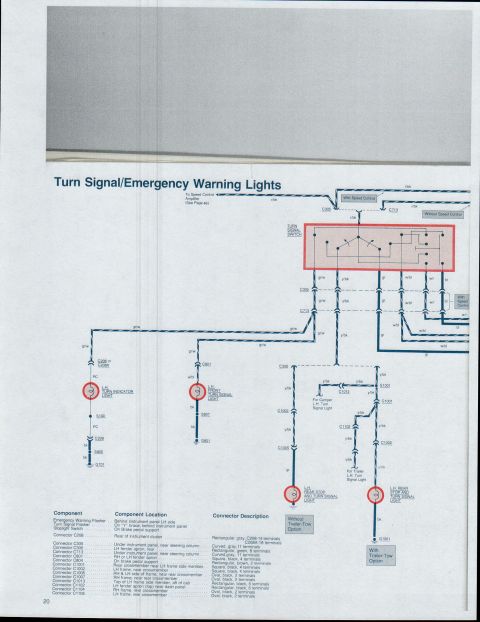

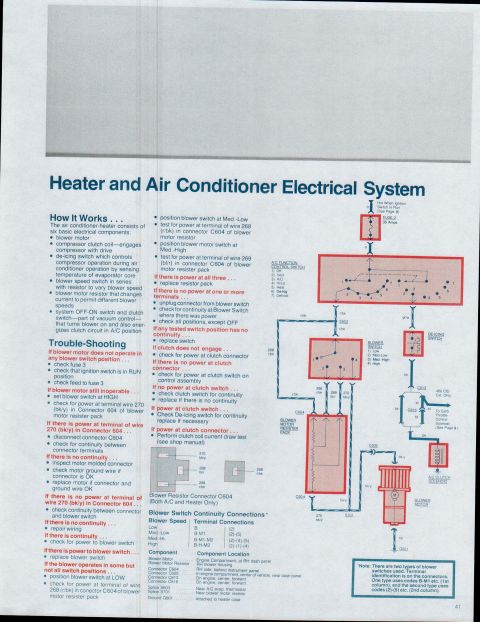

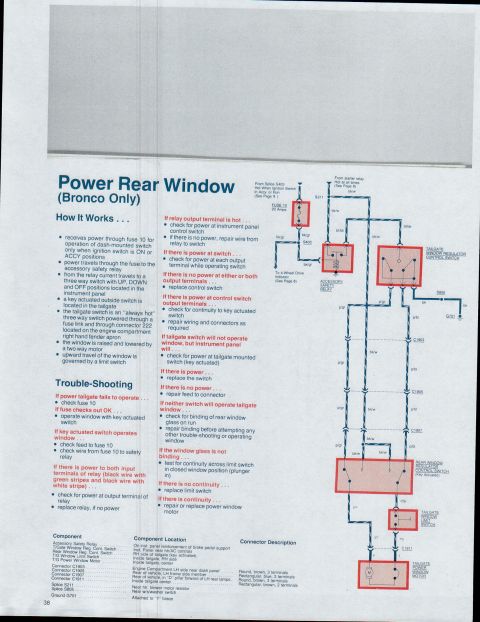

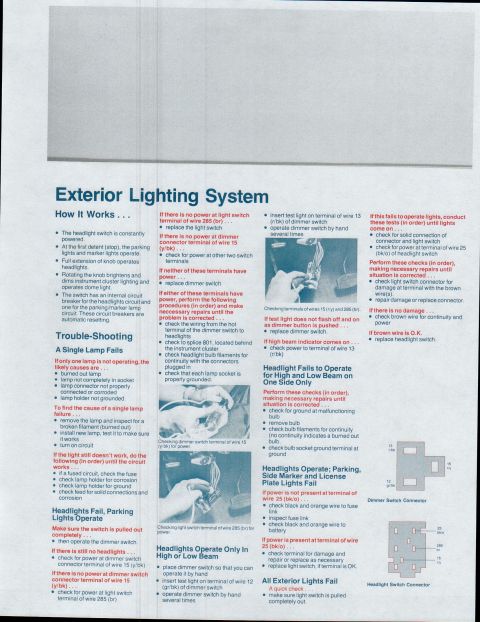

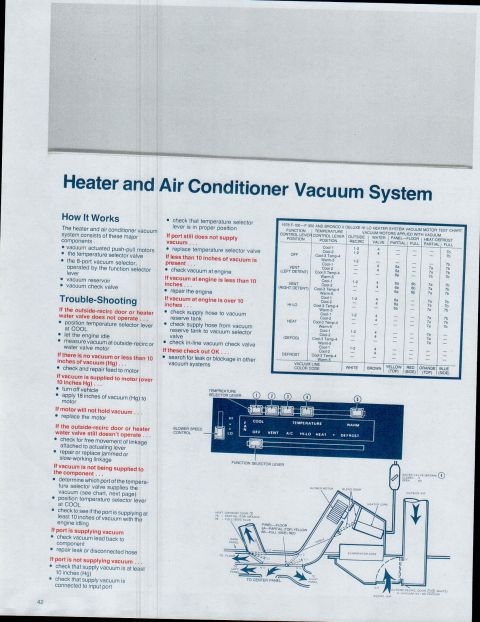

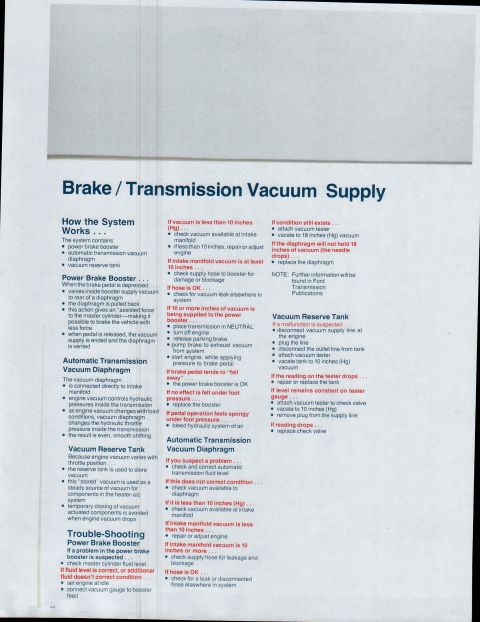

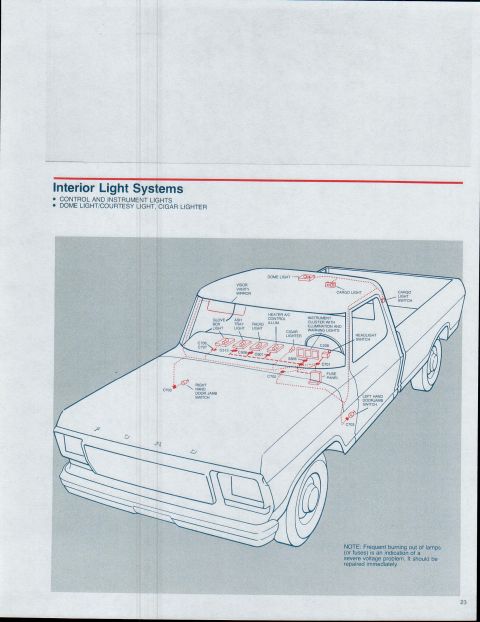

1979 Ford Bronco - Cover of the 1979 Bronco and F100/350 Electrical & Vacuum Troubleshooting Manual, illustrated with a Ford technician and test equipment. 1979 Ford Bronco - Introduction and contents page from the 1979 F-100/350 Truck and Bronco troubleshooting manual, with wire color abbreviations and system pa… 1979 Ford Bronco - This document provides information on tools for electrical system troubleshooting, specifically focusing on test lights and jumper wires. I… 1979 Ford Bronco - This is a page from a manual discussing vehicle trouble-shooting, specifically focusing on the battery and electrical system. It includes d… 1979 Ford Bronco - Power distribution locator view showing battery, starter relay, regulator, alternator, ignition coil, distributor and fuse panel on a 1979… 1979 Ford Bronco - This is a document titled "Charging System" which details the components, tests, and troubleshooting procedures for a vehicle's charging sy… 1979 Ford Bronco - This is a wiring diagram showing the electrical connections between the alternator, alternator regulator, starter relay, battery, and voltm… 1979 Ford Bronco - Wiring diagram of power distribution and charging system showing fuse links, starter relay, junction block, alternator regulator and Bronco… 1979 Ford Bronco - This is a wiring diagram for a 1979 Ford Bronco, showing the electrical system components and their connections. 1979 Ford Bronco - This is a page from a repair manual detailing the Starting/Ignition System. It includes diagrams and troubleshooting steps. 1979 Ford Bronco - This is a wiring diagram for a 1979 Ford vehicle, detailing the ignition system components and connections. The diagram includes the igniti… 1979 Ford Bronco - Exterior lights component locator showing headlamps, parking, side/roof marker, license, turn, emergency, backup and stop lights plus seat… 1979 Ford Bronco - This is a page from a manual detailing the exterior lighting system of a vehicle. It includes diagrams and troubleshooting steps for headli… 1979 Ford Bronco - This is a wiring diagram for Headlights/Marker Lights. It shows various components like headlight dimmer switch, headlights, parking lights… 1979 Ford Bronco - This is a wiring diagram showing the lighting system for a vehicle, including headlights, marker lights, and rear lights. The diagram detai… 1979 Ford Bronco - This is a wiring diagram for a 1979 Ford Bronco and F100-350, detailing the headlight switch and trailer tow options. 1979 Ford Bronco - This is a wiring diagram for a Bronco. It shows the electrical connections for various lights and components. 1979 Ford Bronco - This is a wiring diagram for trailer circuitry. It details components, their locations, and connector descriptions. 1979 Ford Bronco - This is a wiring diagram for the backup lights on a 1979 Ford Bronco and F100-350. It details the electrical components and their connectio… 1979 Ford Bronco - This is a wiring diagram for the Turn Signal/Emergency Warning Lights system. It details the connections for various components including t… 1979 Ford Bronco - This is a wiring diagram for a vehicle's electrical system, detailing components such as stoplights, turn signals, and emergency flashers.… 1979 Ford Bronco - This is a page from a manual detailing the operation and troubleshooting of turn signals, emergency warning flashers, and stoplights. It in… 1979 Ford Bronco - Interior light systems locator showing control and instrument lights, dome/courtesy lights, cargo light, door jamb switches and cigar light… 1979 Ford Bronco - This is a document page with text and a wiring diagram related to dome lights, map lights, courtesy lights, glove box lights, and cargo lig… 1979 Ford Bronco - This is a wiring diagram for the Glove Box Light/Cargo Light system. It details the components, their locations, and connector descriptions. 1979 Ford Bronco - This is a wiring diagram for the control and instrument lights of a vehicle. It details how the circuit works and provides troubleshooting… 1979 Ford Bronco - Warning lights and gages locator showing brake, oil pressure, seat belt and 4WD indicators plus fuel, water temperature and oil pressure ga… 1979 Ford Bronco - This is a page from a vehicle's owner's manual detailing the warning system, including lights for oil pressure, brake, and alternator, alon… 1979 Ford Bronco - This is a wiring diagram for a vehicle's electrical system, detailing components like ignition switches, fuses, and warning lights. 1979 Ford Bronco - This image contains a document detailing the operation and troubleshooting of fuel and temperature gauges for a 1979 Ford Bronco. The docum… 1979 Ford Bronco - This is a wiring diagram for a 1979 Ford Bronco, showing the fuel tank selector switch, fuel sending units, fuel tank injector valve, and r… 1979 Ford Bronco - Pictorial component location diagram over a Ford pickup outline showing accessory system parts: radio, CB, wiper, speed control actuator, h… 1979 Ford Bronco - Wiring diagram page showing horn and fog-lamp circuits with relays, switches, connectors, and component locations. 1979 Ford Bronco - Service manual radio page describing how the circuit works (power through fuse 10 in RUN/ACCY) plus trouble-shooting steps for no sound and… 1979 Ford Bronco - Radio wiring schematic showing the 7.5A fused feed in RUN/ACCY to AM/AM-FM monaural dash speaker and AM/FM stereo door speakers, with a com… 1979 Ford Bronco - This is a page from a manual detailing the windshield wiper and washer system, including troubleshooting steps and connector diagrams. 1979 Ford Bronco - Wiring diagram page showing conventional and interval windshield wiper circuits with wiper motors, switches, and governor. 1979 Ford Bronco - Bronco-only power rear window page with how-it-works text and wiring schematic: fuse 10 feed through accessory safety relay to the tailgate… 1979 Ford Bronco - Heater/air conditioning and deluxe heater locator showing blower motor and resistor, vacuum motors, A/C clutch and function control switch,… 1979 Ford Bronco - This is a diagram of the Heater Only Electrical System, detailing how it works and troubleshooting steps. It includes a schematic of the bl… 1979 Ford Bronco - This is a diagram of the Heater and Air Conditioner Electrical System. It includes a flowchart of the system's components and wiring, along… 1979 Ford Bronco - This is a page from a manual detailing the operation and troubleshooting of a heater and air conditioner vacuum system. It includes diagram… 1979 Ford Bronco - This is a diagram of the Deluxe Heater and Heater-A/C Vacuum System. It shows the vacuum lines and components of the system, including the… 1979 Ford Bronco - This document page discusses vacuum systems and troubleshooting tools, including vacuum gauges and testers. It also lists color designation… 1979 Ford Bronco - This is a diagram illustrating vacuum distribution for a vehicle. It shows connections to air conditioning, automatic transmission, vacuum… 1979 Ford Bronco - This is a document detailing the "Brake / Transmission Vacuum Supply" system, including how it works, troubleshooting for the power brake b… 1979 Ford Bronco - This is a wiring diagram for a Speed Control system, detailing its components and how they are interconnected. The diagram includes section… 1979 Ford Bronco - Bronco and F-Series fuse block layout with fuse position, amp size, feed wire color and circuit protected, beside voltmeter, ammeter and oh…
